概述

听书是融合内容服务、音频播放与系统交互的综合场景。本文介绍如何采用ArkTS和C++混合开发模式，使用OHAudio原生音频引擎实现高品质音频播放。应用支持本地播放、投播、后台播放、播控中心等完整功能，并针对音频焦点管理与低功耗播放等场景进行深度优化。

听书架构简介

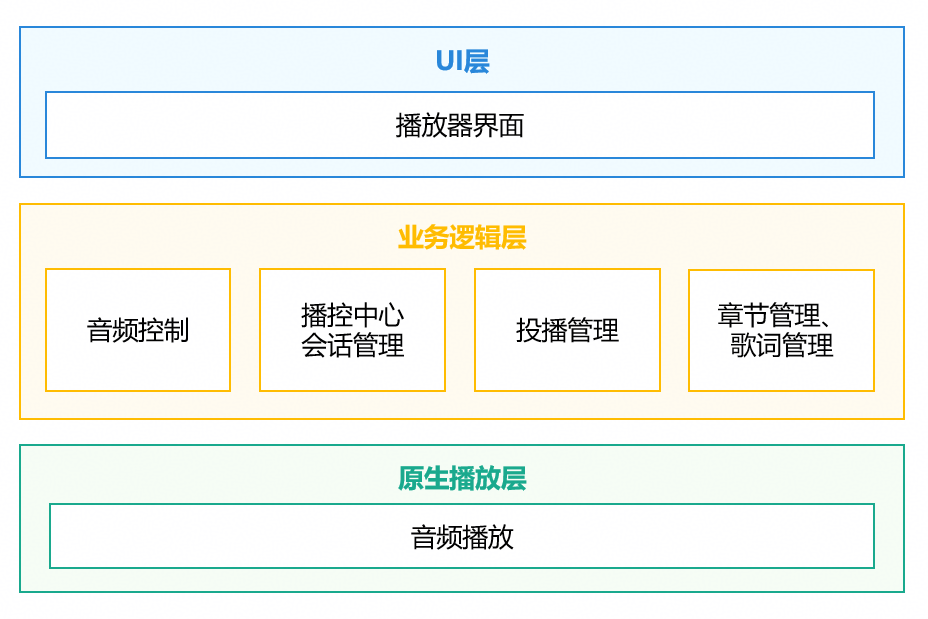

应用采用分层架构设计，分为三层：UI层、业务逻辑层、原生播放层，如下图所示。

UI层：负责界面展示和用户交互，包括播放器页面、章节列表、歌词显示、控制按钮等组件。

业务逻辑层：核心业务管理模块，包含音频控制、播控中心会话管理、投播管理、章节管理、歌词管理。

音频控制：统一管理播放控制、状态同步、章节切换。
播控中心会话管理：管理播控中心会话、媒体元数据、控制命令。
投播管理：管理投播设备连接、投播控制命令。
章节管理和歌词管理：管理章节列表、章节构建、歌词加载和解析。

原生播放层：C++实现的音频播放模块，包括音频播放控制。

音频播放：封装OHAudio渲染器，实现音频数据填充和播放控制。

基于OHAudio播放电子书音频

场景描述

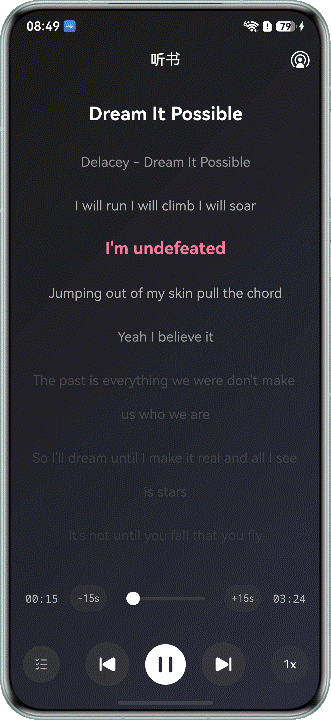

音频播放是听书场景的基础功能，支持播放控制、进度拖拽跳转、设置倍速等操作，播放效果图如下所示。

实现原理

开发者通过OH_AudioStreamBuilder_Create()创建音频流构造器实例，设置OH_AudioStreamBuilder_SetRendererWriteDataCallback()音频数据写入的回调函数，通过OH_AudioStreamBuilder_GenerateRenderer()创建输出音频流实例。通过OH_AudioRenderer_Start()、OH_AudioRenderer_Pause()、OH_AudioRenderer_Stop()、OH_AudioRenderer_Release()接口实现音频的播放、暂停、停止和退出操作。

开发步骤

1.创建输出音频流实例。通过OH_AudioStreamBuilder_Create()创建rendererBuilder对象，设置音频流的采样率、通道数、采样格式、编码类型等属性。然后，通过OH_AudioStreamBuilder_GenerateRenderer()创建输出音频流实例。

void OHAudioPlayer::InitPlayer() {
    if ((audioRenderer != nullptr) || (rendererBuilder != nullptr) || (audioBookFileInfo != nullptr)) {
        OH_LOG_INFO(LOG_APP, "Previous audio player or builder or fileInfo remained and release it.");
        ReleasePlayer();
    }

    OH_AudioStream_Type streamType = AUDIOSTREAM_TYPE_RENDERER;
    auto ret = OH_AudioStreamBuilder_Create(&rendererBuilder, streamType);
    if (ret != AUDIOSTREAM_SUCCESS) {
        OH_LOG_ERROR(LOG_APP, "Create stream builder failed, ret: %{public}d", ret);
        return;
    }

    audioBookFileInfo = new AudioBookFileInfo();

    (void)OH_AudioStreamBuilder_SetSamplingRate(rendererBuilder, AudioConstants::SAMPLE_RATE);
    (void)OH_AudioStreamBuilder_SetChannelCount(rendererBuilder, AudioConstants::CHANNEL_COUNT);
    (void)OH_AudioStreamBuilder_SetSampleFormat(rendererBuilder, AUDIOSTREAM_SAMPLE_S16LE);
    (void)OH_AudioStreamBuilder_SetEncodingType(rendererBuilder, AUDIOSTREAM_ENCODING_TYPE_RAW);
    (void)OH_AudioStreamBuilder_SetRendererInfo(rendererBuilder, AUDIOSTREAM_USAGE_AUDIOBOOK);
    (void)OH_AudioStreamBuilder_SetRendererInterruptCallback(rendererBuilder, OnAudioInterruptEvent, nullptr);
    (void)OH_AudioStreamBuilder_SetRendererErrorCallback(rendererBuilder, OnAudioErrorEvent, nullptr);
    (void)OH_AudioStreamBuilder_SetRendererOutputDeviceChangeCallback(rendererBuilder, OnAudioOutputDeviceChangeEvent, nullptr);
    (void)OH_AudioStreamBuilder_SetRendererWriteDataCallback(rendererBuilder, OnAudioRendererWriteDataEvent,
                                                                reinterpret_cast<void *>(audioBookFileInfo));

    ret = OH_AudioStreamBuilder_GenerateRenderer(rendererBuilder, &audioRenderer);
    if (ret != AUDIOSTREAM_SUCCESS) {
        OH_LOG_ERROR(LOG_APP, "Create audio renderer failed, ret: %{public}d", ret);
        ReleasePlayer();
    }
    OH_AudioSession_Strategy strategy = {
        .concurrencyMode = CONCURRENCY_DEFAULT
    };
    // 4 = PAUSE_WHEN_INTERRUPTED, 2 = MUTE_WHEN_INTERRUPTED
    OH_AudioRenderer_SetIndependentAudioSessionStrategy(audioRenderer, &strategy, 4);
    OH_AudioManager_GetAudioResourceManager(&audioResourceManager);
    if (audioResourceManager != nullptr) {
        OH_AudioResourceManager_CreateWorkgroup(audioResourceManager, "AudioBookWorkgroup", &audioWorkgroup);
        OH_LOG_INFO(LOG_APP, "Audio workgroup created");
    }
    bufferQueue = new AudioBufferQueue(prefetchBufferSize);
    OH_LOG_INFO(LOG_APP, "Init player successfully.");
}

oh_audio_play.cpp

2.设置音频写入的回调函数。在回调函数中，读取文件数据后，写入到AudioRenderer中。

OH_AudioData_Callback_Result OnAudioRendererWriteDataEvent([[maybe_unused]] OH_AudioRenderer *audioRenderer,
                                                            void *userData, void *audioData, int32_t audioDataSize) {
    auto audioBookFileInfo = reinterpret_cast<AudioBookFileInfo *>(userData);
    auto &player = OHAudioPlayer::GetInstance();
    int64_t remainedSize = audioBookFileInfo->audioBookFileSize - audioBookFileInfo->currentPlayOffset;
    int32_t bytesToRead = std::min(static_cast<int64_t>(audioDataSize), remainedSize);
    size_t actualRead = player.bufferQueue->Read(audioData, bytesToRead);

    if (actualRead < 0) {
        OH_LOG_ERROR(LOG_APP, "Read audio data error.");
        return AUDIO_DATA_CALLBACK_RESULT_INVALID;
    }

    audioBookFileInfo->currentPlayOffset += actualRead;
    int64_t framesProvided = actualRead / AudioConstants::FRAME_SIZE;
    player.totalFramesProvided += framesProvided;

    if (actualRead == audioDataSize) {
        return AUDIO_DATA_CALLBACK_RESULT_VALID;
    }

    if (actualRead < audioDataSize) {
        bool isLastFrame = (audioBookFileInfo->currentPlayOffset >= audioBookFileInfo->audioBookFileSize);
        if (isLastFrame) {
            memset_s(static_cast<char*>(audioData) + actualRead, audioDataSize - actualRead, 0, audioDataSize - actualRead);
            return AUDIO_DATA_CALLBACK_RESULT_VALID;
        } else {
            player.totalFramesProvided -= framesProvided;
            audioBookFileInfo->currentPlayOffset -= actualRead;
            OH_LOG_INFO(LOG_APP, "Incomplete frame, will retry. Read: %{public}ld, Requested: %{public}d", actualRead, audioDataSize);
            return AUDIO_DATA_CALLBACK_RESULT_INVALID;
        }
    }
    return AUDIO_DATA_CALLBACK_RESULT_VALID;
}

oh_audio_play.cpp

3.播放音频。

void OHAudioPlayer::PlayAudioBook() {
    if (audioRenderer == nullptr) {
        OH_LOG_ERROR(LOG_APP, "The audioRenderer is null.");
        return;
    }
    auto ret = OH_AudioRenderer_Start(audioRenderer);
    if (ret != AUDIOSTREAM_SUCCESS) {
        OH_LOG_ERROR(LOG_APP, "Play audio book failed, ret: %{public}d", ret);
        return;
    }
    OH_LOG_INFO(LOG_APP, "Play audio book successfully.");
}

oh_audio_play.cpp

4.暂停播放音频。

void OHAudioPlayer::PauseAudioBook() {
    if (audioRenderer == nullptr) {
        OH_LOG_ERROR(LOG_APP, "The audioRenderer is null.");
        return;
    }
    auto ret = OH_AudioRenderer_Pause(audioRenderer);
    if (ret != AUDIOSTREAM_SUCCESS) {
        OH_LOG_ERROR(LOG_APP, "Pause audio book failed, ret: %{public}d", ret);
        return;
    }
    OH_LOG_INFO(LOG_APP, "Pause audio book successfully.");
}

oh_audio_play.cpp

5.跳转播放音频。

void OHAudioPlayer::SeekTo(uint32_t position) {
    PreparePosition(position);
    if (audioRenderer != nullptr) {
        OH_AudioRenderer_Start(audioRenderer);
    }
    OH_LOG_INFO(LOG_APP, "Seek to position successfully and started.");
}

oh_audio_play.cpp

6.释放播放资源。

void OHAudioPlayer::ReleasePlayer() {
    StopPrefetch();

    if (bufferQueue != nullptr) {
        delete bufferQueue;
        bufferQueue = nullptr;
    }
    if (audioWorkgroup != nullptr && audioResourceManager != nullptr) {
        OH_AudioResourceManager_ReleaseWorkgroup(audioResourceManager, audioWorkgroup);
        audioWorkgroup = nullptr;
        OH_LOG_INFO(LOG_APP, "Audio workgroup released");
    }
    if (audioResourceManager != nullptr) {
        audioResourceManager = nullptr;
    }
    if (rendererBuilder != nullptr) {
        OH_AudioStreamBuilder_Destroy(rendererBuilder);
        rendererBuilder = nullptr;
    }
    if (audioRenderer != nullptr) {
        OH_AudioRenderer_Stop(audioRenderer);
        OH_AudioRenderer_Release(audioRenderer);
        audioRenderer = nullptr;
    }
    if (audioBookFileInfo != nullptr) {
        delete audioBookFileInfo;
        audioBookFileInfo = nullptr;
    }
    OH_LOG_INFO(LOG_APP, "Release player successfully.");
}

oh_audio_play.cpp

电子书章节和内容管理

场景描述

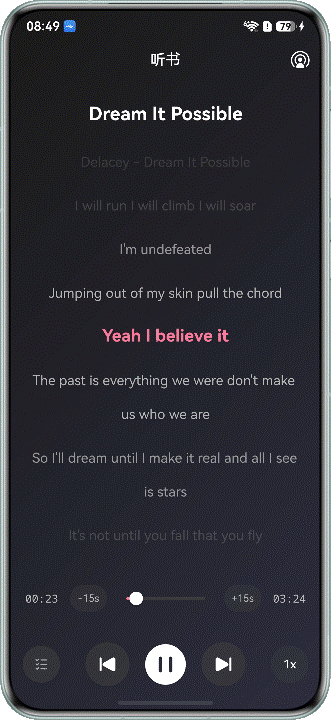

在音频跳转时，需要同步刷新内容页面，使页面的内容与音频播放的内容保持一致，效果如下图所示。

点击放大

实现原理

章节文本内容存放在lrc文件（带时间戳的歌词文件）中，包含了时间戳与对应的文本内容。应用加载文件内容后，通过List组件显示文本内容。

注册音频播放进度回调函数，在播放进度变化时同步滑动到对应文本，保持音频和文本一致。

开发步骤

1.加载听书的文本文件。

public async loadLrcFile(lyricPath: string): Promise<LrcLine[]> {
  Logger.info(TAG, `loadLrcFile started, path: ${lyricPath}`);
  this.lrcParser.clear();

  if (!lyricPath || lyricPath.length === 0) {
    Logger.info(TAG, 'Lyric file path is empty, skip loading');
    return [];
  }

  try {
    const context: common.UIAbilityContext = AppStorage.get('context') as common.UIAbilityContext;
    const resourceMgr = context.resourceManager;
    const fileContent = await resourceMgr.getRawFileContent(lyricPath);

    const textDecoder = util.TextDecoder.create('utf-8', { ignoreBOM: true });
    const lrcContent = textDecoder.decodeToString(fileContent, { stream: false });

    this.lrcParser.parse(lrcContent);
    const lrcLines: LrcLine[] = this.lrcParser.getLrcLines();

    Logger.info(TAG, `LRC file loaded successfully, total ${lrcLines.length.toString()} lines`);
    return lrcLines;
  } catch (error) {
    Logger.error(TAG, `LRC file loading failed: ${JSON.stringify(error)}`);
    return [];
  }
}

LrcManager.ets

2.将解析文件内容切分成文本数组lrcLines。

parse(lrcContent: string): void {
  Logger.info(TAG, 'Start parsing LRC file');
  this.lrcLines = [];
  if (!lrcContent || lrcContent.length === 0) {
    Logger.error(TAG, 'LRC file content is empty');
    return;
  }

  const lines: string[] = lrcContent.split('\n');
  for (const line of lines) {
    const trimmedLine: string = line.trim();
    if (trimmedLine.length === 0) {
      continue;
    }

    const match = trimmedLine.match(/\[(\d{2}):(\d{2})\.(\d{2,3})\](.*)/);
    if (match) {
      const minutes: number = parseInt(match[1]);
      const seconds: number = parseInt(match[2]);
      const milliseconds: number = parseInt(match[3].padEnd(3, '0'));
      const text: string = match[4].trim();
      const time: number = minutes * 60 * 1000 + seconds * 1000 + milliseconds;

      this.lrcLines.push({ time, text });
    }
  }

  this.lrcLines.sort((a, b) => a.time - b.time);
  Logger.info(TAG, `LRC file parsing completed, total ${this.lrcLines.length} lines`);
}

LrcParser.ets

3.通过registerProgressCallback()注册音频播放进度的回调函数。

setupProgressCallback(): void {
  this.audioControl.registerProgressCallback((currentTime: number) => {
    if (!this.isDragging) {
      this.currentTime = currentTime;
      Logger.info(TAG, `currentTime: ${this.currentTime}`);
      this.updateCurrentLrc();
      if (this.currentTime >= this.totalTime) {
        this.currentTime = this.totalTime;
      }
    }
  });
}

AudioPlayerPage.ets

4.通过scroller，将章节的文本滚动到对应的位置。

updateCurrentLrc(): void {
  const newIndex = this.lrcManager.getCurrentLineIndex(this.currentTime);
  if (newIndex !== this.currentLrcIndex) {
    this.currentLrcIndex = newIndex;
    if (newIndex >= 0) {
      this.scroller.scrollToIndex(newIndex, true, ScrollAlign.CENTER);
    }
  }
}

AudioPlayerPage.ets

听书接入播控中心

场景描述

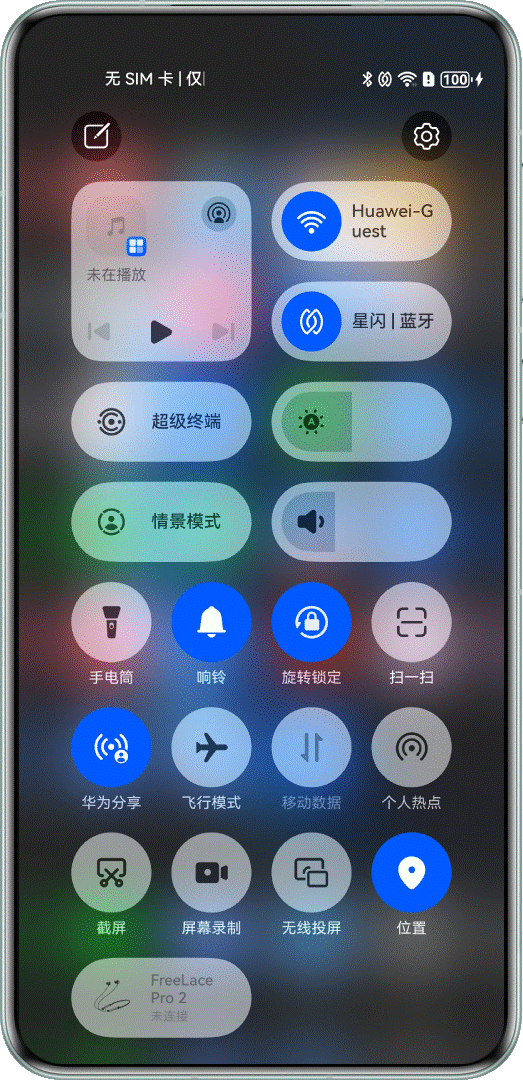

将应用接入AVSession，通过播控中心进行播放控制与状态同步。

实现原理

通过AVSession音频播控服务实现音频应用接入播控中心。

开发步骤

1.在initAVSession()方法中，创建并激活AVSession会话。

public async initAVSession() {
  this.context = AppStorage.get('context') as common.UIAbilityContext;
  if (!this.context) {
    Logger.error(TAG, 'Session create failed: context is undefined');
    return;
  }

  this.audioControlCenter = AudioControlCenter.getInstance();
  if (!this.audioControlCenter) {
    Logger.error(TAG, 'Session create failed: audioControlCenter is undefined');
    return;
  }

  try {
    this.avSession = await avSession.createAVSession(this.context, 'PLAY_AUDIO', 'audio');
    await this.avSession.activate().catch(() => {
      Logger.info(TAG, `Session activate error`);
    });
    this.avSession.setExtras({
      requireAbilityList: ['url-cast'],
    }).catch(() => {
      Logger.info(TAG, `Session setExtras error`);
    });
    await this.setAVMetadata();
    this.setLaunchAbility();
    this.setListenerForMesFromController();

    this.avCastManager = AVCastManager.getInstance();
    Logger.info(TAG, 'AVCastManager initialized');
  } catch (error) {
    Logger.error(TAG, 'initAVSession error');
  }
}

AVSessionController.ets

2.在setLaunchAbility()方法中，设置会话的启动能力。

private setLaunchAbility() {
  if (!this.context) {
    return;
  }
  let wantAgentInfo: wantAgent.WantAgentInfo = {
    wants: [
      {
        bundleName: this.context.abilityInfo.bundleName,
        abilityName: this.context.abilityInfo.name
      }
    ],
    actionType: wantAgent.OperationType.START_ABILITIES,
    requestCode: 0,
    wantAgentFlags: [wantAgent.WantAgentFlags.UPDATE_PRESENT_FLAG]
  };
  wantAgent.getWantAgent(wantAgentInfo).then((agent) => {
    if (this.avSession) {
      this.avSession.setLaunchAbility(agent).catch(() => {
        Logger.error(TAG, `setLaunchAbility failed.`);
      });
    }
  }).catch((err: BusinessError) => {
    Logger.error(TAG, `getWantAgent failed: code: ${err.code}, message: ${err.message}`);
  });
}

AVSessionController.ets

3.在setListenerForMesFromController()方法中，注册播放、暂停等各种控制命令的监听器。

private setListenerForMesFromController() {
  if (!this.avSession) {
    return;
  }
  try {
    this.avSession.on('play', this.onPlay);
    this.avSession.on('pause', this.onPause);
    this.avSession.on('playNext', this.onPlayNext);
    this.avSession.on('playPrevious', this.onPlayPrevious);
    this.avSession.on('seek', this.onSeek);
  } catch (error) {
    Logger.error(TAG, 'audioControlCenter is undefined in onPlay');
  }
}

AVSessionController.ets

4.在setAVMetadata()方法中，设置当前播放的媒体元数据。

public async setAVMetadata() {
  try {
    if (!this.context || !this.avSession || !this.audioControlCenter) {
      return;
    }
    const currentChapterIndex = this.audioControlCenter.getCurrentChapterIndex();
    const chapter = this.audioControlCenter.getCurrentChapter();
    if (!chapter) {
      return;
    }

    const duration = this.audioControlCenter.getDuration();
    let metadata: avSession.AVMetadata = {
      assetId: `${currentChapterIndex}`,
      title: chapter.title,
      artist: chapter.author,
      duration: duration,
      avQueueName: 'My Audio Book',
      avQueueId: 'AudioBookQueueId1',
      filter: avSession.ProtocolType.TYPE_CAST_PLUS_STREAM | avSession.ProtocolType.TYPE_DLNA |
        avSession.ProtocolType.TYPE_CAST_PLUS_AUDIO
    };
    try {
      const queuePixelMap = await MediaUtils.getPixelMapFromResource(this.context, $r('app.media.image_cover'));
      metadata.avQueueImage = queuePixelMap;
    } catch (error) {
      Logger.error(TAG, `Failed to load queue image: ${JSON.stringify(error)}`);
    }
    // get lyric
    if (chapter.lyric) {
      const lrc = await MediaUtils.getLrcFromRawFile(this.context, chapter.lyric);
      if (lrc) {
        metadata.lyric = lrc;
      }
    }
    // get PixelMap
    if (chapter.avatar) {
      try {
        const pixelMap = await MediaUtils.getPixelMapFromResource(this.context, chapter.avatar);
        metadata.mediaImage = pixelMap;
      } catch (error) {
        Logger.error(TAG, `Failed to load avatar: ${JSON.stringify(error)}`);
      }
    }
    // set AVMetadata
    this.avSession.setAVMetadata(metadata).then(() => {
      Logger.info(TAG, 'setAVMetadata succeeded');
    }).catch((err: BusinessError) => {
      Logger.error(TAG, `setAVMetadata failed: code: ${err.code}, message: ${err.message}`);
    });
  } catch (error) {
    Logger.error(TAG, `setAVMetadata failed: ${JSON.stringify(error)}`);
  }
}

AVSessionController.ets

5.设置播放状态。

public setPlayState(isPlay: boolean) {
  if (!this.avSession) {
    Logger.error(TAG, 'AVSession is undefined');
    return;
  }
  this.avSession.setAVPlaybackState({
    state: isPlay ? avSession.PlaybackState.PLAYBACK_STATE_PLAY : avSession.PlaybackState.PLAYBACK_STATE_PAUSE,
  }, (err: BusinessError) => {
    if (err) {
      Logger.error(TAG, `setPlayState failed: code: ${err.code}, message: ${err.message}`);
    } else {
      Logger.info(TAG, 'setPlayState succeeded');
    }
  });
}

AVSessionController.ets

6.设置播放进度。

public setProgressState(ms: number) {
  if (!this.avSession) {
    return;
  }
  this.avSession.setAVPlaybackState({
    position: {
      elapsedTime: ms,
      updateTime: new Date().getTime()
    }
  }, (err: BusinessError) => {
    if (err) {
      Logger.error(TAG, `setProgressState failed: code: ${err.code}, message: ${err.message}`);
    } else {
      Logger.info(TAG, 'setProgressState succeeded');
    }
  });
}

AVSessionController.ets

7.注销会话监听器。

public async unregisterSessionListener() {
  if (!this.avSession) {
    return;
  }
  try {
    this.avSession.off('play');
    this.avSession.off('pause');
    this.avSession.off('playNext');
    this.avSession.off('playPrevious');
    this.avSession.off('seek');
    this.avSession.destroy().catch(() => {
      Logger.error(TAG, `avSession destroy failed`);
    });
  } catch (error) {
    let err: BusinessError = error;
    Logger.error(TAG, `setProgressState failed: code: ${err.code}, message: ${err.message}`);
  }
}

AVSessionController.ets

听书后台播放

场景描述

应用支持后台音频播放，用户可以切换到其他应用，且在其它应用没有设置焦点打断的情况下，音频播放不会中断。

实现原理

开发者需先实现播控中心接入，申请后台运行权限和设置后台模式，然后为音频应用创建长时后台任务，实现音频后台持续播放。

开发步骤

1.在entry/src/main/module.json5 中，声明后台运行权限。

"requestPermissions": [
  {
    "name": "ohos.permission.KEEP_BACKGROUND_RUNNING",
    "reason": "$string:keep_background_running_reason",
    "usedScene": {
      "abilities": [
        "EntryAbility"
      ],
      "when": "always"
    }
  },
],

module.json5

2.申请后台长时任务，模式为AUDIO_PLAYBACK。

public static startContinuousTask(context?: common.UIAbilityContext): void {
  if (!context) {
    Logger.error(TAG, 'startContinuousTask failed, context undefined');
    return;
  }

  if (BackgroundUtil.isBackgroundRunning) {
    Logger.info(TAG, 'Background task is already running');
    return;
  }

  BackgroundUtil.isBackgroundRunning = true;

  let wantAgentInfo: wantAgent.WantAgentInfo = {
    wants: [
      {
        bundleName: context.abilityInfo.bundleName,
        abilityName: context.abilityInfo.name
      }
    ],
    actionType: wantAgent.OperationType.START_ABILITY,
    requestCode: 0,
    wantAgentFlags: [wantAgent.WantAgentFlags.UPDATE_PRESENT_FLAG]
  };

  wantAgent.getWantAgent(wantAgentInfo).then((wantAgentObj: Object) => {
    backgroundTaskManager.startBackgroundRunning(
      context,
      backgroundTaskManager.BackgroundMode.AUDIO_PLAYBACK,
      wantAgentObj
    ).then(() => {
      Logger.info(TAG, 'startBackgroundRunning succeeded');
    }).catch((error: BusinessError) => {
      Logger.error(TAG, `startBackgroundRunning failed code: ${error.code.toString()}`);
      BackgroundUtil.isBackgroundRunning = false;
    });
  }).catch((error: BusinessError) => {
    Logger.error(TAG, `getWantAgent failed code: ${error.code.toString()}`);
    BackgroundUtil.isBackgroundRunning = false;
  });
}

BackgroundUtil.ets

3.开始播放时申请后台任务。

private async localPlay(): Promise<void> {
  Logger.info(TAG, 'localPlay started');
  if (this.isPlaying) {
    Logger.info(TAG, 'localPlay skipped, already playing');
    return;
  }
  try {
    audioPlayer.playAudioBook();
    this.isPlaying = true;
    this.startProgressTimer();
    this.notifyPlayStateChange(true);

    if (this.avSessionController) {
      this.avSessionController.setPlayState(true);
    }

    BackgroundUtil.startContinuousTask(this.context);

    Logger.info(TAG, 'localPlay completed');
  } catch (error) {
    Logger.error(TAG, `localPlay failed: ${JSON.stringify(error)}`);
    this.isPlaying = false;
    this.stopProgressTimer();
    this.notifyPlayStateChange(false);
    throw error as Error;
  }
}

AudioControlCenter.ets

听书投播

场景描述

应用可以将手机上的音视频无缝流转到其他设备（如电脑、华为智慧屏）上继续播放，在远程设备上进行播放控制。

实现原理

投播功能的实现基于AVSession媒体会话和AVCastController投播控制器的协同工作，具体原理可参考音频投播。

开发步骤

1.设置支持投播功能。

this.avSession.setExtras({
  requireAbilityList: ['url-cast'],
}).catch(() => {
  Logger.info(TAG, `Session setExtras error`);
});
await this.setAVMetadata();

AVSessionController.ets

2.注册设备连接变化回调。

private async registerCastCallbacks(): Promise<void> {
  if (!this.avSession) {
    Logger.error(TAG, 'avSession not initialized');
    return;
  }
  try {
    this.avSession.on('outputDeviceChange', async (connectState: avSession.ConnectionState,
      device: avSession.OutputDeviceInfo) => {
      try {
        Logger.info(TAG, `outputDeviceChange: ${connectState}`);
        const currentDevice: avSession.DeviceInfo = device?.devices?.[0];
        if (currentDevice?.castCategory === avSession.AVCastCategory.CATEGORY_REMOTE) {
          if (connectState === avSession.ConnectionState.STATE_CONNECTED) {
            Logger.info(TAG, 'Device connected successfully');
            this.isConnected = true;
            this.currentDevice = currentDevice;
            if (this.avSession) {
              const controller = await this.avSession.getAVCastController();
              if (controller) {
                this.castController = controller;
                await this.registerCastControllerCallbacks();
              }
            }
            if (this.connectionCallback) {
              this.connectionCallback(true, currentDevice);
            }
          } else if (connectState === avSession.ConnectionState.STATE_DISCONNECTED) {
            Logger.info(TAG, 'Device disconnected');
            this.isConnected = false;
            this.currentDevice = undefined;
            if (this.connectionCallback) {
              this.connectionCallback(false);
            }
          }
        } else if (currentDevice?.castCategory === avSession.AVCastCategory.CATEGORY_LOCAL) {
          Logger.info(TAG, 'Device switched to local');
        }
        Logger.info(TAG, 'registerCastCallbacks completed');
      } catch (error) {
        Logger.error(TAG, `outputDeviceChange error:  ${JSON.stringify(error)}`);
      }
    });
  } catch (error) {
    Logger.error(TAG, `registerCastCallbacks error:  ${JSON.stringify(error)}`);
  }
}

AVCastManager.ets

3.注册投播控制器回调。

private async registerCastControllerCallbacks(): Promise<void> {
  if (!this.castController) {
    Logger.error(TAG, 'castController not initialized');
    return;
  }

  try {
    this.castController.on('playPrevious', () => {
      Logger.info(TAG, 'playPrevious event received');
      if (this.playPreviousCallback) {
        this.playPreviousCallback();
      }
    });


    this.castController.on('playNext', () => {
      Logger.info(TAG, 'playNext event received');
      if (this.playNextCallback) {
        this.playNextCallback();
      }
    });

    this.castController.on('playbackStateChange', 'all', (playbackState: avSession.AVPlaybackState) => {
      Logger.info(TAG, `playbackStateChange: ${JSON.stringify(playbackState)}`);
      const state = playbackState?.state;
      const position = playbackState?.position?.elapsedTime;
      const volume = playbackState?.volume;
      const maxVol = playbackState?.maxVolume;
      const speed = playbackState?.speed;

      if (position !== undefined) {
        this.currentCastPosition = position;
      }
      if (volume !== undefined) {
        this.currentCastVolume = volume;
      }
      if (maxVol !== undefined && maxVol > 0) {
        this.maxVolume = maxVol;
        Logger.info(TAG, `Device max volume updated to: ${maxVol}`);
      }

      if (speed !== undefined) {
        this.currentCastSpeed = speed;
        Logger.info(TAG, `Cast speed updated to: ${speed}x`);
      }

      if (state !== undefined || position !== undefined || volume !== undefined || speed !== undefined) {
        if (this.playbackStateCallback) {
          const volToShow = this.currentCastVolume / this.maxVolume;
          this.playbackStateCallback(state, position, volToShow, speed);
        }
      }
    });

    this.castController.on('endOfStream', () => {
      Logger.info(TAG, 'endOfStream event received');
      if (this.endOfStreamCallback) {
        this.endOfStreamCallback();
      }
    });

    this.castController.on('seekDone', (position: number) => {
      Logger.info(TAG, `seekDone event: ${position}ms`);
      this.currentCastPosition = position;
      if (this.seekDoneCallback) {
        this.seekDoneCallback(position);
      }
    });
  } catch (error) {
    Logger.error(TAG, `castController error:  ${JSON.stringify(error)}`);
  }
  Logger.info(TAG, 'registerCastControllerCallbacks completed');
}

AVCastManager.ets

4.准备并播放投播内容。

public async prepareAndPlay(chapter: AudioBookChapter, startPosition: number = 0, speed: number): Promise<void> {
  Logger.info(TAG, `prepareAndPlay started, chapter: ${chapter.title}, startPosition: ${startPosition}ms`);
  if (!this.castController) {
    Logger.error(TAG, 'castController not initialized');
    return;
  }

  if (!this.context) {
    Logger.error(TAG, 'context not initialized');
    return;
  }

  this.currentChapter = chapter;
  const lyricContent = await this.loadLyricContent(chapter);
  let playItem: avSession.AVQueueItem;
  await this.audioBookChapterBuilder.build(chapter);
  this.currentRawFileDescriptor = this.audioBookChapterBuilder.getRawFileDescriptor();

  if (!this.currentRawFileDescriptor) {
    Logger.error(TAG, 'Failed to get RawFileDescriptor');
    return;
  }

  const duration = MediaUtils.getMsFromByteLength(this.currentRawFileDescriptor.length);
  try {
    const protocols = this.currentDevice?.supportedProtocols;
    const isSupportCastPlusOrDlna =
      protocols &&
        ((protocols & avSession.ProtocolType.TYPE_CAST_PLUS_STREAM) > 0 ||
          (protocols & avSession.ProtocolType.TYPE_DLNA) > 0);

    if (isSupportCastPlusOrDlna && chapter.src) {
      Logger.info(TAG, 'Using complete audio file for casting');
      const fullPath: string = this.context.filesDir + '/' + chapter.src;
      const file: fileIo.File = await fileIo.open(fullPath);
      const avFileDescriptor: media.AVFileDescriptor = { fd: file.fd };
      playItem = {
        itemId: chapter.id,
        description: {
          assetId: 'AUDIO-' + JSON.stringify(chapter.id),
          title: chapter.title,
          artist: chapter.author,
          subtitle: 'audio',
          mediaType: 'AUDIO',
          fdSrc: avFileDescriptor,
          startPosition: startPosition,
          duration: duration,
          lyricContent: lyricContent,
          albumTitle: 'My Audio Book',
          appName: 'My Audio Book'
        }
      };
    }

    await new Promise<void>((resolve, reject) => {
      this.castController?.prepare(playItem, () => {
        Logger.info(TAG, 'prepare completed');
        resolve();
      });
    });

    await new Promise<void>((resolve, reject) => {
      this.castController?.start(playItem, () => {
        Logger.info(TAG, 'start completed');
        resolve();
      });
    });
    this.sendSpeedCommand(speed);
    Logger.info(TAG, 'prepareAndPlay completed');
  } catch (error) {
    Logger.error(TAG, `prepareAndPlay failed: ${JSON.stringify(error)}`);
    throw new Error(`prepareAndPlay failed: ${JSON.stringify(error)}`);
  }
}

AVCastManager.ets

5. 发送投播控制命令，包含播放、暂停、跳转、倍速等功能。

public sendPlayCommand(): void {
  Logger.info(TAG, 'sendPlayCommand started');
  if (!this.castController) {
    Logger.error(TAG, 'castController not initialized');
    return;
  }
  const command: avSession.AVCastControlCommand = { command: 'play' };
  this.castController.sendControlCommand(command).catch(() => {
    Logger.error(TAG, 'sendControlCommand error');
  });
  Logger.info(TAG, 'sendPlayCommand completed');
}

public sendPauseCommand(): void {
  Logger.info(TAG, 'sendPauseCommand started');
  if (!this.castController) {
    Logger.error(TAG, 'castController not initialized');
    return;
  }
  const command: avSession.AVCastControlCommand = { command: 'pause' };
  this.castController.sendControlCommand(command).catch(() => {
    Logger.error(TAG, 'sendControlCommand error');
  });
  Logger.info(TAG, 'sendPauseCommand completed');
}

public sendStopCommand(): void {
  Logger.info(TAG, 'sendStopCommand started');
  if (!this.castController) {
    Logger.error(TAG, 'castController not initialized');
    return;
  }
  const command: avSession.AVCastControlCommand = { command: 'stop' };
  this.castController.sendControlCommand(command).catch(() => {
    Logger.error(TAG, 'sendControlCommand error');
  });
  Logger.info(TAG, 'sendStopCommand completed');
}

AVCastManager.ets

6. 停止投播。

public async stopCasting(): Promise<void> {
  Logger.info(TAG, 'stopCasting started');
  if (!this.avSession) {
    Logger.error(TAG, 'avSession not initialized');
    return;
  }
  try {
    await this.avSession.stopCasting();
    this.isConnected = false;
    this.currentDevice = undefined;
    this.castController = undefined;
    Logger.info(TAG, 'stopCasting completed');
  } catch (error) {
    Logger.error(TAG, `stopCasting failed: ${JSON.stringify(error)}`);
    throw new Error(`stopCasting failed: ${JSON.stringify(error)}`);
  }
}

AVCastManager.ets

听书一键冷启动和历史书单推荐

场景描述

用户在应用内播放后，上滑结束应用进程，再进入播控中心，点击播放键正常拉起应用播放。冷启动效果如下所示。

实现原理

注册并适配端侧意图调用，实现一键冷启动播放和历史书单。

开发步骤

1.注册PlayAudio和PlayMusicList意图，具体步骤参考：意图注册。

2.设置书单名称、书单唯一标识Id的字段。

public async setAVMetadata() {
  try {
    if (!this.context || !this.avSession || !this.audioControlCenter) {
      return;
    }
    const currentChapterIndex = this.audioControlCenter.getCurrentChapterIndex();
    const chapter = this.audioControlCenter.getCurrentChapter();
    if (!chapter) {
      return;
    }

    const duration = this.audioControlCenter.getDuration();
    let metadata: avSession.AVMetadata = {
      assetId: `${currentChapterIndex}`,
      title: chapter.title,
      artist: chapter.author,
      duration: duration,
      avQueueName: 'My Audio Book',
      avQueueId: 'AudioBookQueueId1',
      filter: avSession.ProtocolType.TYPE_CAST_PLUS_STREAM | avSession.ProtocolType.TYPE_DLNA |
        avSession.ProtocolType.TYPE_CAST_PLUS_AUDIO
    };
    try {
      const queuePixelMap = await MediaUtils.getPixelMapFromResource(this.context, $r('app.media.image_cover'));
      metadata.avQueueImage = queuePixelMap;
    } catch (error) {
      Logger.error(TAG, `Failed to load queue image: ${JSON.stringify(error)}`);
    }
    // get lyric
    if (chapter.lyric) {
      const lrc = await MediaUtils.getLrcFromRawFile(this.context, chapter.lyric);
      if (lrc) {
        metadata.lyric = lrc;
      }
    }
    // get PixelMap
    if (chapter.avatar) {
      try {
        const pixelMap = await MediaUtils.getPixelMapFromResource(this.context, chapter.avatar);
        metadata.mediaImage = pixelMap;
      } catch (error) {
        Logger.error(TAG, `Failed to load avatar: ${JSON.stringify(error)}`);
      }
    }
    // set AVMetadata
    this.avSession.setAVMetadata(metadata).then(() => {
      Logger.info(TAG, 'setAVMetadata succeeded');
    }).catch((err: BusinessError) => {
      Logger.error(TAG, `setAVMetadata failed: code: ${err.code}, message: ${err.message}`);
    });
  } catch (error) {
    Logger.error(TAG, `setAVMetadata failed: ${JSON.stringify(error)}`);
  }
}

AVSessionController.ets

3.实现意图执行逻辑。

private audioControlCenter: AudioControlCenter = AudioControlCenter.getInstance();

async onExecuteInUIAbilityBackgroundMode(intentName: string, intentParam: Record<string, Object>):
  Promise<insightIntent.ExecuteResult> {
  Logger.info(TAG, `onExecuteInUIAbilityBackgroundMode, intentName: ${intentName}`);

  switch (intentName) {
    case 'PlayMusic':
      let data = intentParam as Record<string, string>;
      return this.playFunc(data.entityId);
    case 'PlayMusicList':
      let entityId: string = (intentParam.items as Array<object>)?.[0]?.['entityId'];
      return this.playFunc(entityId);
    default:
      break;
  }

  return Promise.resolve({
    code: -1,
    result: { message: 'unknown intent' }
  } as insightIntent.ExecuteResult)
}

InsightIntentExecutorImpl.ets

听书焦点管理

场景描述

作为听书应用，会面临多种音频打断场景。不同场景下，系统的处理方式和应用的应对策略各有不同。音频打断场景总览表如下所示：

展开

打断类型	场景示例	启动顺序	系统行为	应用处理
暂停场景	通话、语音消息、闹铃等	先听书	主动停止播放并发送暂停事件	处理播放器状态
恢复场景	暂停类场景结束后	-	发送恢复事件但不主动播放	主动重新开始播放
停止场景	其他媒体应用启动	先听书	主动停止播放并发送停止事件	处理播放器状态
压低场景	导航语音播报	先听书	主动压低音量不发送事件	无需处理，自动恢复
压低场景	小艺AI、闹铃、铃声	后听书	主动压低音量不发送事件	无需处理，自动恢复

实现原理

当音频流申请或释放音频焦点时，系统依据音频焦点策略，对所有音频流（包括播放和录制）实施焦点管理，详细内容可以参考音频焦点管理解决方案。

开发步骤

1.实现OnAudioInterruptEvent()回调函数。在共享打断类型下，提示音频恢复时，播放音频。在提示音频暂停、停止时，停止音频播放。

void OnAudioInterruptEvent(OH_AudioRenderer *audioRenderer, [[maybe_unused]] void *userData,
                                   OH_AudioInterrupt_ForceType type, OH_AudioInterrupt_Hint hint) {
    auto &player = OHAudioPlayer::GetInstance();

    if (hint == AUDIOSTREAM_INTERRUPT_HINT_PAUSE) {
        OH_LOG_INFO(LOG_APP, "Audio paused by interrupt.");
        player.isPaused.store(true);
        auto now = std::chrono::system_clock::now().time_since_epoch();
        player.pauseStartTime.store(std::chrono::duration_cast<std::chrono::milliseconds>(now).count());
        player.PlayStatusCallback(AudioConstants::PlayStatus::Pause);
    } else if (hint == AUDIOSTREAM_INTERRUPT_HINT_STOP) {
        OH_LOG_INFO(LOG_APP, "Audio stopped by interrupt.");
        player.PlayStatusCallback(AudioConstants::PlayStatus::Pause);
    } else if ((type == AUDIOSTREAM_INTERRUPT_SHARE) && (hint == AUDIOSTREAM_INTERRUPT_HINT_RESUME)) {
        OH_LOG_INFO(LOG_APP, "Audio resume interrupt received.");
        if (player.isPaused.load()) {
            auto now = std::chrono::system_clock::now().time_since_epoch();
            int64_t resumeTime = std::chrono::duration_cast<std::chrono::milliseconds>(now).count();
            int64_t pauseTime = player.pauseStartTime.load();
            int64_t elapsedMs = resumeTime - pauseTime;
            OH_LOG_INFO(LOG_APP, "Audio resume after %{public}ld ms.", elapsedMs);

            player.isPaused.store(false);

            if (elapsedMs <= player.RESUME_THRESHOLD_MS) {
                OH_LOG_INFO(LOG_APP, "Resume within 15s, resuming playback.");
                player.PlayStatusCallback(AudioConstants::PlayStatus::Play);
            } else {
                OH_LOG_INFO(LOG_APP, "Resume after 15s, not resuming playback.");
            }
        }
    } else if (hint == AUDIOSTREAM_INTERRUPT_HINT_MUTE) {
        OH_LOG_INFO(LOG_APP, "Audio muted, stopping progress update.");
        player.isMuted.store(true);
        player.mutePosition.store(player.GetCurrentPosition());
        auto now = std::chrono::system_clock::now().time_since_epoch();
        player.muteStartTime.store(std::chrono::duration_cast<std::chrono::milliseconds>(now).count());
        player.PlayStatusCallback(AudioConstants::PlayStatus::Muted);
    } else if (hint == AUDIOSTREAM_INTERRUPT_HINT_UNMUTE) {
        if (player.isMuted.load()) {
            auto now = std::chrono::system_clock::now().time_since_epoch();
            int64_t unmuteTime = std::chrono::duration_cast<std::chrono::milliseconds>(now).count();
            int64_t muteTime = player.muteStartTime.load();
            int64_t elapsedMs = unmuteTime - muteTime;
            player.isMuted.store(false);

            if (elapsedMs <= player.RESUME_THRESHOLD_MS) {
                OH_LOG_INFO(LOG_APP, "Unmute within 15s, notifying unmuted state.");
                player.PlayStatusCallback(AudioConstants::PlayStatus::UnMuted);
            } else {
                OH_LOG_INFO(LOG_APP, "Unmute after 15s, preparing position and notifying pause state.");
                uint32_t position = player.mutePosition.load();
                player.PreparePosition(position);
                player.PlayStatusCallback(AudioConstants::PlayStatus::Pause);
            }
        }
    }
}

oh_audio_play.cpp

2.在InitPlayer() 方法中，注册音频打断回调。

(void)OH_AudioStreamBuilder_SetRendererInterruptCallback(rendererBuilder, OnAudioInterruptEvent, nullptr);

oh_audio_play.cpp

3. 在ArkTS层处理播放状态变化。

private async initAudioPlayer() {
  audioPlayer.initPlayer();
  audioPlayer.onPlayStatus((state: number) => {
    Logger.info(TAG, `onPlayStateChange is ${state}`);
    if (!this.isCasting) {
      switch (state) {
        case 1:
          this.play();
          break;
        case 2:
          this.pause();
          break;
        case 3:
          this.handleMuted();
          break;
        case 4:
          this.handleUnMuted();
          break;
      }
    }
  });
}

AudioControlCenter.ets

示例代码

听书应用

听书解决方案

概述

听书架构简介

基于OHAudio播放电子书音频

场景描述

实现原理

开发步骤

电子书章节和内容管理

场景描述

实现原理

开发步骤

听书接入播控中心

场景描述

实现原理

开发步骤

听书后台播放

场景描述

实现原理

开发步骤

听书投播

场景描述

实现原理

开发步骤

听书一键冷启动和历史书单推荐

场景描述

实现原理

开发步骤

听书焦点管理

场景描述

实现原理

开发步骤

示例代码
