CaaS Engine provides open APIs that are based on the HUAWEI MeeTime service, helping app and hardware developers quickly implement real-time content sharing within their apps.

What You Will Create

In this codelab, you will create a demo project, integrate the CaaS Engine SDK into the demo project, and complete the overall process setup of the CaaS Engine service.

What You Will Learn

Hardware Requirements

Software Requirements

Required Knowledge

HUAWEI CaaS Engine integration requires the following preparations:

For details, see the section "App Development" in Development Guide.

1. Integrate the CaaS Engine SDK.

Configure the repository in the build.gradle file of the project.

buildscript { repositories { google() jcenter() maven {url 'http://developer.huawei.com/repo/'} } } allprojects { repositories { maven {url 'http://developer.huawei.com/repo/'} google() jcenter() } }

Add the following dependencies to the build.gradle file in the app directory of the project.

repositories { flatDir { dirs 'libs' } } dependencies { implementation group: 'com.huawei.caaskit', name: 'caaskitlite', version: '1.0.1.400', ext: 'aar' }

Click the sync button, as shown in the following figure.

After the synchronization, the following screen is displayed.

2. Add app ID.

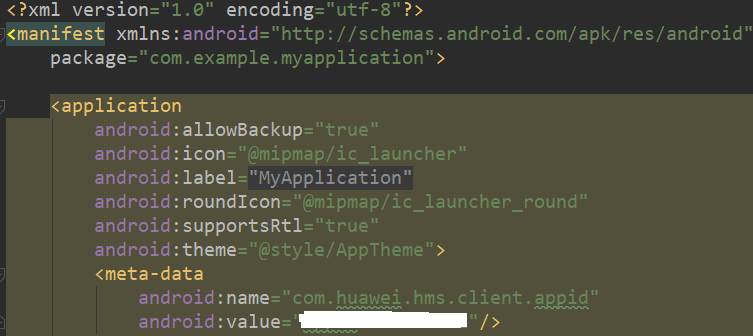

Add the app ID generated when creating the app on HUAWEI Developer to the AndroidManifest.xml file of the app. The name is com.huawei.hms.client.appid, and the value is appid=******, where ****** indicates the ID of your app. For details about how to apply for the permission, see the third section "Configuring App Information in AppGallery Connect" in the Development Guide.

3. Initialize the service.

The initialization encapsulation code of the CaaS service is as follows:

CaasKitHelper.java

public class CaasKitHelper { private static final String TAG = "CaasKitHelper"; private static CaasKitHelper sCaasKitHelper; private HwCaasServiceManager mHwCaasServiceManager; private HwCaasHandler mHwCaasHandler; private Context mContext; private boolean mIsSendShowFail; private boolean mIsCaasKitInit; private boolean mIsHasCaaSContacts = false; private HwCallStateCallBack mCallStateCallBack = new HwCallStateCallBack() { @Override public void notifyCallState(HwCaasUtils.CallState state) { Log.d(TAG, "callState: " + state); } }; private HwCaasServiceCallBack mCallBack = new HwCaasServiceCallBack() { @Override public void initSuccess(HwCaasHandler handler) { ... } @Override public void initFail(int retCode) { ... } @Override public void releaseSuccess() { ... } }; private CaasKitHelper() { mContext = CaasKitApplication.getContext(); } public synchronized static CaasKitHelper getInstance() { if (sCaasKitHelper == null) { sCaasKitHelper = new CaasKitHelper(); } return sCaasKitHelper; } public void caasKitInit() { Log.d(TAG, "caasKitInit."); if (!mIsCaasKitInit) { // initialize mHwCaasServiceManager instance. mHwCaasServiceManager = HwCaasServiceManager.init(); // initialize HwCaasHandler instance through handlerType. mHwCaasServiceManager.initHandler(mContext, HwCaasUtils.SCREEN_SHARING_TYPE, mCallBack); mIsCaasKitInit = true; } } }

Add the following code to where appropriate:

CaasKitDemoActivity.java

public class CaasKitDemoActivity extends AppCompatActivity { private static final String TAG = "CaaSKitDemoActivity"; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN); setContentView(R.layout.activity_caaskitdemo); CaasKitHelper.getInstance().caasKitInit(); } }

4. Set the style of the contacts window.

CaasKitHelper.java

public class CaasKitHelper { private static final String TAG = "CaasKitHelper"; private static final int VIEWHEIGHT = 248; private static final int VIEWWIDTH = 256; private static final int LOCATION_X = 102; private static final int LOCATION_Y = 140; private static CaasKitHelper sCaasKitHelper; private HwCaasServiceManager mHwCaasServiceManager; private HwCaasHandler mHwCaasHandler; private Context mContext; private boolean mIsSendShowFail; private boolean mIsCaasKitInit; private boolean mIsHasCaaSContacts = false; private HwCallStateCallBack mCallStateCallBack = new HwCallStateCallBack() { @Override public void notifyCallState(HwCaasUtils.CallState state) { Log.d(TAG, "callState: " + state); } }; private HwCaasServiceCallBack mCallBack = new HwCaasServiceCallBack() { @Override public void initSuccess(HwCaasHandler handler) { // callback after successful initialization of HwCaasHandler. mHwCaasHandler = handler; if (mHwCaasHandler != null) { // Display the app name of the caller party. This is mandatory, otherwise, the MeeTime entry cannot be displayed. mHwCaasHandler.setCallerAppName("Application"); // Select the style of the contacts view, which can be floating window or full screen style (similar to the system Contacts screen). mHwCaasHandler.setContactViewStyle(HwCaasUtils.ContactsViewStyle.FULL_SCREEN); // Set the size and initial position of the floating window. If full screen style is selected, skip this step. // mHwCaasHandler.setContactViewStyle(HwCaasUtils.ContactsViewStyle.FLOAT_VIEW); // mHwCaasHandler.setContactViewSize(VIEWWIDTH, VIEWHEIGHT); // mHwCaasHandler.setFloatViewLocation(HwCaasUtils.STARTVIEW, // HwCaasUtils.POINT_RIGHTANDDOWN, LOCATION_X, LOCATION_Y); // mHwCaasHandler.setFloatViewLocation(HwCaasUtils.CONTACTVIEW, HwCaasUtils.POINT_RIGHTANDDOWN, LOCATION_X, LOCATION_Y); } } @Override public void initFail(int retCode) { ... } @Override public void releaseSuccess() { ... } }; }

5. Share the screen.

CaasKitHelper.java

public class CaasKitHelper { private static final String TAG = "CaasKitHelper"; private HwCaasHandler mHwCaasHandler; public void pauseShare() { Log.d(TAG, "pauseShare."); if (mHwCaasHandler != null) { boolean isSendoK = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.SCREEN_SHARING_PAUSE); Log.d(TAG, "isSendoK: " + isSendoK); } } public void resumeShare() { Log.d(TAG, "resumeShare."); if (mHwCaasHandler != null) { boolean isSendoK = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.SCREEN_SHARING_RESUME); Log.d(TAG, "isSendoK: " + isSendoK); } } }

Add the following code to where appropriate:
CaasKitDemoActivity.java

public class CaasKitDemoActivity extends AppCompatActivity { private static final String TAG = "CaaSKitDemoActivity"; private Button mSharePause; private Button mShareResume; @Override protected void onCreate(Bundle savedInstanceState) { ... mSharePause = findViewById(R.id.share_pause); mShareResume = findViewById(R.id.share_resume); mSharePause.setOnClickListener(v ->{ CaasKitHelper.getInstance().pauseShare(); }); mShareResume.setOnClickListener(v ->{ CaasKitHelper.getInstance().resumeShare(); }); } }

6. Display the floating calling window.

CaasKitHelper.java

public class CaasKitHelper { private static final String TAG = "CaasKitHelper"; private static CaasKitHelper sCaasKitHelper; private HwCaasServiceManager mHwCaasServiceManager; private HwCaasHandler mHwCaasHandler; private Context mContext; private boolean mIsSendShowFail; private boolean mIsCaasKitInit; private boolean mIsHasCaaSContacts = false; public void sendShow() { Log.d(TAG, "sendShow."); if (mHwCaasHandler != null) { Log.d(TAG, "isHasCaaSContacts: " + mIsHasCaaSContacts); if (mIsHasCaaSContacts) { // The user touches the entry, and the contact list is displayed. boolean ret = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.SHOW_CONTACTS); // The app displays a floating dock. After the user touches the dock, the contact list is displayed. // boolean ret = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.SHOW); Log.d(TAG, "ret: " + ret); } } else { mIsSendShowFail = true; Log.e(TAG, "sendShow fail."); } } public boolean sendHide() { Log.d(TAG, "sendHide."); if (mHwCaasHandler != null) { // The method for hiding contact list is used together with HwCaasUtils.SHOW_CONTACTS. boolean ret = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.HIDE_CONTACTS); // Use the method for hiding contact list with HwCaasUtils.SHOW. // boolean isSendoK = mHwCaasHandler.sendEventToCaasService(HwCaasUtils.HIDE); Log.d(TAG, "ret: " + ret); return ret; } Log.e(TAG, "sendHide fail."); return false; } }

Add the following code to where appropriate:
CaasKitDemoActivity.java

public class CaasKitDemoActivity extends AppCompatActivity { private static final String TAG = "CaaSKitDemoActivity"; private Button mCallShow; private Button mCallHide; @Override protected void onCreate(Bundle savedInstanceState) { ... mCallShow = findViewById(R.id.call_show); mCallHide = findViewById(R.id.call_hide); mCallShow.setOnClickListener(v ->{ CaasKitHelper.getInstance().sendShow(); }); mCallHide.setOnClickListener(v ->{ CaasKitHelper.getInstance().sendHide(); }); } }

7. Display the floating calling window.

CaasKitHelper.java

public class CaasKitHelper { ... public void caasKitRelease() { Log.d(TAG, "caasKitRelease." + mIsCaasKitInit); if (mIsCaasKitInit) { if (mHwCaasServiceManager != null) { // source release. mHwCaasServiceManager.release(); mHwCaasServiceManager = null; } mIsCaasKitInit = false; } } }

Add the following code to where appropriate:
CaasKitDemoActivity.java

public class CaasKitDemoActivity extends AppCompatActivity { @Override protected void onDestroy() { super.onDestroy(); Log.d(TAG, "onDestroy."); CaasKitHelper.getInstance().caasKitRelease(); } }

Well done. You have successfully completed this codelab and learned how to:

For more information, please click the following link:
