Location Kit combines the GNSS, Wi-Fi, and base station location functionalities into your app to build up global positioning capabilities, allowing you to provide flexible location-based services for global users. In this codelab, you will learn how to call capabilities of Location Kit to create a HarmonyOS app (codelab app).

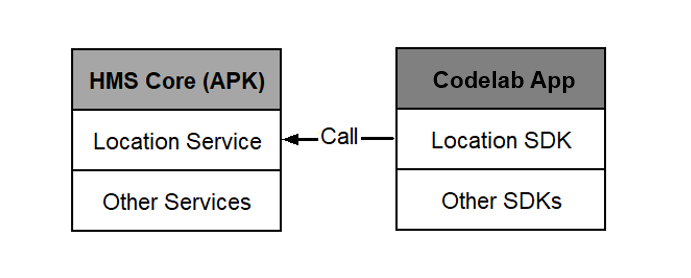

The following figure shows the basic architecture of the app. The codelab app will use the integrated Location SDK for HarmonyOS to call the location service in HMS Core (APK).
In this codelab, you will create an app for obtaining device location information.
To integrate Location Kit, you must complete the following preparations:

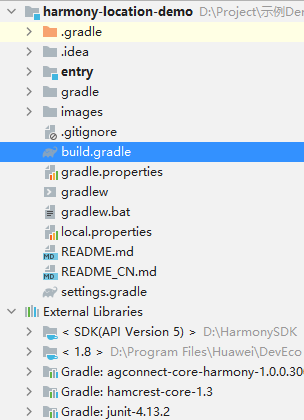

You need to open your project in DevEco Studio.
allprojects {
repositories {
maven {url 'https://repo.huaweicloud.com/repository/maven/'}
// Configure the Maven repository address for the HMS Core SDK.
maven { url 'https://developer.huawei.com/repo/' }
jcenter()
}
}
buildscript {
repositories {
maven {url 'https://repo.huaweicloud.com/repository/maven/'}
// Configure the Maven repository address for the HMS Core SDK.
maven { url 'https://developer.huawei.com/repo/' }
jcenter()
}
dependencies {
classpath 'com.huawei.ohos:hap:2.4.4.2'
// Add the AppGallery Connect service dependencies.
classpath 'com.huawei.agconnect:agcp-harmony:1.1.0.300'
classpath 'com.huawei.ohos:decctest:1.2.4.0'
}
}

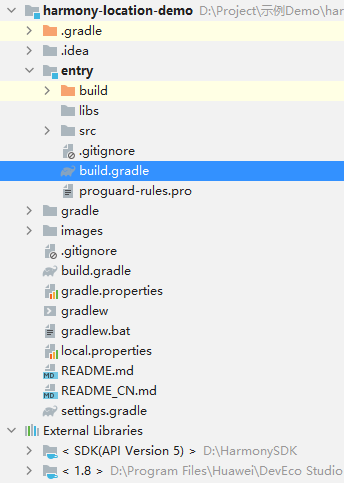

dependencies {
implementation 'com.huawei.hms:location-harmony:6.3.0.300'
}
Add the AppGallery Connect plugin configuration.
Add the following configuration under the declaration in the file header:
apply plugin: 'com.huawei.agconnect'
dependencies {
// Add a build dependency on AppGallery Connect.
implementation 'com.huawei.agconnect:agconnect-core-harmony:1.1.0.300'
}
Before building the app, configure the obfuscation configuration file to prevent the HMS Core SDK from being obfuscated.
-ignorewarnings
-repackageclasses
-keepattributes *Annotation*
-keepattributes Exceptions
-keepattributes InnerClasses
-keepattributes Signature
-keep public class com.huawei.hms.location.harmony.* { *;}
-keep public class com.huawei.hms.location.harmony.base.* { *;}
-keep class com.huawei.hmf.tasks.* {*;}
You can click here to download the demo source code and obtain the xxx.java file used during the demo development.
<!--Allow the app to obtain the network status.-->
ohos.permission.GET_NETWORK_INFO
<!-- Allow the app to obtain the coarse longitude-latitude coordinates of a user device based on the Wi-Fi network or base station, and allow the app to obtain the location information when it runs in the foreground. -->
ohos.permission.LOCATION
<!-- Allow the app to obtain location information when it runs in the background. -->
ohos.permission.LOCATION_IN_BACKGROUND
The sample code is as follows:
{
"module": {
"reqPermissions": [
{
"name": "ohos.permission.GET_NETWORK_INFO",
"reason": "Allows programs to obtain network information status."
},
{
"name": "ohos.permission.LOCATION",
"reason": "Allows applications to obtain location information when running in the foreground."
},
{
"name": "ohos.permission.LOCATION_IN_BACKGROUND",
"reason": "Allows applications to obtain location information when running in the background."
}
]
}
}
if (verifySelfPermission("ohos.permission.LOCATION") != IBundleManager.PERMISSION_GRANTED) {
printLog(HiLog.INFO, TAG, "Self: LOCATION permission not granted!");
if (canRequestPermission("ohos.permission.LOCATION")) {
printLog(HiLog.INFO, TAG, "Self: can request permission here");
requestPermissionsFromUser(
new String[]{"ohos.permission.LOCATION"}, REQUEST_CODE);
} else {
printLog(HiLog.WARN, TAG, "Self: enter settings to set permission");
}
} else {
printLog(HiLog.INFO, TAG, "Self: LOCATION permission granted!");
}
if (verifySelfPermission("ohos.permission.LOCATION_IN_BACKGROUND") != IBundleManager.PERMISSION_GRANTED) {
printLog(HiLog.INFO, TAG, "Self: LOCATION_IN_BACKGROUND permission not granted!");
if (canRequestPermission("ohos.permission.LOCATION_IN_BACKGROUND")) {
printLog(HiLog.INFO, TAG, "Self: can request permission here");
requestPermissionsFromUser(
new String[]{"ohos.permission.LOCATION_IN_BACKGROUND"}, REQUEST_CODE);
} else {
printLog(HiLog.WARN, TAG, "Self: enter settings to set permission");
}
} else {
printLog(HiLog.INFO, TAG, "Self: LOCATION_IN_BACKGROUND permission granted!");
}
public FusedLocationClient fusedLocationClient;
@Override
protected void onStart(Intent intent) {
super.onStart(intent);
fusedLocationClient = new FusedLocationClient(this);
}
LocationRequest locationRequest = new LocationRequest();
locationRequest.setPriority(LocationRequest.PRIORITY_BALANCED_POWER_ACCURACY);
locationRequest.setInterval(5000);
locationRequest.setNeedAddress(true);
locationRequest.setLanguage("zh");
LocationCallback locationCallback = new LocationCallback() {
@Override
public void onLocationResult(LocationResult locationResult) {
if (locationResult != null) {
List<Location> locations = locationResult.getLocations();
if (!locations.isEmpty()) {
printLog(HiLog.INFO, TAG, "onLocationResult location is not empty");
List<HWLocation> hwLocationList = locationResult.getHWLocationList();
if (!hwLocationList.isEmpty())
printLog(HiLog.INFO, TAG, "onLocationResult hwLocationList is not empty");
for (HWLocation hwLocation : hwLocationList) {
String result = "[new]onLocationResult location[Longitude,Latitude,Accuracy,"
+ "CountryName,State,City,County,FeatureName,Provider]:"
+ hwLocation.getLongitude() + "," + hwLocation.getLatitude() + ","
+ hwLocation.getAccuracy() + "," + hwLocation.getCountryName() + ","
+ hwLocation.getState() + "," + hwLocation.getCity() + ","
+ hwLocation.getCounty() + "," + hwLocation.getFeatureName() + ","
+ hwLocation.getProvider();
printLog(HiLog.INFO, TAG, result);
showLocation.setText(result);
}
}
}
}
@Override
public void onLocationAvailability(LocationAvailability locationAvailability) {
super.onLocationAvailability(locationAvailability);
if (locationAvailability != null) {
printLog(HiLog.INFO, TAG, "onLocationAvailability isLocationAvailable:"
+ locationAvailability.isLocationAvailable());
}
}
};
private void requestLocationUpdates() {
LocationRequest locationRequest = buildLocationRequest();
fusedLocationClient .requestLocationUpdates(locationRequest, locationCallback)
.addOnSuccessListener(var -> {
printLog(HiLog.INFO, TAG, "requestLocationUpdatesWithCallback onSuccess");
})
.addOnFailureListener(e -> {
printLog(HiLog.INFO, TAG, "requestLocationUpdatesWithCallback onFailure:" + e.getMessage());
});
}
private void removeLocationUpdates() {
fusedLocationClient .removeLocationUpdates(locationCallback)
.addOnSuccessListener(var -> {
printLog(HiLog.INFO, TAG, "removeLocationUpdatesWithCallback onSuccess");
})
.addOnFailureListener(e -> {
printLog(HiLog.INFO, TAG, "removeLocationUpdatesWithCallback onFailure:" + e.getMessage());
});
}
Tap RequestLocationWithCallback in the demo app. The obtained location information will be displayed on the app screen.
Well done. You have successfully completed this codelab and learned how to:
For more information, please read related documents.
You can click here to download the source code.
