AV Pipeline Kit provides such capabilities as video playback, muting, and seeking for your app.
In this codelab, you will call MediaPlayer using a demo project to experience how to:
In this codelab, you will learn how to:
Android app development basics
To integrate AV Pipeline Kit, you must complete the following preparations:
plugins {
id 'com.android.application'
id 'com.huawei.agconnect'
}
// Set tool versions as required.
android {
compileSdkVersion 30
buildToolsVersion "30.0.2"
defaultConfig {
applicationId "com.example.avpipeline"
minSdkVersion 28
targetSdkVersion 28
versionCode 1
versionName "1.0"
testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
}
// Set minifyEnabled and proguardFiles.
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
}
}
// Set the Java version.
compileOptions {
sourceCompatibility JavaVersion.VERSION_1_8
targetCompatibility JavaVersion.VERSION_1_8
}
}
// Add dependencies.
dependencies {
implementation 'com.huawei.hms:avpipelinesdk:{version}'
implementation 'com.huawei.hms:avpipeline-aidl:{version}'
implementation 'com.huawei.hms:avpipeline-fallback-base:{version}'
}
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />private static final int MSG_INIT_FWK = 1;
private static final int MSG_CREATE = 2;
private static final int MSG_PREPARE_DONE = 3;
private static final int MSG_RELEASE = 4;
private static final int MSG_START_DONE = 5;
private static final int MSG_STOP_DONE = 6;
private static final int MSG_SET_DURATION = 7;
private static final int MSG_GET_CURRENT_POS = 8;
private static final int MSG_UPDATE_PROGRESS_POS = 9;
b) Set makeToastAndRecordLog to print logs and display toast notifications.
void makeToastAndRecordLog(int priority, String msg) {
Log.println(priority, TAG, msg);
Toast.makeText(this, msg, Toast.LENGTH_SHORT).show();
}
c) Define the initFwk() function for processing MSG_INIT_FWK messages. The method is used to initialize AV Pipeline Kit.
private void initFwk() {
if (AVPLoader.isInit()) {
Log.d(TAG, "avp framework already inited");
return;
}
boolean ret = AVPLoader.initFwk(getApplicationContext());
if (ret) {
makeToastAndRecordLog(Log.INFO, "avp framework load succ");
} else {
makeToastAndRecordLog(Log.ERROR, "avp framework load failed");
}
}
d) Define the startPlayMedia() method for processing MSG_CREATE messages. The method is used to create a MediaPlayer instance and start video playback.
private void startPlayMedia() {
if (mFilePath == null) {
return;
}
Log.i(TAG, "start to play media file " + mFilePath);
mPlayer = MediaPlayer.create(getPlayerType());
if (mPlayer == null) {
return;
}
setGraph();
if (getPlayerType() == MediaPlayer.PLAYER_TYPE_AV) {
int ret = mPlayer.setVideoDisplay(mVideoHolder.getSurface());
if (ret != 0) {
makeToastAndRecordLog(Log.ERROR, "setVideoDisplay failed, ret=" + ret);
return;
}
}
int ret = mPlayer.setDataSource(mFilePath);
if (ret != 0) {
makeToastAndRecordLog(Log.ERROR, "setDataSource failed, ret=" + ret);
return;
}
mPlayer.setOnStartCompletedListener(new MediaPlayer.OnStartCompletedListener() {
@Override
public void onStartCompleted(MediaPlayer mp, int param1, int param2, MediaParcel parcel) {
if (param1 != 0) {
Log.e(TAG, "start failed, return " + param1);
} else {
mPlayerHandler.sendEmptyMessage(MSG_START_DONE);
}
}
});
mPlayer.setOnPreparedListener(new MediaPlayer.OnPreparedListener() {
@Override
public void onPrepared(MediaPlayer mp, int param1, int param2, MediaParcel parcel) {
if (param1 != 0) {
Log.e(TAG, "prepare failed, return " + param1);
} else {
mPlayerHandler.sendEmptyMessage(MSG_PREPARE_DONE);
}
}
});
mPlayer.setOnPlayCompletedListener(new MediaPlayer.OnPlayCompletedListener() {
@Override
public void onPlayCompleted(MediaPlayer mp, int param1, int param2, MediaParcel parcel) {
Message msgTime = mMainHandler.obtainMessage();
msgTime.obj = mDuration;
msgTime.what = MSG_UPDATE_PROGRESS_POS;
mMainHandler.sendMessage(msgTime);
Log.i(TAG, "sendMessage duration");
mPlayerHandler.sendEmptyMessage(MSG_RELEASE);
}
});
setListener();
mPlayer.prepare();
}
e) Define the onPrepareDone() method for processing MSG_PREPARE_DONE messages. The method is used to start MediaPlayer after the execution of prepare is complete.
private void onPrepareDone() {
Log.i(TAG, "onPrepareDone");
if (mPlayer == null) {
return;
}
mPlayer.start();
}
f) Define the onStartDone() method for processing MSG_START_DONE messages. The method is used to update the duration and playback progress on the app's playback page.
private void onStartDone() {
Log.i(TAG, "onStartDone");
mIsPlaying = true;
mDuration = mPlayer.getDuration();
Log.d(TAG, "duration=" + mDuration);
mMainHandler = new Handler(Looper.getMainLooper()) {
@Override
public void handleMessage(Message msg) {
switch (msg.what) {
case MSG_UPDATE_PROGRESS_POS: {
long currMsec = (long) msg.obj;
Log.i(TAG, "currMsec: " + currMsec);
mProgressBar.setProgress((int) (currMsec / (double) mDuration * 100));
mTextCurMsec.setText(msecToString(currMsec));
}
case MSG_SET_DURATION: {
mTextTotalMsec.setText(msecToString(mDuration));
break;
}
}
super.handleMessage(msg);
}
};
mPlayerHandler.sendEmptyMessage(MSG_GET_CURRENT_POS);
mMainHandler.sendEmptyMessage(MSG_SET_DURATION);
}
g) Define the getCurrentPos() method for processing MSG_GET_CURRENT_POS messages. The method is used to obtain the total media file duration.
private void getCurrentPos() {
long currMsec = mPlayer.getCurrentPosition();
if (currMsec < mDuration) {
Message msgTime = mPlayerHandler.obtainMessage();
msgTime.obj = currMsec;
msgTime.what = MSG_UPDATE_PROGRESS_POS;
mMainHandler.sendMessage(msgTime);
}
mPlayerHandler.sendEmptyMessageDelayed(MSG_GET_CURRENT_POS, 300);
}
h) Define the stopPlayMedia() method for processing MSG_RELEASE messages. The method is used to stop the playback and destroy MediaPlayer.
private void stopPlayMedia() {
if (mFilePath == null) {
return;
}
Log.i(TAG, "stopPlayMedia doing");
mIsPlaying = false;
if (mPlayer == null) {
return;
}
mPlayerHandler.removeMessages(MSG_GET_CURRENT_POS);
mPlayer.stop();
mPlayer.reset();
mPlayer.release();
mPlayer = null;
Log.i(TAG, "stopPlayMedia done");
}
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_player);
mPlayerThread = new HandlerThread(TAG);
mPlayerThread.start();
if (mPlayerThread.getLooper() != null) {
mPlayerHandler = new Handler(mPlayerThread.getLooper()) {
@Override
public void handleMessage(Message msg) {
switch (msg.what) {
case MSG_GET_CURRENT_POS: {
getCurrentPos();
break;
}
case MSG_INIT_FWK: {
initFwk();
break;
}
case MSG_CREATE: {
mCountDownLatch = new CountDownLatch(1);
startPlayMedia();
break;
}
case MSG_START_DONE: {
onStartDone();
break;
}
case MSG_PREPARE_DONE: {
onPrepareDone();
break;
}
case MSG_RELEASE: {
stopPlayMedia();
mCountDownLatch.countDown();
break;
}
}
super.handleMessage(msg);
}
};
initAllView();
initSeekBar();
mPlayerHandler.sendEmptyMessage(MSG_INIT_FWK);
}
}
protected void initAllView() {
// Define a surface widget.
mSurfaceVideo = findViewById(R.id.surfaceViewup);
mVideoHolder = mSurfaceVideo.getHolder();
// Call the callback function to process the surface.
mVideoHolder.addCallback(new SurfaceHolder.Callback() {
// Callback executed when the surface is created.
public void surfaceCreated(SurfaceHolder holder) {
if (holder != mVideoHolder) {
Log.i(TAG, "holder unmatch, create");
return;
}
Log.i(TAG, "holder match, create");
mPlayerHandler.sendEmptyMessage(MSG_CREATE);
}
// Callback executed when changes are made to the surface.
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
}
// Callback executed when the surface is destroyed.
public void surfaceDestroyed(SurfaceHolder holder) {
if (holder != mVideoHolder) {
Log.i(TAG, "holder unmatch, destroy");
return;
}
Log.i(TAG, "holder match, destroy ... ");
mPlayerHandler.sendEmptyMessage(MSG_RELEASE);
try {
mCountDownLatch.await();
} catch (InterruptedException e) {
e.printStackTrace();
}
Log.i(TAG, "holder match, destroy done ");
}
});
// Define the start or stop button.
ImageButton btn = findViewById(R.id.startStopButton);
// Add a tap event.
btn.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
// Check whether mPlayer is null.
if (mPlayer == null) {
return;
}
// Check the status of mPlayer and perform operations accordingly.
if (mIsPlaying) {
mIsPlaying = false;
mPlayer.pause();
btn.setBackgroundResource(R.drawable.pause);
mPlayer.setVolume(0.6f, 0.6f);
} else {
mIsPlaying = true;
mPlayer.start();
btn.setBackgroundResource(R.drawable.play);
}
}
});
// Define the mute button.
ImageButton mutBtn = findViewById(R.id.muteButton);
mutBtn.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
if (mPlayer == null) {
return;
}
MediaPlayer.VolumeInfo volumeInfo = mPlayer.getVolume();
boolean isMute = mPlayer.getMute();
if (isMute) {
mutBtn.setBackgroundResource(R.drawable.volume);
mPlayer.setVolume(volumeInfo.left, volumeInfo.right);
isMute = false;
mPlayer.setMute(isMute);
} else {
mutBtn.setBackgroundResource(R.drawable.mute);
isMute = true;
mPlayer.setMute(isMute);
}
}
});
// Define the button for video selection.
Button selectBtn = findViewById(R.id.selectFileBtn);
selectBtn.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
Log.i(TAG, "user is choosing file");
// Create an intent to redirect users to the file manager.
Intent intent = new Intent(Intent.ACTION_OPEN_DOCUMENT);
intent.setType("*/*");
intent.addCategory(Intent.CATEGORY_DEFAULT);
intent.addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);
try {
startActivityForResult(Intent.createChooser(intent, "Please select a file."), 1);
} catch (ActivityNotFoundException e) {
e.printStackTrace();
Toast.makeText(PlayerActivity.this, "Please install the file manager.", Toast.LENGTH_SHORT).show();
}
}
});
}
private void initSeekBar() {
// Define seekbar for playback and add a listener for it.
mSeekBar = findViewById(R.id.seekBar);
mSeekBar.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {
@Override
public void onProgressChanged(SeekBar seekBar, int i, boolean b) {
}
@Override
public void onStartTrackingTouch(SeekBar seekBar) {
}
@Override
public void onStopTrackingTouch(SeekBar seekBar) {
// Obtain the percentage.
Log.d(TAG, "bar progress=" + seekBar.getProgress());
if (mDuration > 0 && mPlayer != null) {
long seekToMsec = (int) (seekBar.getProgress() / 100.0 * mDuration);
Log.d(TAG, "seekToMsec=" + seekToMsec);
mPlayer.seek(seekToMsec);
}
}
});
// Obtain the playback duration and total video duration.
mTextCurMsec = findViewById(R.id.textViewNow);
mTextTotalMsec = findViewById(R.id.textViewTotal);
// Define seekBar for volume.
mVolumeSeekBar = findViewById(R.id.volumeSeekBar);
mAudio = (AudioManager) getSystemService(Context.AUDIO_SERVICE);
mAudio.getStreamVolume(AudioManager.STREAM_MUSIC);
int currentVolume = mAudio.getStreamVolume(AudioManager.STREAM_MUSIC);
mVolumeSeekBar.setProgress(currentVolume);
// Associate the display position of seekBar with volume.
mVolumeSeekBar.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {
@Override
public void onProgressChanged(SeekBar seekBar, int progress, boolean fromUser) {
if (fromUser && (mPlayer != null)) {
MediaPlayer.VolumeInfo volumeInfo = mPlayer.getVolume();
volumeInfo.left = (float) (progress * 0.1);
volumeInfo.right = (float) (progress * 0.1);
mPlayer.setVolume(volumeInfo.left, volumeInfo.right);
}
}
@Override
public void onStartTrackingTouch(SeekBar seekBar) {
}
@Override
public void onStopTrackingTouch(SeekBar seekBar) {
}
});
}

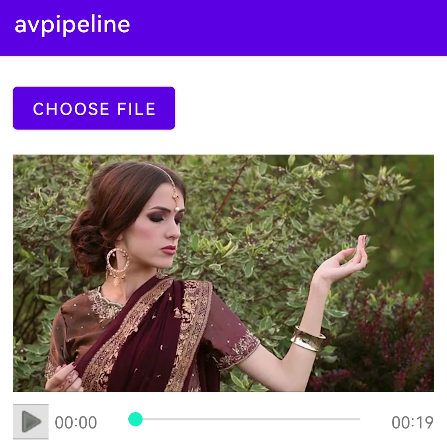

Video playback effect:
Well done. You have successfully completed this codelab and learned how to:
For more information, please click the following link:
Related documents
To download the sample code, please click the button below:
