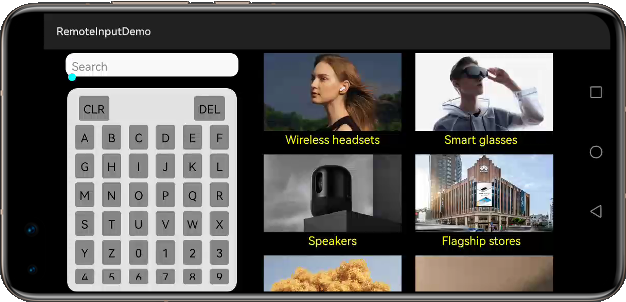

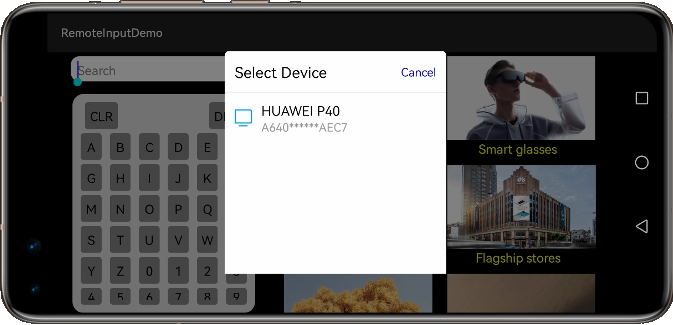

After you click the search box on the TV home screen, a dialog box is displayed (shown in Figure 2), asking you to select a mobile phone. After you select a mobile phone, the corresponding mobile phone immediately starts the input app screen. The core code for starting the input app screen on the mobile phone is as follows:

public void openRemoteAbility(String deviceId, String bundleName, String abilityName) {
    Intent intent = new Intent();
    String localDeviceId = KvManagerFactory.getInstance()
            .createKvManager(new KvManagerConfig(abilitySlice)).getLocalDeviceInfo().getId();
    intent.setParam("localDeviceId", localDeviceId);

    Operation operation = new Intent.OperationBuilder()
            .withDeviceId(deviceId)
            .withBundleName(bundleName)
            .withAbilityName(abilityName)
            .withFlags(Intent.FLAG_ABILITYSLICE_MULTI_DEVICE)
            .build();
    intent.setOperation(operation);
    abilitySlice.startAbility(intent);
}

In the preceding code, localDeviceId indicates the TV's device ID, which is used as the parameter for starting the mobile phone FA and is passed to the remote control UI for pairing with the corresponding TV. When starting the remote control FA, use the initConnManager() method to connect to RemoteService on the TV. The core code for connecting to RemoteService is as follows:

public void connectPa(Context context, String deviceId) {
    if (deviceId != null && !deviceId.trim().isEmpty()) {
        Intent connectPaIntent = new Intent();
        Operation operation = new Intent.OperationBuilder()
                .withDeviceId(deviceId)
                .withBundleName(context.getBundleName())
                .withAbilityName(RemoteService.class.getName())
                .withFlags(Intent.FLAG_ABILITYSLICE_MULTI_DEVICE)
                .build();
        connectPaIntent.setOperation(operation);
        conn = new IAbilityConnection() {
            @Override
            public void onAbilityConnectDone(ElementName elementName, IRemoteObject remote, int resultCode) {
                LogUtils.info(TAG, "===connectRemoteAbility done");
                proxy = new MyRemoteProxy(remote);
            }

            @Override
            public void onAbilityDisconnectDone(ElementName elementName, int resultCode) {
                LogUtils.info(TAG, "onAbilityDisconnectDone......");
                proxy = null;
            }
        };
        context.connectAbility(connectPaIntent, conn);
    }
}

After the connection is set up, you can perform input, search, and movement operations by using the corresponding buttons on the remote control UI.

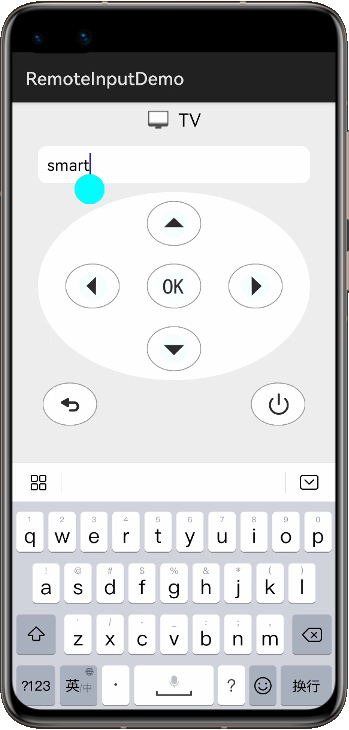

Related click events are bound when the input app on the mobile phone is started and the screen is initialized. The input app on the mobile phone can perform the following control operations: Up, Down, Left, Right, OK, Back, and Close.

private void initListener() {
    // Listen to text changes and perform remote synchronization.
    textField.addTextObserver((ss, ii, i1, i2) -> {
        Map<String, String> map = new HashMap<>(INIT_SIZE);
        map.put("inputString", ss);
        connectManager.sendRequest(ConnectManagerIml.REQUEST_SEND_DATA, map);
    });
    okButton.setClickedListener(component -> {
        // Listen to a click event on the OK button.
        buttonClickSound();
        String searchString = textField.getText();
        Map<String, String> map = new HashMap<>(INIT_SIZE);
        map.put("inputString", searchString);
        connectManager.sendRequest(ConnectManagerIml.REQUEST_SEND_SEARCH, map);
    });
    leftButton.setClickedListener(component -> {
        // Listen to a click event on the Left button.
        sendMoveRequest(Constants.MOVE_LEFT);
    });
    rightButton.setClickedListener(component -> {
        // Listen to a click event on the Right button.
        sendMoveRequest(Constants.MOVE_RIGHT);
    });
    upButton.setClickedListener(component -> {
        // Listen to a click event on the Up button.
        sendMoveRequest(Constants.MOVE_UP);
    });
    downButton.setClickedListener(component -> {
        // Listen to a click event on the Down button.
        sendMoveRequest(Constants.MOVE_DOWN);
    });
    goBackButton.setClickedListener(component -> {
        // Listen to a click event on the Back button.
        sendMoveRequest(Constants.GO_BACK);
    });
    closeButton.setClickedListener(component -> {
        // Listen to a click event on the Close button.
        sendMoveRequest(Constants.GO_BACK);
        terminateAbility();
    });
}

Send the operation request from the remote mobile phone to the TV using the distributed task scheduling capability and common event management capability.

private void sendMoveRequest(String direction) {
    buttonClickSound();
    Map<String, String> map = new HashMap<>(INIT_SIZE);
    map.put("move", direction);
    connectManager.sendRequest(ConnectManagerIml.REQUEST_SEND_MOVE, map);
}

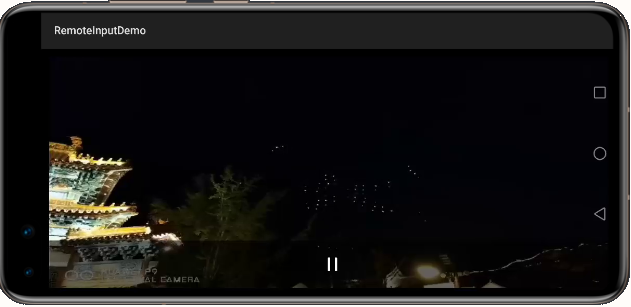

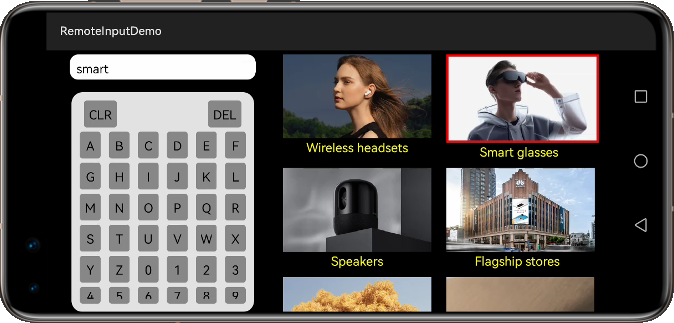

The TV receives the common events and processes them. If the received event is text input, the input content is filled in the TV search box. If the received event is a movement, the focus moves to the specified position. If the received event is OK, the TV executes the search logic when the focus is on the search box and plays the program when the focus is on the program component. If the received event is Back, the TV home screen is displayed, and the focus is moved to the search box.

class MyCommonEventSubscriber extends CommonEventSubscriber {
    MyCommonEventSubscriber(CommonEventSubscribeInfo info) {
        super(info);
    }

    @Override
    public void onReceiveEvent(CommonEventData commonEventData) {
        Intent intent = commonEventData.getIntent();
        int requestType = intent.getIntParam("requestType", 0);
        String inputString = intent.getStringParam("inputString");
        if (requestType == ConnectManagerIml.REQUEST_SEND_DATA) {
            tvTextInput.setText(inputString);
        } else if (requestType == ConnectManagerIml.REQUEST_SEND_SEARCH) {
            if (componentPointDataNow.getPointX() == 0) {
                // Call the search method of the TV.
                searchMovies(tvTextInput.getText());
                return;
            }

            // Call the TV method to play a movie.
            abilityMgr.playMovie(getBundleName(), MOVIE_PLAY_ABILITY);
        } else {
            // Call the TV method to move the focus.
            String moveString = intent.getStringParam("move");
            MainCallBack.movePoint(MainAbilitySlice.this, moveString);
        }
    }
}

Implement the focus moving method. To prevent concurrency due to consecutive touches on the arrow keys, add a lock to this method. Clear the focus effect of the previous focus and set the focus effect of the new focus.

public void move(int pointX, int pointY) {
    MOVE_LOCK.lock();
    try {
        // Set the focus movement.
        if (pointX == 0 && componentPointDataNow.getPointX() > 0) {
            scrollView.fluentScrollByY(pointY * size.height);
        }
        if (componentPointDataNow.getPointX() == 0 && pointX == 1) {
            scrollView.scrollTo(0, 0);
        }

        // Set the background.
        if (componentPointDataNow.getPointX() + pointX == 0) {
            setBackGround(componentPointDataNow.getPointX() + pointX, 1);
        } else {
            setBackGround(componentPointDataNow.getPointX() + pointX, componentPointDataNow.getPointY() + pointY);
        }
    } finally {
        MOVE_LOCK.unlock();
    }
}

Implement the search method. Clear the previous search result and background effect, and set a new search result and background effect.

private void searchMovies(String text) {
    if (text == null || "".equals(text)) {
        return;
    }

    // Clear the last search result and background effect.
    clearHistroyBackGround();

    for (ComponentPointData componentPointData : ComponentPointDataMgr.getComponentPointDataMgrs()) {
        if (MovieSearchUtils.isContainMovie(componentPointData.getMovieName(), text)
                || MovieSearchUtils.isContainMovie(componentPointData.getMovieFirstName(), text)) {
            movieSearchList.add(componentPointData);
            Component component = findComponentById(componentPointData.getComponentId());
            component.setPadding(SEARCH_PADDING, SEARCH_PADDING, SEARCH_PADDING, SEARCH_PADDING);
        }
    }

    if (movieSearchList.size() > 0) {
        componentPointDataNow = movieSearchList.get(0);
        Component component = findComponentById(componentPointDataNow.getComponentId());
        component.setPadding(FOCUS_PADDING, FOCUS_PADDING, FOCUS_PADDING, FOCUS_PADDING);
    } else {
        Component component = findComponentById(componentPointDataNow.getComponentId());
        component.requestFocus();
    }
}

This codelab introduces the device connection and remote control of the distributed remote control. It intuitively shows the distributed feature of HarmonyOS. Through this codelab, you've learnt how to start distributed apps, how to receive and send common events, and how to implement distributed task scheduling. You've also learnt the UI layout and video playback functions.
During distributed app development, you need to learn and master cross-device collaboration, distributed task scheduling, and common event notification of HarmonyOS.

Well done! You have completed this codelab and learned:

• Usage of Common Layouts
• Distributed Scheduler
• Common Events and Notifications
