MDM Engine enables in-depth management of Huawei devices for authorized apps.

Contents to be implemented by Codelab

In this codelab, you will create a demo project, integrate the MDM Engine SDK into the project, and call the APIs provided by MDM Engine to implement security management on the mobile device and apps.

What Will You Learn

In this codelab, you will learn how to:

• Build an app and integrate the MDM Engine SDK into the app.
• Call the APIs of MDM Engine.

Hardware Requirements

• A computer (desktop or laptop) running Windows 7 or Windows 10
• A Huawei device (with the USB cable) used for debugging

Software Requirements

• JDK 1.8 or later
• Android Studio 3.2 or later

Required Knowledge

• Android app development basics
• Knowledge about Android device administration

The MDM APIs can be used only after permissions are granted. For details about the authorization, please refer to Preparations.

1. Import MDM Engine to the project.

• Modify the project-level build.gradle file and add the URL of the Maven repository: https://developer.huawei.com/repo.

  buildscript {
      repositories {
          google()
          jcenter()
          maven { url 'https://developer.huawei.com/repo/' }
      }
      dependencies {
          classpath "com.android.tools.build:gradle:4.1.1"
      }
  }

  allprojects {
      repositories {
          google()
          jcenter()
          maven { url 'https://developer.huawei.com/repo/' }
      }
  }



• Modify the module-level build.gradle file and add the SDK dependencies. Replace 11.1.0.310 in the example with the actually used version number of MDM Engine.

  dependencies {
      compileOnly 'com.huawei.mdm:mdmkit:11.1.0.310'
  }



• Perform Gradle synchronization, and MDM Engine will be imported.

2. Call the APIs of MDM Engine.

For example, the following example shows how to call the APIs for disabling Wi-Fi and screenshot.

private class SampleOnClickListener implements OnClickListener {
    @Override
    public void onClick(View view) {
        try {
            switch (view.getId()) {
                case R.id.disableWifi:
                    mDeviceRestrictionManager.setWifiDisabled(mAdminName, true);
                    break;
                case R.id.enableWifi:
                    mDeviceRestrictionManager.setWifiDisabled(mAdminName, false);
                    break;
                case R.id.disableScreenCapture:
                    mDeviceRestrictionManager.setScreenCaptureDisabled(mAdminName, true);
                    break;
                case R.id.enableScreenCapture:
                    mDeviceRestrictionManager.setScreenCaptureDisabled(mAdminName, false);
                    break;
                ......
                default:
                    break;
            }
        } catch (NoSuchMethodError error) {
            Toast.makeText(getApplicationContext(), getString(R.string.not_support), Toast.LENGTH_SHORT).show();
        } catch (SecurityException securityException) {
            Toast.makeText(getApplicationContext(), getString(R.string.no_permission), Toast.LENGTH_SHORT).show();
        }
        updateState();
    }

3. Add the permission to use the APIs of MDM Engine to the AndroidManifest.xml file.

For example, add the permissions required for the MDM Engine APIs called in the preceding steps.

 <?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.huawei.mdm.sample">
    <uses-permission android:name="com.huawei.permission.sec.MDM" />
    <uses-permission android:name="com.huawei.permission.sec.MDM_WIFI" />
    <uses-permission android:name="com.huawei.permission.sec.MDM_CAPTURE_SCREEN" />
    ......
</manifest>

4. Build the project.

5. Apply for authorization.

For details, please refer to Preparations.

6. Run the APK.

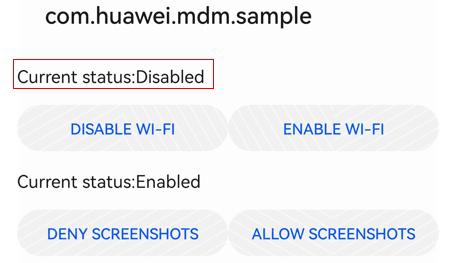

After the authorized APK is installed on the Huawei device, you can view the running results.

Well done. You have successfully completed this codelab and learned how to:

• Build an app and integrate the MDM Engine SDK into the app.
• Call the APIs of MDM Engine.

For more information, please click the following link:
Sample Code
