Overview

Map Kit is the most common service in lifestyle apps. In this application, a map kit was used to track taxis and routes. The user location can be displayed on the map, the desired destination can be selected on the map, icons can be added to the desired location (nearby taxis are shown.), the route and the movement on the route can be displayed on the map. These features were included in the application.

The destination and starting point of the route can be determined with the site kit. This process was achieved by using the place search feature of the Site Kit in the application. Site Kit allows your app to provide users convenient yet secure access to diverse location-based services. Also, the user location can be provided with the Location Kit to set as the route start point. Location Kit allows you to provide flexible location-based services for global users. The user's movement on the route can be tracked with the location kit and its progress can be displayed on the map. In this application, we made the progress on the route as an animation to be an example for visuality.

To use those kits, you will need to:

• Register a HUAWEI ID on the HUAWEI Developer. Then, create an app, configure the app information, and enable the necessary kits and services on the HUAWEI Developer Console.
• Create a project with Android Studio IDE, and configure the Map Kit SDK, Site Kit SDK, Location Kit SDK.

What You Will Need

Hardware Requirements

• A Huawei phone with HMS Core (APK) 5.0.0.300 or later and EMUI 5.0 or later installed. If a user is using a device without HMS Core (APK) 5.0.0.300 or later, the user will be directed to install it when it is called by your app.
• A (desktop or laptop) computer that runs the Windows operating system

Software Requirements

• Java JDK 1.8 or later
• Android Studio 4.X
• Android SDK package
• Android API Level 21 or higher
• HMS Core (APK) 4.0.2.300 or later
• EMUI 8.1 or later

Required Knowledge

• Android app development basics
• Kotlin development basics

What You Will Learn

In this codelab, you will learn how to:

• Integrate Site Kit to search nearby sites.
• Combine Site Kit and Map Kit to show sites on the map.

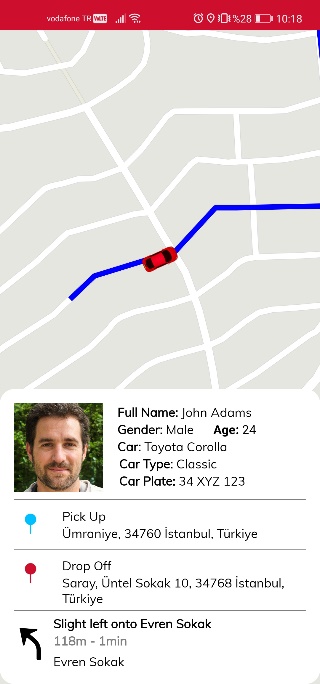

• Using markers on Map Kit and move them on the map (Route tracking).
• Retrieving current user location and use it with live data.

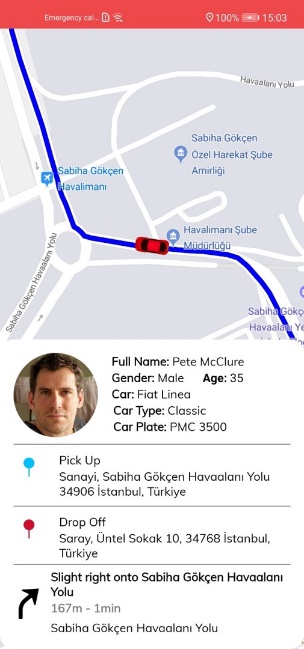

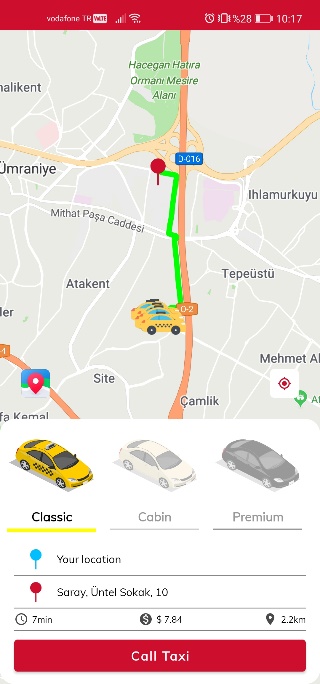

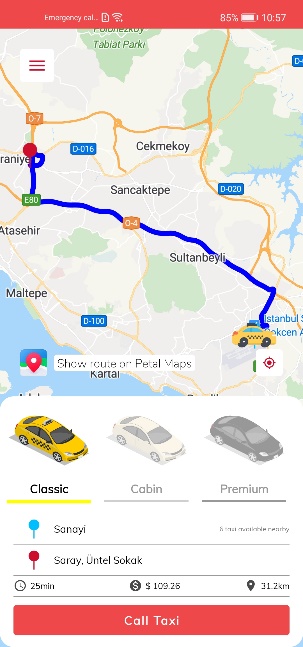

• Creating routes on the map and calculating ETA (estimated time of arrival – route duration).

Create an app in AppGallery Connect and obtain the project configuration file agconnect-services.json. The procedure is as follows:

For details, please refer to Preparations for Integrating HUAWEI HMS Core

You can download the sample code for HiTaxi at GitHub.

Note: You need to register as a developer to complete the operations above.

Enabling Kits and Services

1. Sign in to AppGallery Connect, click My Projects, find your project, and click your desired app. On the page that is displayed, go to Project settings > Manage APIs.
2. Toggle on the switches for Map Kit, Site Kit anLocation Kit.**t.

Integrating the HMS Core SDK

For Android Studio, Huawei provides the HMS Core SDK that can be integrated by using the Maven repository. Before developing your app, you will need to integrate the HMS Core SDK into your Android Studio project.

1. Sign in to AppGallery Connect, click My Projects, find your project, and click your desired app. On the page that is displayed, go to Project settings > General information.
2. In the App information area, click agconnect-services.json to download the configuration file.

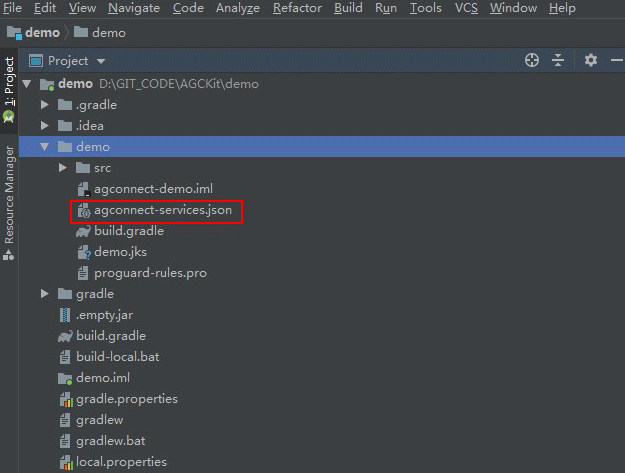

3. Copy the agconnect-service.json file to the project root to the app directory of your Android Studio project.

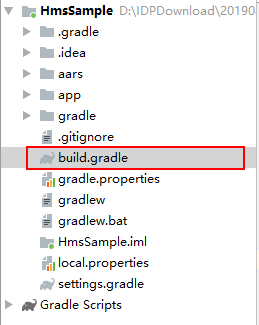

4. Open the Android Studio project-level build.gradle file.

5. In the build.gradle file of your Android Studio project, add the configurations.

   allprojects {
       repositories {
           google()
           jcenter()
           maven {url 'https://developer.huawei.com/repo/'}
       }
   }

   buildscript {
       repositories {
           google()
           jcenter()

           maven {url 'https://developer.huawei.com/repo/'}
       }
   }

   buildscript {
       dependencies {
           classpath 'com.android.tools.build:gradle:4.1.2'
           classpath 'com.huawei.agconnect:agcp:1.4.2.300'
       }
   }

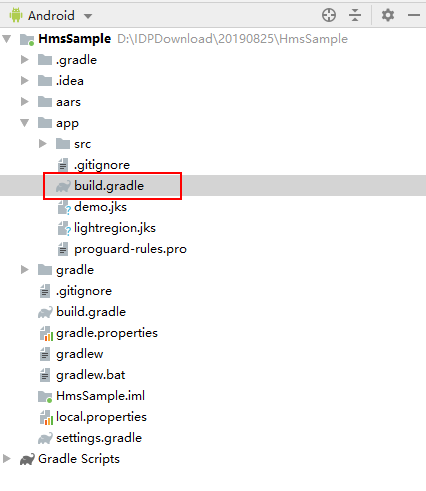

6. Open the Android Studio app-level build.gradle file.

7. In the build.gradle file in the app directory of your Android Studio project, add the configurations.<

   dependencies {
        implementation 'com.huawei.hms:site:{version}'
        implementation 'com.huawei.hms:maps:{version}'
        implementation 'com.huawei.hms:location:{version}'
        implementation 'com.huawei.agconnect:agconnect-core:{version}'
   }



8. Click Sync Now to synchronize the configurations.

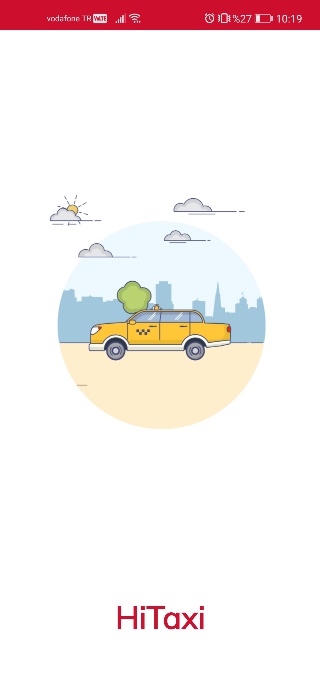

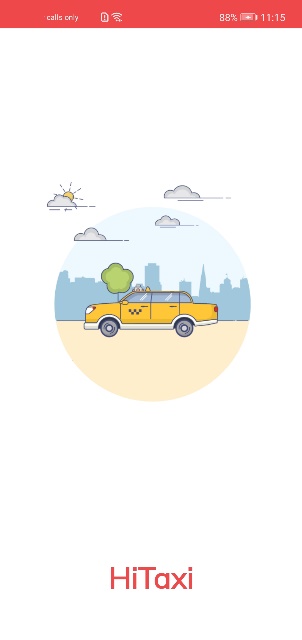

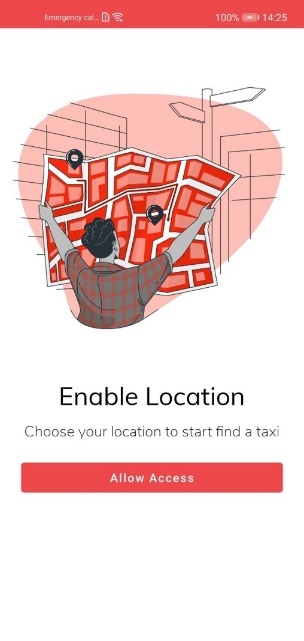

In this codelab, we will create a Splash Page to check if location services are enabled by phone. We will create a page for requesting permission to use location services in the app. Also, we will create a page with a map to display the map, locations, routes, and nearby taxis. This page will be the application's main page. We will add a search bar for Site Kit and we will add a bottom sheet dialog to choosing taxi types, displaying ETA, estimated charge, and driver's information.

Step 1: Since this app is designed to provide users with ease-of-use in their travels, the app includes a location search feature which is included in the Site Kit. Please refer to Site Kit documentation for more information on how to integrate. Site Kit Location Search is accessed through Intent and we need to catch its results.

Kotlin:

override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
    super.onViewCreated(view, savedInstanceState)
    initSearchIntent()
}

private fun initSearchIntent() {
    searchIntent = SearchIntent()
    searchIntent.setApiKey(URLEncoder.encode(BuildConfig.API_KEY, "UTF-8"))
}

Java:

@Override
public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
    super.onViewCreated(view, savedInstanceState);
    initSearchIntent();
}

private void initSearchIntent() {
    searchIntent = SearchIntent();
    searchIntent.setApiKey(URLEncoder.encode(BuildConfig.API_KEY, "UTF-8"));
}

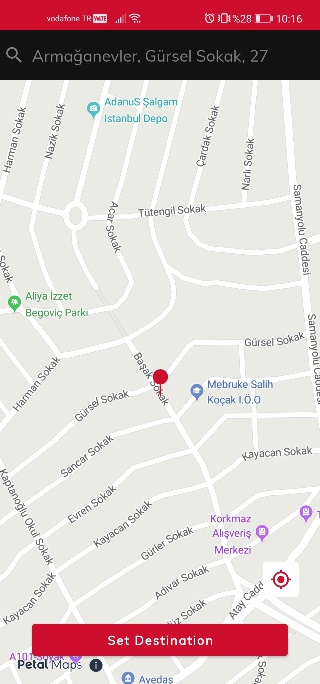

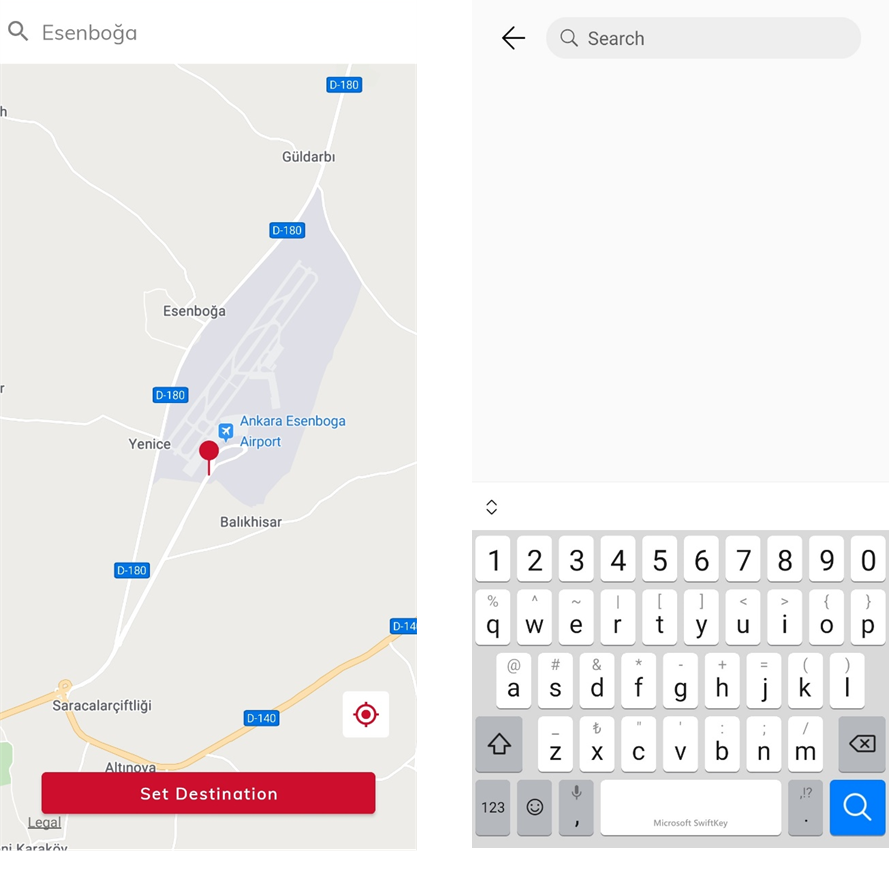

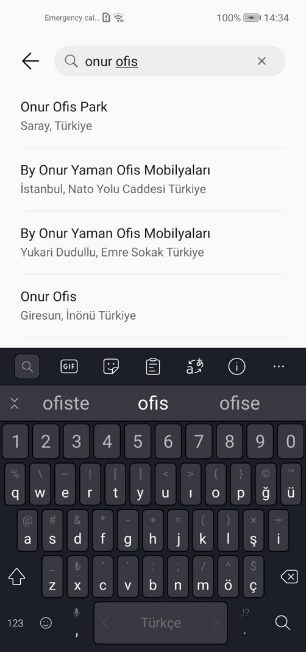

Step 2: Start Search Service on a related action. In this case, a search bar click.

Kotlin:

fragmentViewBinding.searchLayout.setOnClickListener {
        showSiteSearchFragment()
}

Java:

fragmentViewBinding.searchLayout.setOnClickListener(view -> {
    showSiteSearchFragment();
});

Kotlin:

private fun showSiteSearchFragment() {
    val intent = searchIntent.getIntent(requireActivity())
    startActivityForResult(intent, SearchIntent.SEARCH_REQUEST_CODE)
}

Java:

private void showSiteSearchFragment(){
    Intent intent = searchIntent.getIntent(requireActivity());
    startActivityForResult(intent, SearchIntent.SEARCH_REQUEST_CODE);
}

Step 3: Set the onActivityResult method to catch the search results. The search bar is also updated when the Search Result is retrieved.

Kotlin:

override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
    super.onActivityResult(requestCode, resultCode, data)
    if (SearchIntent.SEARCH_REQUEST_CODE == requestCode) {
        if (SearchIntent.isSuccess(resultCode)) {
            val site = searchIntent.getSiteFromIntent(data)
            val latLng = LatLng(site.location.lat, site.location.lng)
            huaweiMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLng, 18f))
            saveAndShowAddress(latLng)
        }
    }
}

private fun saveAndShowAddress(latLng: LatLng) {
    fragmentViewBinding.searchAddressText.text = homeViewModel.getAddress(latLng)
}

Java:

@Override
protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
    super.onActivityResult(requestCode, resultCode, data);
    if(SearchIntent.SEARCH_REQUEST_CODE == requestCode){
        Site site = searchIntent.getSiteFromIntent(data);
        LatLng latLng = new LatLng(site. location.lat, site.location.lng);
        huaweiMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLng, 18f));
        saveAndShowAddress(latLng);
    }
}

private void saveAndShowAddress(LatLng latLng) {
    fragmentViewBinding.searchAddressText.setText(homeViewModel.getAddress(latLng));
}

Step 1: We need to add a map view in our layout first and give it an id to use in our classes.

<com.huawei.hms.maps.MapView
    android:id="@+id/huaweiMap"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    map:cameraTargetLat="41.009314"
    map:cameraTargetLng="29.003253"
    map:cameraZoom="10"
    map:mapType="normal"
    map:uiCompass="true"
    map:uiZoomControls="true" />

Step 2: To initialize our map, we need to call getMapAsync() method after our view is created.

Kotlin:

override fun setupUi() {
    super.setupUi()
    lottieDialog = LottieDialog.Builder().setContext(requireContext())
        .setLottieRawId(R.raw.route_animation).build()
    locationDialog = LottieDialog.Builder().setContext(requireContext())
        .setLottieRawId(R.raw.taxi_animation).build()
    fragmentViewBinding.huaweiMap.apply {
        onCreate(null)
        getMapAsync(this@HomeFragment)
        setupBookingBottomSheet()
    }
}

Java:

@Override
public void setupUi() {
    super.setupUi();

    lottieDialog = new LottieDialog(R.raw.route_animation, requireContext());
    locationDialog = new LottieDialog(R.raw.taxi_animation, requireContext());

    fragmentViewBinding.huaweiMap.onCreate(null);
    fragmentViewBinding.huaweiMap.getMapAsync(this);
    setupBookingBottomSheet();
}

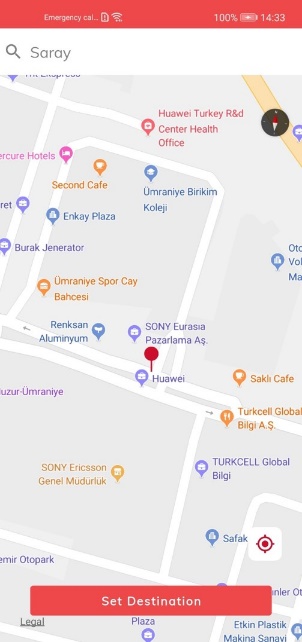

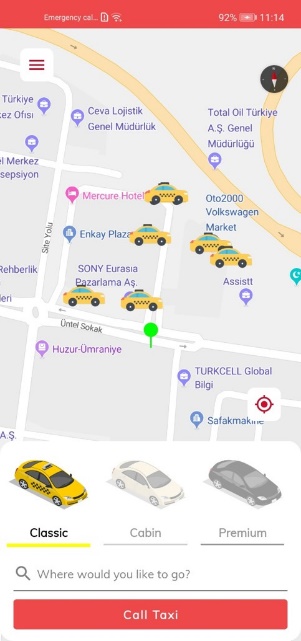

Step 3: To add any marker on our map, we need to define a marker object with necessary and desired settings. To define the settings of the marker, use MarkerOptions().

Kotlin:

fun addTaxi(latLng: LatLng) {
    if (marker != null) {
        marker!!.remove()
    }
    val startLat = latLng.latitude - 0.001
    val endLat = latLng.latitude + 0.001
    val startLng = latLng.longitude - 0.001
    val endLng = latLng.longitude + 0.001
    for (i in 0..5) {
        marker = huaweiMap.addMarker(
            MarkerOptions().position(
                LatLng(
                    Random.nextDouble(startLat, endLat),
                    Random.nextDouble(startLng, endLng)
                )
            )
                .anchor(0.5f, 0.9f)
                .title("HiTaxi")
                .icon(
                    BitmapDescriptorFactory.fromBitmap(
                        ContextCompat.getDrawable(
                            requireContext(),
                            R.drawable.ic_taxi
                        )?.toBitmap()
                    )
                )
        )
    }
}

Java:

private void addTaxi(LatLng latLng) {
    if (marker != null) {
        marker.remove();
    }

    double startLat = latLng.latitude - 0.001;
    double endLat = latLng.latitude + 0.001;
    double startLng = latLng.longitude - 0.001;
    double endLng = latLng.longitude + 0.001;

    for (int i = 0; i <= 5; i++) {

        double random = new Random().nextDouble();
        double randomLat = startLat + (random * (endLat - startLat));
        double randomLng = startLng + (random * (endLng - startLng));

        Bitmap bitmap = BitmapFactory.decodeResource(requireContext().getResources(), R.drawable.ic_taxi);

        MarkerOptions markerOptions = new MarkerOptions().position(new LatLng(randomLat, randomLng))
                .anchor(0.5f, 0.9f)
                .title("HiTaxi")
                .icon(BitmapDescriptorFactory.fromBitmap(bitmap));

        marker = huaweiMap.addMarker(
                markerOptions);
    }
}

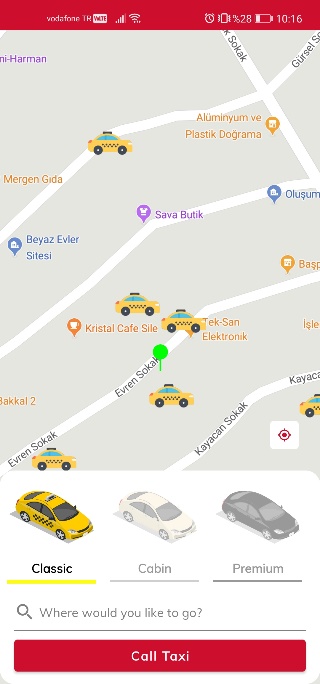

Note: In this demo app, taxis are added as markers and randomly added close to user's location.

Step 4: To move the map programmatically, huaweiMap.moveCamera() method is used.

Kotlin:

private fun observeAndAddTaxi() {
    homeViewModel.lastKnownLocation.observe(viewLifecycleOwner) {
        it?.let { latLang ->
            if (homeViewModel.isDestinationSelectedBefore.value == false) {
                huaweiMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLang, 18f))
                huaweiMap.clear()
                addTaxi(latLang)
                taxiFinalLocation = latLang
            }
        }
    }
}

Java:

private void observeAndAddTaxi() {
    homeViewModel.getLastKnownLocation().observe(getViewLifecycleOwner(), latLng -> {
        if (homeViewModel.isDestinationSelectedBefore().getValue() == false) {
            huaweiMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLng, 18f));
            huaweiMap.clear();
            addTaxi(latLng);
            taxiFinalLocation = latLng;
        }
    });
}

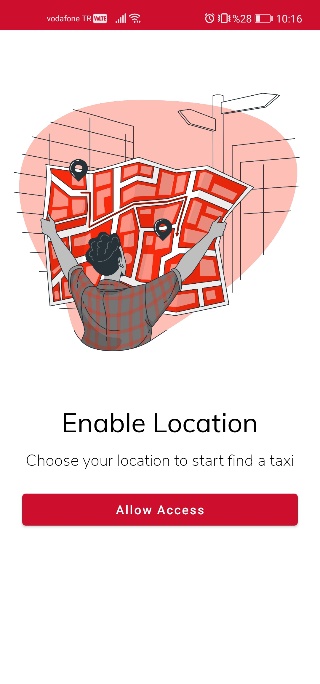

Step 1: Add below permissions to the AndroidManifest file as they are mandatory.

<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

Step 2: Check for permissions.

Kotlin:

fun checkPermission(): Boolean {
    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
        if (ActivityCompat.checkSelfPermission(
                context,
                android.Manifest.permission.ACCESS_FINE_LOCATION
            ) != PackageManager.PERMISSION_GRANTED
            && ActivityCompat.checkSelfPermission(
                context,
                android.Manifest.permission.ACCESS_COARSE_LOCATION
            ) != PackageManager.PERMISSION_GRANTED
        ) {
            return false
        }
    }
    return true
}

Java:

public boolean checkPermission(){
    if (Build.VERSION.SDK_INT <= Build.VERSION_CODES.M) {
        if (ActivityCompat.checkSelfPermission(this,
                android.Manifest.permission.ACCESS_FINE_LOCATION) != PackageManager.PERMISSION_GRANTED
                && ActivityCompat.checkSelfPermission(this,
                android.Manifest.permission.ACCESS_COARSE_LOCATION) != PackageManager.PERMISSION_GRANTED) {
            return false;
        }
    } else {
        if (ActivityCompat.checkSelfPermission(this,
                android.Manifest.permission.ACCESS_FINE_LOCATION) != PackageManager.PERMISSION_GRANTED
                && ActivityCompat.checkSelfPermission(this,
                Manifest.permission.ACCESS_COARSE_LOCATION) != PackageManager.PERMISSION_GRANTED) {
            return false;
        }
    }
    return true;
}

Step 3: Create a "FusedLocationProviderClient" instance to call location-related functions. Then try to get the last location of the user.

Kotlin:

fun getLastLocation(lastKnownLocation: (LatLng) -> Unit) {
    var mFusedLocationProviderClient: FusedLocationProviderClient? = null
    mFusedLocationProviderClient = LocationServices.getFusedLocationProviderClient(context)

    var latLng: LatLng
    try {
        val lastLocation: Task = mFusedLocationProviderClient!!.lastLocation
        lastLocation.addOnSuccessListener {
            if (it == null) {
                latLng = LatLng(0.0, 0.0)
                lastKnownLocation(latLng)
            } else {
                latLng = LatLng(it.latitude, it.longitude)
                lastKnownLocation(latLng)
            }
        }.addOnFailureListener {
            Log.e(TAG, "getLastLocation exception:" + it.message)
        }
    } catch (e: Exception) {
        Log.e(TAG, "getLastLocation exception:" + e.message)
    }
}

Java:

public LatLng getLastLocation() {
    LatLng lastKnownLocation = new LatLng(0, 0);
    try {
        Task<Location> lastLocation = mFusedLocationProviderClient.getLastLocation();
        lastLocation.addOnSuccessListener(new OnSuccessListener<Location>() {
            @Override
            public void onSuccess(Location location) {
                if (location == null) {
                    lastKnownLocation.latitude = 0;
                    lastKnownLocation.longitude = 0;
                } else {
                    lastKnownLocation.latitude = location.getLatitude();
                    lastKnownLocation.longitude = location.getLongitude();
                }
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                Log.e(TAG, "getLastLocation exception:" + e.getMessage());
            }
        });
    } catch (Exception e) {
        Log.e(TAG, "getLastLocation exception:" + e.getMessage());
    }
    return lastKnownLocation;
}

Step 4: The location function of the Location Kit depends on the device location settings. For example, if the location function is disabled on a device, your app cannot obtain the device location. Therefore, it is recommended that your app check whether the device settings meet the location requirements before continuously obtaining the device location. Location Kit provides the function of checking device location settings. After that, you can continuously obtain the device location using "requestLocationUpdates" function.

Kotlin:

fun checkLocationSettings(lastKnownLocation: (LatLng) -> Unit) {
    val settingsClient = LocationServices.getSettingsClient(context)
    val fusedLocationProviderClient: FusedLocationProviderClient
    val mLocationRequest: LocationRequest
    var latLng: LatLng


    fusedLocationProviderClient = LocationServices.getFusedLocationProviderClient(context)
    val mLocationCallback: LocationCallback
    mLocationCallback = object : LocationCallback() {
        override fun onLocationResult(locationResult: LocationResult) {
            latLng = LatLng(
                locationResult.lastHWLocation.latitude,
                locationResult.lastHWLocation.longitude
            )
            lastKnownLocation(latLng)
        }
    }

    val builder = LocationSettingsRequest.Builder()
    mLocationRequest = LocationRequest()
    builder.addLocationRequest(mLocationRequest)
    val locationSettingsRequest = builder.build()
    settingsClient.checkLocationSettings(locationSettingsRequest)
        .addOnSuccessListener {
            fusedLocationProviderClient
                .requestLocationUpdates(
                    mLocationRequest,
                    mLocationCallback,
                    Looper.getMainLooper()
                )
        }
        .addOnFailureListener { e ->
            val statusCode = (e as ApiException).statusCode
            when (statusCode) {
                LocationSettingsStatusCodes.RESOLUTION_REQUIRED -> try {
                    val rae = e as ResolvableApiException
                    rae.startResolutionForResult(context, 0)
                    lastKnownLocation(LatLng(0.0, 0.0))
                } catch (sie: IntentSender.SendIntentException) {
                    lastKnownLocation(LatLng(0.0, 0.0))
                }
            }
        }
}

Java:

public void checkLocationSettings(){
    LocationSettingsRequest.Builder builder = new LocationSettingsRequest.Builder();
    mLocationRequest = new LocationRequest();
    builder.addLocationRequest(mLocationRequest);
    LocationSettingsRequest locationSettingsRequest = builder.build();
    LatLng lastKnownLocation = new LatLng(0, 0);

    LocationCallback mLocationCallback;
    mLocationCallback = new LocationCallback() {
        @Override
        public void onLocationResult(LocationResult locationResult) {
            if (locationResult != null) {
                lastKnownLocation.latitude = locationResult.getLastLocation().getLatitude();
                lastKnownLocation.longitude = locationResult.getLastLocation().getLongitude();
            }
        }
    };

    settingsClient.checkLocationSettings(locationSettingsRequest)
            .addOnSuccessListener(new OnSuccessListener<LocationSettingsResponse>() {
                @Override
                public void onSuccess(LocationSettingsResponse locationSettingsResponse) {
                    mFusedLocationProviderClient
                            .requestLocationUpdates(
                                    mLocationRequest,
                                    mLocationCallback,
                                    Looper.getMainLooper());

                }
            })
            .addOnFailureListener(new OnFailureListener() {
                @Override
                public void onFailure(Exception e) {
                    int statusCode = ((ApiException) e).getStatusCode();
                    switch (statusCode) {
                        case LocationSettingsStatusCodes.RESOLUTION_REQUIRED:
                            try {
                                ResolvableApiException rae = (ResolvableApiException) e;
                                rae.startResolutionForResult(this, 0);
                            } catch (IntentSender.SendIntentException sie) {
                            }
                            break;
                    }
                }
            });
}

Step 5: To stop obtaining device location you can use "removeLocationUpdates" function.

Kotlin:

private fun stopLocationUpdates() {
    fusedLocationProviderClient.removeLocationUpdates(locationCallback)
}

Java:

public void stopLocationUpdates() {
    mFusedLocationProviderClient.removeLocationUpdates(locationCallback);
}

Upon completing the essential parts of the code, connect your mobile device to the PC and enable the USB debugging mode. In the Android Studio window, click icon to run the project you have created in Android Studio to generate an APK. Then install the APK on the mobile device.

• Open the app upon installing it to your device

• The app will ask for location permission. Also will ask for enabling it.

• On the home page click the search button and pick on the map or search with Site Kit.

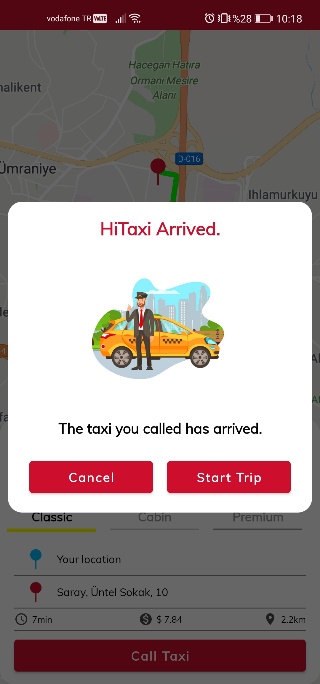

• After you receive the results, click call taxi and wait for a taxi to arrive then start a trip.

• Trip animation will be shown on the map.

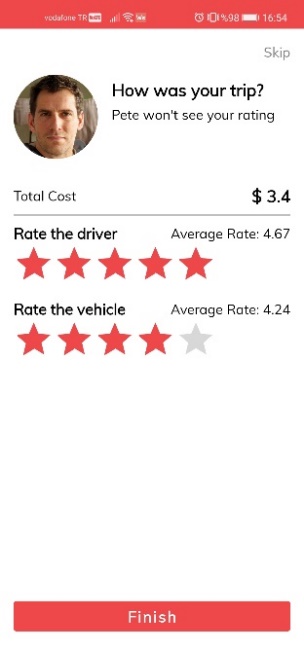

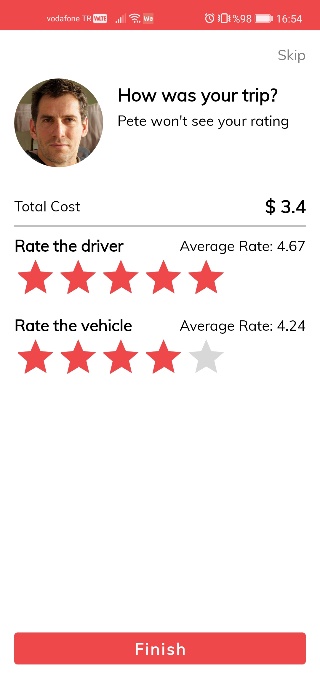

• When the taxi reaches the final destination trip will end and the app will show a rating page.


Well done. You have successfully completed this codelab and learned:

• How to integrate Map kit and Location kit to have a map-based app with user current location.
• How to integrate Site Kit to search for addresses.
• How to use Kotlin and MVVM architecture.

For more information, please click the following links:

Site Kit

• API Reference
• FAQs
• Development Guide

Map Kit

• API Reference
• FAQs
• Development Guide

Location Kit

• API Reference
• FAQs
• Development Guide

To download the sample code, please click the button below:
Download
