k8s源码Client-go中Reflector解析

// k8s.io/client-go/tools/cache/reflector.gotype Reflector struct {// name 标识这个反射器的名称，默认为 文件:行数（比如reflector.go:125）// 默认名字通过 k8s.io/apimachinery/pkg/util/naming/from_stack.go 下面的 GetNameFromCallsite 函数生成name string// 期望放到 Store 中的类型名称，如果提供，则是 expectedGVK 的字符串形式// 否则就是 expectedType 的字符串，它仅仅用于显示，不用于解析或者比较。expectedTypeName string// An example object of the type we expect to place in the store.// Only the type needs to be right, except that when that is// `unstructured.Unstructured` the object's `"apiVersion"` and// `"kind"` must also be right.// 放到 Store 中的对象类型expectedType reflect.Type// 如果是非结构化的，期望放在 Sotre 中的对象的 GVKexpectedGVK *schema.GroupVersionKind// 与 watch 源同步的目标 Storestore Store// 用来执行 lists 和 watches 操作的 listerWatcher 接口（最重要的）listerWatcher ListerWatcher// backoff manages backoff of ListWatchbackoffManager wait.BackoffManagerresyncPeriod time.Duration// ShouldResync 会周期性的被调用，当返回 true 的时候，就会调用 Store 的 Resync 操作ShouldResync func() bool// clock allows tests to manipulate timeclock clock.Clock// paginatedResult defines whether pagination should be forced for list calls.// It is set based on the result of the initial list call.paginatedResult bool// Kubernetes 资源在 APIServer 中都是有版本的，对象的任何修改(添加、删除、更新)都会造成资源版本更新，lastSyncResourceVersion 就是指的这个版本lastSyncResourceVersion string// 如果之前的 list 或 watch 带有 lastSyncResourceVersion 的请求中是一个 HTTP 410（Gone）的失败请求，则 isLastSyncResourceVersionGone 为 trueisLastSyncResourceVersionGone bool// lastSyncResourceVersionMutex 用于保证对 lastSyncResourceVersion 的读/写访问。lastSyncResourceVersionMutex sync.RWMutex// WatchListPageSize is the requested chunk size of initial and resync watch lists.// If unset, for consistent reads (RV="") or reads that opt-into arbitrarily old data// (RV="0") it will default to pager.PageSize, for the rest (RV != "" && RV != "0")// it will turn off pagination to allow serving them from watch cache.// NOTE: It should be used carefully as paginated lists are always served directly from// etcd, which is significantly less efficient and may lead to serious performance and// scalability problems.WatchListPageSize int64}// NewReflector 创建一个新的反射器对象，将使给定的 Store 保持与服务器中指定的资源对象的内容同步。// 反射器只把具有 expectedType 类型的对象放到 Store 中，除非 expectedType 是 nil。// 如果 resyncPeriod 是非0，那么反射器会周期性地检查 ShouldResync 函数来决定是否调用 Store 的 Resync 操作// `ShouldResync==nil` 意味着总是要执行 Resync 操作。// 这使得你可以使用反射器周期性地处理所有的全量和增量的对象。func NewReflector(lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {// 默认的反射器名称为 file:linereturn NewNamedReflector(naming.GetNameFromCallsite(internalPackages...), lw, expectedType, store, resyncPeriod)}// NewNamedReflector 与 NewReflector 一样，只是指定了一个 name 用于日志记录func NewNamedReflector(name string, lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {realClock := &clock.RealClock{}r := &Reflector{name: name,listerWatcher: lw,store: store,backoffManager: wait.NewExponentialBackoffManager(800*time.Millisecond, 30*time.Second, 2*time.Minute, 2.0, 1.0, realClock),resyncPeriod: resyncPeriod,clock: realClock,}r.setExpectedType(expectedType)return r}

// NewReflector 创建一个新的反射器对象，将使给定的 Store 保持与服务器中指定的资源对象的内容同步。// 反射器只把具有 expectedType 类型的对象放到 Store 中，除非 expectedType 是 nil。// 如果 resyncPeriod 是非0，那么反射器会周期性地检查 ShouldResync 函数来决定是否调用 Store 的 Resync 操作// `ShouldResync==nil` 意味着总是要执行 Resync 操作。// 这使得你可以使用反射器周期性地处理所有的全量和增量的对象。func NewReflector(lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {// 默认的反射器名称为 file:linereturn NewNamedReflector(naming.GetNameFromCallsite(internalPackages...), lw, expectedType, store, resyncPeriod)}// NewNamedReflector 与 NewReflector 一样，只是指定了一个 name 用于日志记录func NewNamedReflector(name string, lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {realClock := &clock.RealClock{}r := &Reflector{name: name,listerWatcher: lw,store: store,backoffManager: wait.NewExponentialBackoffManager(800*time.Millisecond, 30*time.Second, 2*time.Minute, 2.0, 1.0, realClock),resyncPeriod: resyncPeriod,clock: realClock,}r.setExpectedType(expectedType)return r}//新建Indexer和reflectorfunc NewNamespaceKeyedIndexerAndReflector(lw ListerWatcher, expectedType interface{}, resyncPeriod time.Duration) (indexer Indexer, reflector *Reflector) {indexer = NewIndexer(MetaNamespaceKeyFunc, Indexers{NamespaceIndex: MetaNamespaceIndexFunc})reflector = NewReflector(lw, expectedType, indexer, resyncPeriod)return indexer, reflector}

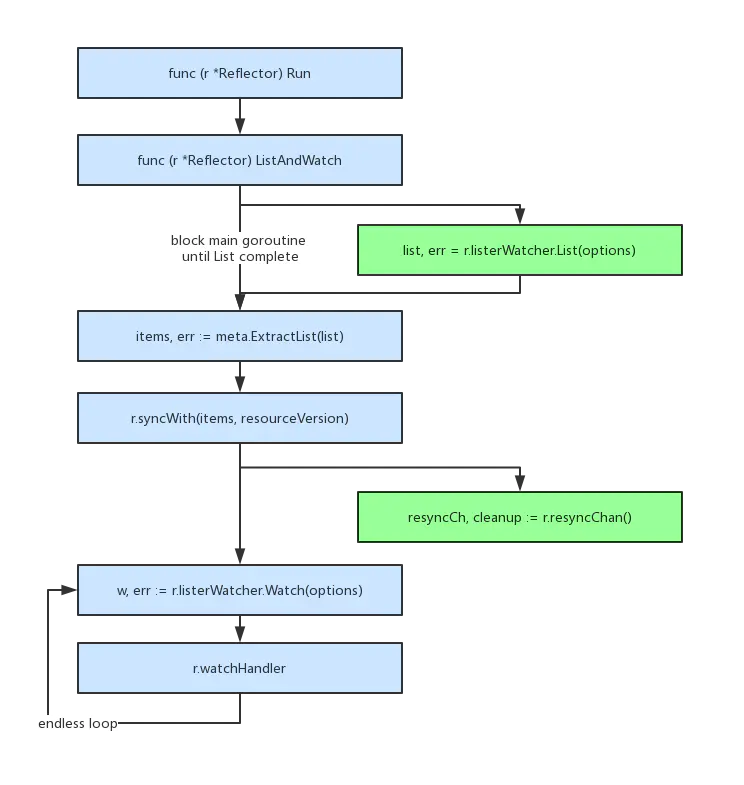

// Run 重复使用反射器的 ListAndWatch 来获取所有对象和后续增量。当 stopCh 关闭时，运行将退出func (r *Reflector) Run(stopCh <-chan struct{}) {klog.V(2).Infof("Starting reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)wait.BackoffUntil(func() {if err := r.ListAndWatch(stopCh); err != nil {r.watchErrorHandler(r, err)}}, r.backoffManager, true, stopCh)klog.V(2).Infof("Stopping reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)}

// ListAndWatch 函数首先列出所有的对象，并在调用的时候获得资源版本，然后使用该资源版本来进行 watch 操作。// 如果 ListAndWatch 没有初始化 watch 成功就会返回错误。func (r *Reflector) ListAndWatch(stopCh <-chan struct{}) error {klog.V(3).Infof("Listing and watching %v from %s", r.expectedTypeName, r.name)var resourceVersion stringoptions := metav1.ListOptions{ResourceVersion: r.relistResourceVersion()}// 1.List部分逻辑：设置分页参数；执行list方法；将list结果同步进DeltaFIFO队列中；if err := func() error {initTrace := trace.New("Reflector ListAndWatch", trace.Field{"name", r.name})defer initTrace.LogIfLong(10 * time.Second)var list runtime.Objectvar paginatedResult boolvar err errorlistCh := make(chan struct{}, 1)panicCh := make(chan interface{}, 1)go func() {defer func() {if r := recover(); r != nil {panicCh <- r}}()// Attempt to gather list in chunks, if supported by listerWatcher, if not, the first// list request will return the full response.pager := pager.New(pager.SimplePageFunc(func(opts metav1.ListOptions) (runtime.Object, error) {return r.listerWatcher.List(opts)}))switch {case r.WatchListPageSize != 0:pager.PageSize = r.WatchListPageSizecase r.paginatedResult:// We got a paginated result initially. Assume this resource and server honor// paging requests (i.e. watch cache is probably disabled) and leave the default// pager size set.case options.ResourceVersion != "" && options.ResourceVersion != "0":// User didn't explicitly request pagination.//// With ResourceVersion != "", we have a possibility to list from watch cache,// but we do that (for ResourceVersion != "0") only if Limit is unset.// To avoid thundering herd on etcd (e.g. on master upgrades), we explicitly// switch off pagination to force listing from watch cache (if enabled).// With the existing semantic of RV (result is at least as fresh as provided RV),// this is correct and doesn't lead to going back in time.//// We also don't turn off pagination for ResourceVersion="0", since watch cache// is ignoring Limit in that case anyway, and if watch cache is not enabled// we don't introduce regression.pager.PageSize = 0}list, paginatedResult, err = pager.List(context.Background(), options)if isExpiredError(err) || isTooLargeResourceVersionError(err) {r.setIsLastSyncResourceVersionUnavailable(true)// Retry immediately if the resource version used to list is unavailable.// The pager already falls back to full list if paginated list calls fail due to an "Expired" error on// continuation pages, but the pager might not be enabled, the full list might fail because the// resource version it is listing at is expired or the cache may not yet be synced to the provided// resource version. So we need to fallback to resourceVersion="" in all to recover and ensure// the reflector makes forward progress.list, paginatedResult, err = pager.List(context.Background(), metav1.ListOptions{ResourceVersion: r.relistResourceVersion()})}close(listCh)}()select {case <-stopCh:return nilcase r := <-panicCh:panic(r)case <-listCh:}if err != nil {return fmt.Errorf("failed to list %v: %v", r.expectedTypeName, err)}// We check if the list was paginated and if so set the paginatedResult based on that.// However, we want to do that only for the initial list (which is the only case// when we set ResourceVersion="0"). The reasoning behind it is that later, in some// situations we may force listing directly from etcd (by setting ResourceVersion="")// which will return paginated result, even if watch cache is enabled. However, in// that case, we still want to prefer sending requests to watch cache if possible.//// Paginated result returned for request with ResourceVersion="0" mean that watch// cache is disabled and there are a lot of objects of a given type. In such case,// there is no need to prefer listing from watch cache.if options.ResourceVersion == "0" && paginatedResult {r.paginatedResult = true}r.setIsLastSyncResourceVersionUnavailable(false) // list was successfulinitTrace.Step("Objects listed")//listMetaInterface, err := meta.ListAccessor(list)if err != nil {return fmt.Errorf("unable to understand list result %#v: %v", list, err)}// 获取资源版本号resourceVersion = listMetaInterface.GetResourceVersion()initTrace.Step("Resource version extracted")// 将资源对象转换为资源列表，讲runtime.Object 对象转换为[]runtime.Object对象items, err := meta.ExtractList(list)if err != nil {return fmt.Errorf("unable to understand list result %#v (%v)", list, err)}initTrace.Step("Objects extracted")// 将资源对象列表中的资源和版本号存储在store中if err := r.syncWith(items, resourceVersion); err != nil {return fmt.Errorf("unable to sync list result: %v", err)}initTrace.Step("SyncWith done")r.setLastSyncResourceVersion(resourceVersion)initTrace.Step("Resource version updated")return nil}(); err != nil {return err}// 2.定时同步：定时同步以协程的方式运行，使用定时器实现定期同步resyncerrc := make(chan error, 1)cancelCh := make(chan struct{})defer close(cancelCh)go func() {resyncCh, cleanup := r.resyncChan()defer func() {cleanup() // Call the last one written into cleanup}()for {select {case <-resyncCh:case <-stopCh:returncase <-cancelCh:return}// 如果ShouldResync 为nil或者调用返回true，则执行Store中的Resync操作if r.ShouldResync == nil || r.ShouldResync() {klog.V(4).Infof("%s: forcing resync", r.name)// 将indexer的数据和deltafifo进行同步if err := r.store.Resync(); err != nil {resyncerrc <- errreturn}}cleanup()resyncCh, cleanup = r.resyncChan()}}()// 3.在for循环里；执行watch函数获取resultchan；监听resultchan中数据并处理；for {// give the stopCh a chance to stop the loop, even in case of continue statements further down on errorsselect {case <-stopCh:return nildefault:}timeoutSeconds := int64(minWatchTimeout.Seconds() * (rand.Float64() + 1.0))options = metav1.ListOptions{ResourceVersion: resourceVersion,// We want to avoid situations of hanging watchers. Stop any wachers that do not// receive any events within the timeout window.TimeoutSeconds: &timeoutSeconds,// To reduce load on kube-apiserver on watch restarts, you may enable watch bookmarks.// Reflector doesn't assume bookmarks are returned at all (if the server do not support// watch bookmarks, it will ignore this field).AllowWatchBookmarks: true,}// start the clock before sending the request, since some proxies won't flush headers until after the first watch event is sentstart := r.clock.Now()w, err := r.listerWatcher.Watch(options)if err != nil {// If this is "connection refused" error, it means that most likely apiserver is not responsive.// It doesn't make sense to re-list all objects because most likely we will be able to restart// watch where we ended.// If that's the case begin exponentially backing off and resend watch request.if utilnet.IsConnectionRefused(err) {<-r.initConnBackoffManager.Backoff().C()continue}return err}if err := r.watchHandler(start, w, &resourceVersion, resyncerrc, stopCh); err != nil {if err != errorStopRequested {switch {case isExpiredError(err):// Don't set LastSyncResourceVersionUnavailable - LIST call with ResourceVersion=RV already// has a semantic that it returns data at least as fresh as provided RV.// So first try to LIST with setting RV to resource version of last observed object.klog.V(4).Infof("%s: watch of %v closed with: %v", r.name, r.expectedTypeName, err)default:klog.Warningf("%s: watch of %v ended with: %v", r.name, r.expectedTypeName, err)}}return nil}}}

func (r *Reflector) LastSyncResourceVersion() string {r.lastSyncResourceVersionMutex.RLock()defer r.lastSyncResourceVersionMutex.RUnlock()return r.lastSyncResourceVersion}

func (r *Reflector) resyncChan() (<-chan time.Time, func() bool) {if r.resyncPeriod == 0 {return neverExitWatch, func() bool { return false }}// The cleanup function is required: imagine the scenario where watches// always fail so we end up listing frequently. Then, if we don't// manually stop the timer, we could end up with many timers active// concurrently.t := r.clock.NewTimer(r.resyncPeriod)return t.C(), t.Stop}

func (r *Reflector) syncWith(items []runtime.Object, resourceVersion string) error {found := make([]interface{}, 0, len(items))for _, item := range items {found = append(found, item)}return r.store.Replace(found, resourceVersion)}

func (r *Reflector) watchHandler(start time.Time, w watch.Interface, resourceVersion *string, errc chan error, stopCh <-chan struct{}) error {eventCount := 0// Stopping the watcher should be idempotent and if we return from this function there's no way// we're coming back in with the same watch interface.defer w.Stop()loop:for {select {case <-stopCh:return errorStopRequestedcase err := <-errc:return errcase event, ok := <-w.ResultChan():if !ok {break loop}if event.Type == watch.Error {return apierrors.FromObject(event.Object)}if r.expectedType != nil {if e, a := r.expectedType, reflect.TypeOf(event.Object); e != a {utilruntime.HandleError(fmt.Errorf("%s: expected type %v, but watch event object had type %v", r.name, e, a))continue}}// 判断期待的类型和监听到的事件类型是否一致if r.expectedGVK != nil {if e, a := *r.expectedGVK, event.Object.GetObjectKind().GroupVersionKind(); e != a {utilruntime.HandleError(fmt.Errorf("%s: expected gvk %v, but watch event object had gvk %v", r.name, e, a))continue}}// 获取事件对象meta, err := meta.Accessor(event.Object)if err != nil {utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))continue}newResourceVersion := meta.GetResourceVersion()// 对事件类型进行判断，并进行对应操作switch event.Type {case watch.Added:err := r.store.Add(event.Object)if err != nil {utilruntime.HandleError(fmt.Errorf("%s: unable to add watch event object (%#v) to store: %v", r.name, event.Object, err))}case watch.Modified:err := r.store.Update(event.Object)if err != nil {utilruntime.HandleError(fmt.Errorf("%s: unable to update watch event object (%#v) to store: %v", r.name, event.Object, err))}case watch.Deleted:// TODO: Will any consumers need access to the "last known// state", which is passed in event.Object? If so, may need// to change this.err := r.store.Delete(event.Object)if err != nil {utilruntime.HandleError(fmt.Errorf("%s: unable to delete watch event object (%#v) from store: %v", r.name, event.Object, err))}case watch.Bookmark:// 表示监听已在此处同步，只需更新// A `Bookmark` means watch has synced here, just update the resourceVersiondefault:utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))}*resourceVersion = newResourceVersionr.setLastSyncResourceVersion(newResourceVersion)if rvu, ok := r.store.(ResourceVersionUpdater); ok {rvu.UpdateResourceVersion(newResourceVersion)}eventCount++}}watchDuration := r.clock.Since(start)if watchDuration < 1*time.Second && eventCount == 0 {return fmt.Errorf("very short watch: %s: Unexpected watch close - watch lasted less than a second and no items received", r.name)}klog.V(4).Infof("%s: Watch close - %v total %v items received", r.name, r.expectedTypeName, eventCount)return nil}

// 如果最后一次relist的结果是HTTP 410（Gone）状态码，则返回""，这样relist将通过quorum读取etcd中可用的最新资源版本。// 返回使用 lastSyncResourceVersion，这样反射器就不会使用在relist结果或watch事件中watch到的资源版本更老的资源版本进行relist了func (r *Reflector) relistResourceVersion() string {r.lastSyncResourceVersionMutex.RLock()defer r.lastSyncResourceVersionMutex.RUnlock()if r.isLastSyncResourceVersionUnavailable {// 因为反射器会进行分页List请求，如果 lastSyncResourceVersion 过期了，所有的分页列表请求就都会跳过 watch 缓存// 所以设置 ResourceVersion=""，然后再次 List，重新建立反射器到最新的可用资源版本，从 etcd 中读取，保持一致性。return ""}if r.lastSyncResourceVersion == "" {// 反射器执行的初始 List 操作的时候使用0作为资源版本。return "0"}return r.lastSyncResourceVersion}

// k8s.io/client-go/informers/apps/v1/deployment.go// NewFilteredDeploymentInformer 为 Deployment 构造一个新的 Informer。// 总是倾向于使用一个 informer 工厂来获取一个 shared informer，而不是获取一个独立的 informer，这样可以减少内存占用和服务器的连接数。func NewFilteredDeploymentInformer(client kubernetes.Interface, namespace string, resyncPeriod time.Duration, indexers cache.Indexers, tweakListOptions internalinterfaces.TweakListOptionsFunc) cache.SharedIndexInformer {return cache.NewSharedIndexInformer(&cache.ListWatch{ListFunc: func(options metav1.ListOptions) (runtime.Object, error) {if tweakListOptions != nil {tweakListOptions(&options)}return client.AppsV1().Deployments(namespace).List(context.TODO(), options)},WatchFunc: func(options metav1.ListOptions) (watch.Interface, error) {if tweakListOptions != nil {tweakListOptions(&options)}return client.AppsV1().Deployments(namespace).Watch(context.TODO(), options)},},&appsv1.Deployment{},resyncPeriod,indexers,)}

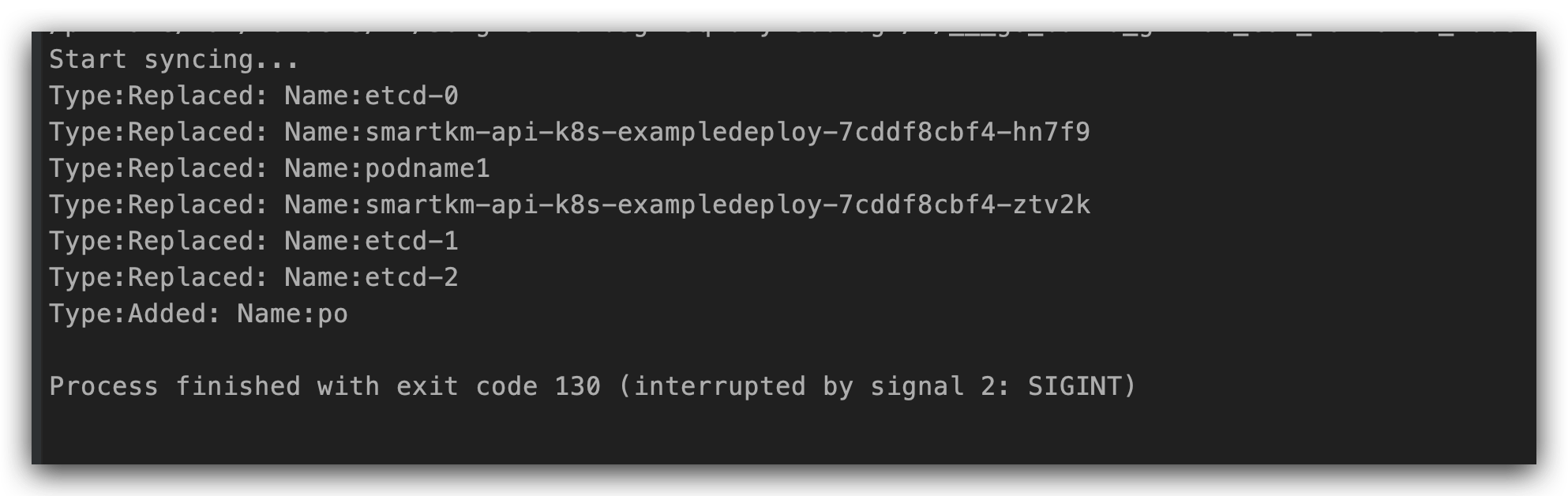

package mainimport ("fmt"corev1 "k8s.io/api/core/v1""k8s.io/apimachinery/pkg/fields""k8s.io/apimachinery/pkg/util/wait""k8s.io/client-go/kubernetes""k8s.io/client-go/tools/cache""k8s.io/client-go/tools/clientcmd""k8s.io/client-go/util/homedir""path/filepath""time")func Must(e interface{}) {if e != nil {panic(e)}}func InitClientSet() (*kubernetes.Clientset, error) {kubeconfig := filepath.Join(homedir.HomeDir(), ".kube", "config")restConfig, err := clientcmd.BuildConfigFromFlags("", kubeconfig)if err != nil {return nil, err}return kubernetes.NewForConfig(restConfig)}// 生成listwatcherfunc InitListerWatcher(clientSet *kubernetes.Clientset, resource, namespace string, fieldSelector fields.Selector) cache.ListerWatcher {restClient := clientSet.CoreV1().RESTClient()return cache.NewListWatchFromClient(restClient, resource, namespace, fieldSelector)}// 生成pods reflectorfunc InitPodsReflector(clientSet *kubernetes.Clientset, store cache.Store) *cache.Reflector {resource := "pods"namespace := "default"resyncPeriod := 0 * time.SecondexpectedType := &corev1.Pod{}lw := InitListerWatcher(clientSet, resource, namespace, fields.Everything())return cache.NewReflector(lw, expectedType, store, resyncPeriod)}// 生成 DeltaFIFOfunc InitDeltaQueue(store cache.Store) cache.Queue {return cache.NewDeltaFIFOWithOptions(cache.DeltaFIFOOptions{// store 实现了 KeyListerGetterKnownObjects: store,// EmitDeltaTypeReplaced 表示队列消费者理解 Replaced DeltaType。// 在添加 `Replaced` 事件类型之前，对 Replace() 的调用的处理方式与 Sync() 相同。// 出于向后兼容的目的，默认情况下为 false。// 当为 true 时，将为传递给 Replace() 调用的项目发送“替换”事件。当为 false 时，将发送 `Sync` 事件。EmitDeltaTypeReplaced: true,})}func InitStore() cache.Store {return cache.NewStore(cache.MetaNamespaceKeyFunc)}func main() {clientSet, err := InitClientSet()Must(err)// 用于在processfunc中获取store := InitStore()// queueDeleteFIFOQueue := InitDeltaQueue(store)// 生成podReflectorpodReflector := InitPodsReflector(clientSet, DeleteFIFOQueue)stopCh := make(chan struct{})defer close(stopCh)go podReflector.Run(stopCh)//启动ProcessFunc := func(obj interface{}) error {// 最先收到的事件会被最先处理for _, d := range obj.(cache.Deltas) {switch d.Type {case cache.Sync, cache.Replaced, cache.Added, cache.Updated:if _, exists, err := store.Get(d.Object); err == nil && exists {if err := store.Update(d.Object); err != nil {return err}} else {if err := store.Add(d.Object); err != nil {return err}}case cache.Deleted:if err := store.Delete(d.Object); err != nil {return err}}pods, ok := d.Object.(*corev1.Pod)if !ok {return fmt.Errorf("not config: %T", d.Object)}fmt.Printf("Type:%s: Name:%s\n", d.Type, pods.Name)}return nil}fmt.Println("Start syncing...")wait.Until(func() {for {_, err := DeleteFIFOQueue.Pop(ProcessFunc)Must(err)}}, time.Second, stopCh)}
