人脸检测

更新时间: 2026-09-07 06:42

复制页面

适用场景

检测图片中的人脸，返回高精度人脸矩形框坐标、人脸五官位置、人脸朝向、人脸置信度。可通过对人脸的定位，实现对人脸特定位置的美化修饰。广泛应用于各类人脸识别场景，如人脸聚类、美颜等场景中。

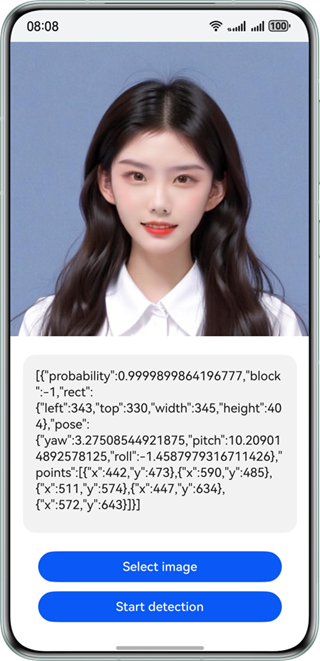

效果如下图所示：

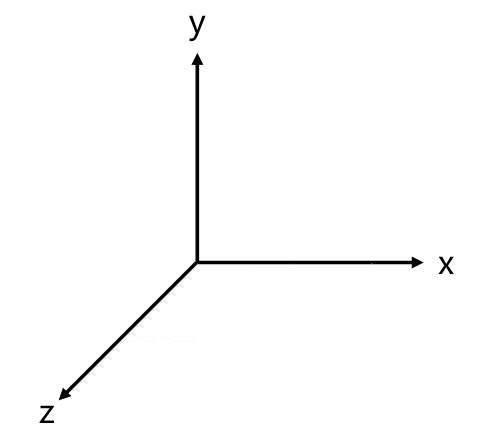

世界坐标系

以下方图片指示坐标系辅助表示人脸朝向。

开发步骤

在使用人脸检测时，将实现人脸检测相关的类添加至工程。

import { faceDetector } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

初始化和释放：在aboutToAppear中调用faceDetector.init()初始化人脸检测分析器（加载模型），在aboutToDisappear中调用faceDetector.release()释放资源。

async aboutToAppear(): Promise<void> {
  const initResult = await faceDetector.init();
  hilog.info(0x0000, 'faceDetectorSample', `Face detector initialization result:${initResult}`);
}

async aboutToDisappear(): Promise<void> {
  await faceDetector.release();
  hilog.info(0x0000, 'faceDetectorSample', 'Face detector released successfully');
}

通过photoAccessHelper.PhotoViewPicker拉起图库选择图片，使用fileIo与image模块将URI转换为PixelMap，为后续检测接口准备输入数据。

Button('选择图片')
  .type(ButtonType.Capsule)
  .fontColor(Color.White)
  .alignSelf(ItemAlign.Center)
  .width('80%')
  .margin(10)
  .onClick(() => {
    // 拉起图库，获取图片资源
    void this.selectImage();
  })

选择图片与解码图片的方法实现如下：

private async selectImage() {
  let uri = await this.openPhoto();
  if (!uri) {
    hilog.error(0x0000, 'faceDetectorSample', 'Failed to get uri.');
    return;
  }
  this.loadImage(uri);
}

private async openPhoto(): Promise<string> {
  return new Promise<string>((resolve) => {
    let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
    photoPicker.select({
      MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
      maxSelectNumber: 1
    }).then(res => {
      resolve(res.photoUris[0]);
    }).catch((err: BusinessError) => {
      hilog.error(0x0000, 'faceDetectorSample', `Failed to get photo image uri.code: ${err.code}, message: ${err.message}`);
      resolve('');
    });
  });
}

private loadImage(name: string) {
  setTimeout(async () => {
    let imageSource: image.ImageSource | undefined = undefined;
    let fileSource = await fileIo.open(name, fileIo.OpenMode.READ_ONLY);
    imageSource = image.createImageSource(fileSource.fd);
    this.chooseImage = await imageSource.createPixelMap();
    this.dataValues = '';
    await fileIo.close(fileSource);
  }, 100);
}

构造VisionInfo对象并传入待检测图片的PixelMap，调用faceDetector.detect方法，获取人脸位置、五官、朝向等检测结果并展示在界面上。

Button('人脸检测')
  .type(ButtonType.Capsule)
  .fontColor(Color.White)
  .alignSelf(ItemAlign.Center)
  .width('80%')
  .margin(10)
  .onClick(() => {
    if (!this.chooseImage) {
      hilog.error(0x0000, 'faceDetectorSample', 'Failed to detect face.');
      return;
    }
    // 调用人脸检测接口
    let visionInfo: faceDetector.VisionInfo = {
      pixelMap: this.chooseImage
    };
     faceDetector.detect(visionInfo)
     .then((data: faceDetector.Face[]) => {
       if (data && Array.isArray(data)) {
         if (data.length === 0) {
           this.dataValues = 'No face is detected in the image. Select an image that contains a face.';
         } else {
           let faceString = JSON.stringify(data);
           hilog.info(0x0000, 'faceDetectorSample', 'faceString data is ' + faceString);
           this.dataValues = faceString;
         }
       } else {
         hilog.error(0x0000, 'faceDetectorSample', 'Unexpected data format received from faceDetector.detect');
         this.dataValues = 'Unexpected data format';
       }
     })
     .catch((error: BusinessError) => {
       hilog.error(0x0000, 'faceDetectorSample', `Face detection failed. Code: ${error.code}, message: ${error.message}`);
       this.dataValues = `Error: ${error.message}`;
     });
   })

开发实例

Index.ets

import { faceDetector } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

@Entry
@Component
struct Index {
  @State chooseImage: PixelMap | undefined = undefined;
  @State dataValues: string = '';

  async aboutToAppear(): Promise<void> {
    const initResult = await faceDetector.init();
    hilog.info(0x0000, 'faceDetectorSample', `Face detector initialization result:${initResult}`);
  }

  async aboutToDisappear(): Promise<void> {
    await faceDetector.release();
    hilog.info(0x0000, 'faceDetectorSample', 'Face detector released successfully');
  }

  build() {
    Column() {
      Image(this.chooseImage)
        .objectFit(ImageFit.Fill)
        .height('60%')
      Text(this.dataValues)
        .copyOption(CopyOptions.LocalDevice)
        .height('15%')
        .margin(10)
        .width('60%')
      Button('选择图片')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          // 拉起图库
          void this.selectImage();
        })
      Button('人脸检测')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          if (!this.chooseImage) {
            hilog.error(0x0000, 'faceDetectorSample', 'Failed to detect face.');
            return;
          }
          // 调用人脸检测接口
          let visionInfo: faceDetector.VisionInfo = {
            pixelMap: this.chooseImage
          };
          faceDetector.detect(visionInfo)
            .then((data: faceDetector.Face[]) => {
              if (data && Array.isArray(data)) {
                if (data.length === 0) {
                  this.dataValues = 'No face is detected in the image. Select an image that contains a face.';
                } else {
                  let faceString = JSON.stringify(data);
                  hilog.info(0x0000, 'faceDetectorSample', 'faceString data is ' + faceString);
                  this.dataValues = faceString;
                }
              } else {
                hilog.error(0x0000, 'faceDetectorSample', 'Unexpected data format received from faceDetector.detect');
                this.dataValues = 'Unexpected data format';
              }
            })
            .catch((error: BusinessError) => {
              hilog.error(0x0000, 'faceDetectorSample', `Face detection failed. Code: ${error.code}, message: ${error.message}`);
              this.dataValues = `Error: ${error.message}`;
            });
        })
    }
    .width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
  }

  private async selectImage() {
    let uri = await this.openPhoto();
    if (!uri) {
      hilog.error(0x0000, 'faceDetectorSample', 'Failed to get uri.');
      return;
    }
    this.loadImage(uri);
  }

  private async openPhoto(): Promise<string> {
    return new Promise<string>((resolve) => {
      let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
      photoPicker.select({
        MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
        maxSelectNumber: 1
      }).then(res => {
        resolve(res.photoUris[0]);
      }).catch((err: BusinessError) => {
        hilog.error(0x0000, 'faceDetectorSample', `Failed to get photo image uri.code: ${err.code}, message: ${err.message}`);
        resolve('');
      });
    });
  }

  private loadImage(name: string) {
    setTimeout(async () => {
      let imageSource: image.ImageSource | undefined = undefined;
      let fileSource = await fileIo.open(name, fileIo.OpenMode.READ_ONLY);
      imageSource = image.createImageSource(fileSource.fd);
      this.chooseImage = await imageSource.createPixelMap();
      this.dataValues = '';
      await fileIo.close(fileSource);
    }, 100);
  }
}
