Shape

Child Components

The following child components are supported: Rect, Path, Circle, Ellipse, Polyline, Polygon, Image, Text, Column, Row, and Shape.

APIs

Shape(value?: PixelMap)

Since API version 9, this API is supported in ArkTS widgets, except that PixelMap objects are not supported.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

ViewportRect¹⁸⁺

Describes the options of the viewport.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Attributes

In addition to the universal attributes, the following attributes are supported.

viewPort

viewPort(value: ViewportRect)

Sets the viewport of the shape.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

fill

fill(value: ResourceColor)

Sets the color of the fill area. This attribute can be dynamically set using attributeModifier. Invalid values are treated as the default value. If this attribute and the universal attribute foregroundColor are both set, whichever is set later takes effect.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

fillOpacity

fillOpacity(value: number | string | Resource)

Sets the opacity of the fill area. This attribute can be dynamically set using attributeModifier.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

stroke

stroke(value: ResourceColor)

Sets the stroke color. This attribute can be dynamically set using attributeModifier. If this attribute is not set, the default stroke opacity is 0, meaning no stroke is displayed.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeDashArray

strokeDashArray(value: Array<any>)

Sets the stroke dashes. This attribute can be dynamically set using attributeModifier. The value must be greater than or equal to 0. Invalid values are treated as the default value.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeDashOffset

strokeDashOffset(value: Length)

Sets the offset of the start point for drawing the stroke. This attribute can be dynamically set using attributeModifier. Invalid values are treated as the default value.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeLineCap

strokeLineCap(value: LineCapStyle)

Sets the cap style of the stroke. This attribute can be dynamically set using attributeModifier.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeLineJoin

strokeLineJoin(value: LineJoinStyle)

Sets the join style of the stroke. This attribute can be dynamically set using attributeModifier.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeMiterLimit

strokeMiterLimit(value: Length)

Sets the limit on the ratio of the miter length to the value of stroke width used to draw a miter join. This attribute can be dynamically set using attributeModifier. The miter length indicates the distance from the outer tip to the inner corner of the miter. The border width is the value of strokeWidth. This attribute works only when strokeLineJoin is set to LineJoinStyle.Miter.

The value must be greater than or equal to 1.0. If the value is in the [0, 1) range, the value 1.0 will be used. In other cases, the default value will be used.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeOpacity

strokeOpacity(value: number | string | Resource)

Sets the stroke opacity. This attribute can be dynamically set using attributeModifier. The value range is [0.0, 1.0]. If the set value is less than 0.0, 0.0 will be used. If the set value is greater than 1.0, 1.0 will be used.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

strokeWidth

strokeWidth(value: Length)

Sets the stroke width. This attribute can be dynamically set using attributeModifier. If this attribute is of the string type, percentage values are not supported and will be treated as 1 px.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

antiAlias

antiAlias(value: boolean)

Sets whether to enable anti-aliasing. This attribute can be dynamically set using attributeModifier.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

mesh⁸⁺

mesh(value: Array<any>, column: number, row: number)

Sets the mesh effect. An image is divided into (row + 1) × (column + 1) meshes. The coordinates of each mesh intersection point are stored in the array. (Every two elements indicate the x and y coordinates of an intersection point.) The mesh vertex position is relocated based on the coordinates in the array value to implement partial image distortion. This attribute can be dynamically set using attributeModifier.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Examples

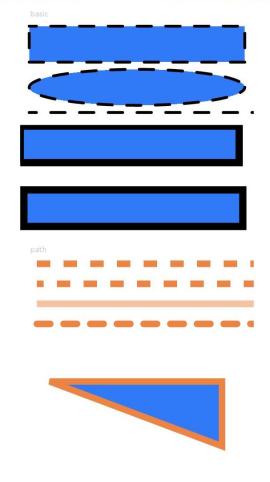

Example 1: Drawing a Shape

This example demonstrates how to draw rectangles, ellipses, and straight lines using the Shape component.

// xxx.ets
@Entry
@Component
struct ShapeExample {
  build() {
    Column({ space: 10 }) {
      Text('basic').fontSize(11).fontColor(0xCCCCCC).width(320)
      // Draw a 300 × 50 rectangle with strokes at (-2, -2). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      // Draw a 300 × 50 ellipse with strokes at (-2, 58). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      // Draw a 300 × 10 straight line at (-2, 118). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      Shape() {
        Rect().width(300).height(50)
        Ellipse().width(300).height(50).offset({ x: 0, y: 60 })
        Path().width(300).height(10).commands('M0 0 L900 0').offset({ x: 0, y: 120 })
      }
      .width(350)
      .height(140)
      .viewPort({
        x: -2,
        y: -2,
        width: 304,
        height: 130
      })
      .fill(0x317AF7)
      .stroke(Color.Black)
      .strokeWidth(4)
      .strokeDashArray([20])
      .strokeDashOffset(10)
      .strokeLineCap(LineCapStyle.Round)
      .strokeLineJoin(LineJoinStyle.Round)
      .antiAlias(true)

      // Draw a 300 × 50 rectangle with strokes at (0, 0) and (-5, -5). The coordinates of the start position of the viewport are set to negative values because the drawing start point is the midpoint of the line width by default. Therefore, to display the strokes completely, the viewport needs to be offset by half of the line width.
      Shape() {
        Rect().width(300).height(50)
      }
      .width(350)
      .height(80)
      .viewPort({
        x: 0,
        y: 0,
        width: 320,
        height: 70
      })
      .fill(0x317AF7)
      .stroke(Color.Black)
      .strokeWidth(10)

      Shape() {
        Rect().width(300).height(50)
      }
      .width(350)
      .height(80)
      .viewPort({
        x: -5,
        y: -5,
        width: 320,
        height: 70
      })
      .fill(0x317AF7)
      .stroke(Color.Black)
      .strokeWidth(10)

      Text('path').fontSize(11).fontColor(0xCCCCCC).width(320)
      // Draw a straight line at (0, -5). The fill color is 0xEE8443, the stroke width is 10, and the stroke dash array is 20.
      Shape() {
        Path().width(300).height(10).commands('M0 0 L900 0')
      }
      .width(350)
      .height(20)
      .viewPort({
        x: 0,
        y: -5,
        width: 300,
        height: 20
      })
      .stroke(0xEE8443)
      .strokeWidth(10)
      .strokeDashArray([20])

      // Draw a straight line at (0, -5). The fill color is 0xEE8443, the stroke width is 10, the stroke dash array is 20, and the offset is 10 to the left.
      Shape() {
        Path().width(300).height(10).commands('M0 0 L900 0')
      }
      .width(350)
      .height(20)
      .viewPort({
        x: 0,
        y: -5,
        width: 300,
        height: 20
      })
      .stroke(0xEE8443)
      .strokeWidth(10)
      .strokeDashArray([20])
      .strokeDashOffset(10)

      // Draw a straight line at (0, -5). The fill color is 0xEE8443, the stroke width is 10, and the opacity is 0.5.
      Shape() {
        Path().width(300).height(10).commands('M0 0 L900 0')
      }
      .width(350)
      .height(20)
      .viewPort({
        x: 0,
        y: -5,
        width: 300,
        height: 20
      })
      .stroke(0xEE8443)
      .strokeWidth(10)
      .strokeOpacity(0.5)

      // Draw a straight line at (0, -5). The fill color is 0xEE8443, the stroke width is 10, the stroke dash array is 20, and the cap style is semi-circle.
      Shape() {
        Path().width(300).height(10).commands('M0 0 L900 0')
      }
      .width(350)
      .height(20)
      .viewPort({
        x: 0,
        y: -5,
        width: 300,
        height: 20
      })
      .stroke(0xEE8443)
      .strokeWidth(10)
      .strokeDashArray([20])
      .strokeLineCap(LineCapStyle.Round)

      // Draw a closed path at (-20, -5). The fill color is 0x317AF7, the stroke width is 10, the stroke color is 0xEE8443, and the join style is miter (default).
      Shape() {
        Path().width(200).height(60).commands('M0 0 L400 0 L400 150 Z')
      }
      .width(300)
      .height(200)
      .viewPort({
        x: -20,
        y: -5,
        width: 310,
        height: 90
      })
      .fill(0x317AF7)
      .stroke(0xEE8443)
      .strokeWidth(10)
      .strokeLineJoin(LineJoinStyle.Miter)
      .strokeMiterLimit(5)
    }.width('100%').margin({ top: 15 })
  }
}

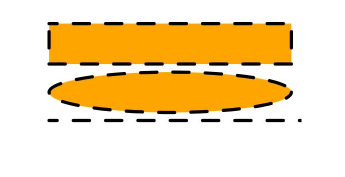

Example 2: Drawing a Shape with Different Parameter Types

This example demonstrates how to draw shaps with different length types for attribute.

// xxx.ets
@Entry
@Component
struct ShapeTypeExample {
  build() {
    Column({ space: 10 }) {
      // Draw a 300 × 50 rectangle with strokes at (-2, -2). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      // Draw a 300 × 50 ellipse with strokes at (-2, 58). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      // Draw a 300 × 10 straight line at (-2, 118). The fill color is 0x317AF7, the stroke color is black, the stroke width is 4, the stroke dash array is 20, the offset is 10 to the left, the cap style is semi-circle, the join style is rounded, and anti-aliasing is enabled (default).
      Shape() {
        Rect().width('300').height('50')
        Ellipse().width(300).height(50).offset({ x: 0, y: 60 })
        Path().width(300).height(10).commands('M0 0 L900 0').offset({ x: 0, y: 120 })
      }
      .width(350)
      .height(140)
      .viewPort({
        x: '-2', // Use the string type.
        y: '-2',
        width: $r('app.string.ViewportRectWidth'), // Use the Resource type, which needs to be customized.
        height: $r('app.string.ViewportRectHeight')
      })
      .fill(Color.Orange)
      .stroke(Color.Black)
      .strokeWidth(4)
      .strokeDashArray([20])
      .strokeDashOffset(10) // Use the number type.
      .strokeLineCap(LineCapStyle.Round)
      .strokeLineJoin(LineJoinStyle.Round)
      .strokeMiterLimit(5)
      .antiAlias(true)
    }.width('100%').margin({ top: 15 })
  }
}

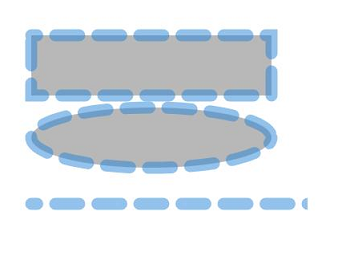

Example 3: Dynamically Setting Attributes of the Shape Component Using attributeModifier

This example shows how to use attributeModifier to dynamically set the fill, fillOpacity, stroke, strokeDashArray, strokeDashOffset, strokeLineCap, strokeLineJoin, strokeMiterLimit, strokeOpacity, strokeWidth, and antiAlias attributes of the Shape component.

// xxx.ets
class MyShapeModifier implements AttributeModifier<ShapeAttribute> {
  applyNormalAttribute(instance: ShapeAttribute): void {
    // Fill color: #707070; fill opacity: 0.5; stroke color: #2787D9; stroke dash array: [20, 15]; offset to left: 15; cap style: semi-circle; join style: miter; miter limit: 5; stroke opacity: 0.5; stroke width: 10; anti-aliasing enabled.
    instance.fill("#707070")
    instance.fillOpacity(0.5)
    instance.stroke("#2787D9")
    instance.strokeDashArray([20, 15])
    instance.strokeDashOffset("15")
    instance.strokeLineCap(LineCapStyle.Round)
    instance.strokeLineJoin(LineJoinStyle.Miter)
    instance.strokeMiterLimit(5)
    instance.strokeOpacity(0.5)
    instance.strokeWidth(10)
    instance.antiAlias(true)
  }
}

@Entry
@Component
struct ShapeModifierDemo {
  @State modifier: MyShapeModifier = new MyShapeModifier()

  build() {
    Column() {
      Shape() {
        Rect().width(200).height(50).offset({ x: 20, y: 20 })
        Ellipse().width(200).height(50).offset({ x: 20, y: 80 })
        Path().width(200).height(10).commands('M0 0 L900 0').offset({ x: 20, y: 160 })
      }
      .width(250).height(200)
      .attributeModifier(this.modifier)
    }
  }
}

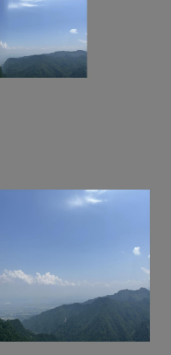

Example 4: Using the Mesh for Local Image Distortion

This example demonstrates how to configure mesh to achieve local image distortion.

// xxx.ets
import { image } from '@kit.ImageKit';

@Entry
@Component
struct Index {
  private context: OffscreenCanvasRenderingContext2D = new OffscreenCanvasRenderingContext2D(200, 200)
  private meshArray: Array<number> = [0, 0, 50, 0, 410, 0, 0, 180, 50, 180, 410, 180, 0, 360, 50, 360, 410, 360]
  @State pixelMap: image.PixelMap | undefined = undefined

  aboutToAppear(): void {
    // Replace "resources/base/media/img.png" with the image resource file you use.
    let img: ImageBitmap = new ImageBitmap("resources/base/media/img.png")
    this.context.drawImage(img, 0, 0, 200, 200)
    this.pixelMap = this.context.getPixelMap(0, 0, 200, 200)
  }

  build() {
    Column() {
      Shape(this.pixelMap)
      .backgroundColor(Color.Grey)
      .width(250)
      .height(250)
      .mesh(this.meshArray, 2, 2)

      Shape(this.pixelMap)
      .backgroundColor(Color.Grey)
      .width(250)
      .height(250)
    }
  }
}
