ArkUI开发框架在NDK接口提供了自定义UI组件的能力，这些能力包括自定义测算，自定义布局和自定义绘制。开发者通过注册相关自定义回调事件接入ArkUI开发框架的布局渲染流程，这些事件需要使用registerNodeCustomEvent来进行声明，并通过addNodeCustomEventReceiver函数添加组件自定义事件的监听器，在该监听器的回调函数中处理相关自定义测算，自定义布局和自定义绘制逻辑。

说明

自定义组件事件注册需要addNodeCustomEventReceiver声明监听器注册和registerNodeCustomEvent声明需要的自定义事件类型，监听器只能监听已声明的事件。
需要关注事件的反注册逻辑，如在组件销毁前调用removeNodeCustomEventReceiver移除事件监听器，unregisterNodeCustomEvent通知ArkUI框架已监听的自定义组件事件不再需要监听。
addNodeCustomEventReceiver可以添加多个函数指针，每个函数指针都会在对应事件触发时触发，对应的removeNodeCustomEventReceiver需要传递对应的函数指针用于移除监听。
registerNodeCustomEventReceiver是全局监听函数，不同于addNodeCustomEventReceiver，registerNodeCustomEventReceiver能够监听所有Native组件的自定义事件触发，但只能传递一个函数指针，多次调用使用最后一次的函数指针进行回调，释放时使用unregisterNodeCustomEventReceiver进行反注册。
自定义组件相关接口（measureNode、layoutNode、setMeasuredSize、setLayoutPosition）仅允许在对应的自定义事件（ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE、ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT，见ArkUI_NodeCustomEventType）回调中使用。

自定义布局容器

以下示例创建了一个自定义容器，该容器将子组件最大值加上额外边距作为自身大小，同时对子组件进行居中排布。

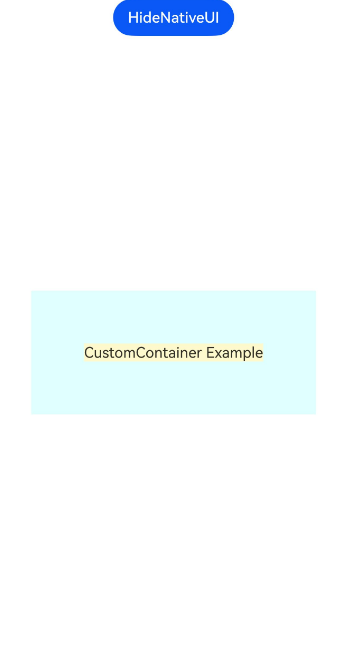

图1 自定义容器组件

按照接入ArkTS页面创建前置工程。

创建自定义容器组件封装对象。

收起
自动换行
深色代码主题
复制
// ArkUICustomContainerNode.h
// 自定义容器组件示例

#ifndef MYAPPLICATION_ARKUICUSTOMCONTAINERNODE_H
#define MYAPPLICATION_ARKUICUSTOMCONTAINERNODE_H

#include "ArkUINode.h"

namespace NativeModule {

    class ArkUICustomContainerNode : public ArkUINode {
    public:
        // 使用自定义组件类型ARKUI_NODE_CUSTOM创建组件。
        ArkUICustomContainerNode()
            : ArkUINode((NativeModuleInstance::GetInstance()->GetNativeNodeAPI())->createNode(ARKUI_NODE_CUSTOM))
        {
            // 注册自定义事件监听器。
            nativeModule_->addNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
            // 声明自定义事件并传递自身作为自定义数据。
            nativeModule_->registerNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE, 0, this);
            nativeModule_->registerNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT, 0, this);
        }

        ~ArkUICustomContainerNode() override
        {
            // 反注册自定义事件监听器。
            nativeModule_->removeNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
            // 取消声明自定义事件。
            nativeModule_->unregisterNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE);
            nativeModule_->unregisterNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT);
        }

        void SetPadding(int32_t padding)
        {
            padding_ = padding;
            // 自定义属性事件更新需要主动调用标记脏区接口。
            nativeModule_->markDirty(handle_, NODE_NEED_MEASURE);
        }

    private:
        static void OnStaticCustomEvent(ArkUI_NodeCustomEvent *event)
        {
            // 获取组件实例对象，调用相关实例方法。
            auto customNode = reinterpret_cast<ArkUICustomContainerNode *>(OH_ArkUI_NodeCustomEvent_GetUserData(event));
            auto type = OH_ArkUI_NodeCustomEvent_GetEventType(event);
            switch (type) {
                case ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE:
                    customNode->OnMeasure(event);
                    break;
                case ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT:
                    customNode->OnLayout(event);
                    break;
                default:
                    break;
            }
        }

        // 自定义测算逻辑。
        void OnMeasure(ArkUI_NodeCustomEvent *event)
        {
            auto layoutConstrain = OH_ArkUI_NodeCustomEvent_GetLayoutConstraintInMeasure(event);
            // 创建子节点布局限制，复用父组件布局中的百分比参考值。
            auto childLayoutConstrain = OH_ArkUI_LayoutConstraint_Copy(layoutConstrain);
            int32_t maxConstrain = 1000;
            OH_ArkUI_LayoutConstraint_SetMaxHeight(childLayoutConstrain, maxConstrain);
            OH_ArkUI_LayoutConstraint_SetMaxWidth(childLayoutConstrain, maxConstrain);
            OH_ArkUI_LayoutConstraint_SetMinHeight(childLayoutConstrain, 0);
            OH_ArkUI_LayoutConstraint_SetMinWidth(childLayoutConstrain, 0);

            // 测算子节点获取子节点最大值。
            auto totalSize = nativeModule_->getTotalChildCount(handle_);
            int32_t maxWidth = 0;
            int32_t maxHeight = 0;
            for (uint32_t i = 0; i < totalSize; i++) {
                auto child = nativeModule_->getChildAt(handle_, i);
                // 调用测算接口测算Native组件。
                nativeModule_->measureNode(child, childLayoutConstrain);
                auto size = nativeModule_->getMeasuredSize(child);
                if (size.width > maxWidth) {
                    maxWidth = size.width;
                }
                if (size.height > maxHeight) {
                    maxHeight = size.height;
                }
            }
            // 自定义测算为所有子节点大小加固定边距。该自定义节点最终的尺寸以此处设置的值为准。
            const int paddingMultiplier = 2;
            nativeModule_->setMeasuredSize(handle_, maxWidth + paddingMultiplier * padding_,
                                           maxHeight + paddingMultiplier * padding_);
            OH_ArkUI_LayoutConstraint_Dispose(childLayoutConstrain);
        }

        void OnLayout(ArkUI_NodeCustomEvent *event)
        {
            // 获取父组件期望位置并设置。
            auto position = OH_ArkUI_NodeCustomEvent_GetPositionInLayout(event);
            nativeModule_->setLayoutPosition(handle_, position.x, position.y);

            // 设置子组件居中对齐。
            auto totalSize = nativeModule_->getTotalChildCount(handle_);
            auto selfSize = nativeModule_->getMeasuredSize(handle_);
            for (uint32_t i = 0; i < totalSize; i++) {
                auto child = nativeModule_->getChildAt(handle_, i);
                // 获取子组件大小。
                auto childSize = nativeModule_->getMeasuredSize(child);
                // 布局子组件位置。
                int32_t horizontalMargin = (selfSize.width - childSize.width) / 2;
                int32_t verticalMargin = (selfSize.height - childSize.height) / 2;
                nativeModule_->layoutNode(child, horizontalMargin, verticalMargin);
            }
        }

        int32_t padding_ = 100;
    };

} // namespace NativeModule

#endif // MYAPPLICATION_ARKUICUSTOMCONTAINERNODE_H
ArkUICustomContainerNode.h

使用自定义容器创建带文本的示例界面。

收起
自动换行
深色代码主题
复制
#include "NativeEntry.h"

#include "ArkUICustomContainerNode.h"
#include "ArkUITextNode.h"
#include "UITimer.h"

#include <arkui/native_node_napi.h>
#include <arkui/native_type.h>
#include <js_native_api.h>

namespace NativeModule {
    namespace {
        napi_env g_env;
    } // namespace

    napi_value CreateNativeRoot(napi_env env, napi_callback_info info)
    {
        size_t argc = 1;
        napi_value args[1] = {nullptr};

        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

        ArkUI_NodeContentHandle contentHandle;
        OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &contentHandle);
        NativeEntry::GetInstance()->SetContentHandle(contentHandle);

        // 创建自定义容器和文本组件。
        auto node = std::make_shared<ArkUICustomContainerNode>();
        node->SetBackgroundColor(0xFFE0FFFF);
        auto textNode = std::make_shared<ArkUITextNode>();
        textNode->SetTextContent("CustomContainer Example");
        const int32_t fontSize = 16;
        textNode->SetFontSize(fontSize);
        textNode->SetBackgroundColor(0xFFfffacd);
        textNode->SetTextAlign(ARKUI_TEXT_ALIGNMENT_CENTER);
        node->AddChild(textNode);
        auto onClick = [](ArkUI_NodeEvent *event) {
            auto textNode = (ArkUITextNode *)OH_ArkUI_NodeEvent_GetUserData(event);
            textNode->SetFontColor(0xFF00FF7F);
        };
        textNode->RegisterOnClick(onClick, textNode.get());

        // 保持Native侧对象到管理类中，维护生命周期。
        NativeEntry::GetInstance()->SetRootNode(node);
        g_env = env;
        return nullptr;
    }

    napi_value DestroyNativeRoot(napi_env env, napi_callback_info info)
    {
        // 从管理类中释放Native侧对象。
        NativeEntry::GetInstance()->DisposeRootNode();
        return nullptr;
    }

} // namespace NativeModule
NativeEntry.cpp

修改CMakeLists.txt，添加链接库。

收起
自动换行
深色代码主题
复制
  # CMakeLists.txt

  # the minimum version of CMake.
  cmake_minimum_required(VERSION 3.4.1)
  project(testndk)

  set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

  include_directories(${NATIVERENDER_ROOT_PATH}
                       ${NATIVERENDER_ROOT_PATH}/include)

  add_library(entry SHARED NativeEntry.cpp napi_init.cpp)
  # target_link_libraries(entry PUBLIC libace_napi.z.so, libace_ndk.z.so, libhilog_ndk.z.so)

  find_library(
       # Sets the name of the path variable.
       hilog-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       hilog_ndk.z
   )

  find_library(
       # Sets the name of the path variable.
       libace-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       ace_ndk.z
   )

  find_library(
       # Sets the name of the path variable.
       libnapi-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       ace_napi.z
   )

   find_library(
        # Sets the name of the path variable.
        libuv-lib
        uv
    )

  target_link_libraries(entry PUBLIC
       ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib} )

自定义绘制组件

以下示例创建了一个自定义绘制组件，该绘制组件能够绘制自定义矩形，并使用上述自定义容器进行布局排布。

图2 自定义绘制组件

按照自定义布局容器章节准备前置工程。

创建自定义绘制组件封装对象。

收起
自动换行
深色代码主题
复制
// ArkUICustomNode.h
// 自定义绘制组件示例

#ifndef MYAPPLICATION_ARKUICUSTOMNODE_H
#define MYAPPLICATION_ARKUICUSTOMNODE_H

#include <native_drawing/drawing_brush.h>
#include <native_drawing/drawing_canvas.h>
#include <native_drawing/drawing_path.h>

#include "ArkUINode.h"

namespace NativeModule {

    class ArkUICustomNode : public ArkUINode {
    public:
        // 使用自定义组件类型ARKUI_NODE_CUSTOM创建组件。
        ArkUICustomNode()
            : ArkUINode((NativeModuleInstance::GetInstance()->GetNativeNodeAPI())->createNode(ARKUI_NODE_CUSTOM))
        {
            // 注册自定义事件监听器。
            nativeModule_->addNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
            // 声明自定义事件并传递自身作为自定义数据。
            nativeModule_->registerNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_DRAW, 0, this);
        }

        ~ArkUICustomNode() override
        {
            // 反注册自定义事件监听器。
            nativeModule_->removeNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
            // 取消声明自定义事件。
            nativeModule_->unregisterNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_DRAW);
        }

        void SetRectColor(uint32_t color)
        {
            color_ = color;
            // 自定义绘制属性变更需要主动通知框架。
            nativeModule_->markDirty(handle_, NODE_NEED_RENDER);
        }

    private:
        static void OnStaticCustomEvent(ArkUI_NodeCustomEvent *event)
        {
            // 获取组件实例对象，调用相关实例方法。
            auto customNode = reinterpret_cast<ArkUICustomNode *>(OH_ArkUI_NodeCustomEvent_GetUserData(event));
            auto type = OH_ArkUI_NodeCustomEvent_GetEventType(event);
            switch (type) {
                case ARKUI_NODE_CUSTOM_EVENT_ON_DRAW:
                    customNode->OnDraw(event);
                    break;
                default:
                    break;
            }
        }

        // 自定义绘制逻辑。
        void OnDraw(ArkUI_NodeCustomEvent *event)
        {
            auto drawContext = OH_ArkUI_NodeCustomEvent_GetDrawContextInDraw(event);
            // 获取图形绘制对象。
            auto drawCanvas = reinterpret_cast<OH_Drawing_Canvas *>(OH_ArkUI_DrawContext_GetCanvas(drawContext));
            // 获取组件大小。
            auto size = OH_ArkUI_DrawContext_GetSize(drawContext);
            // 局部资源对象离开作用域时，析构函数会自动分离画笔并释放已经成功创建的资源。
            struct DrawingResources {
                OH_Drawing_Canvas *canvas = nullptr;
                OH_Drawing_Path *path = nullptr;
                OH_Drawing_Brush *brush = nullptr;
                bool brushAttached = false;

                ~DrawingResources()
                {
                    if (brushAttached) {
                        OH_Drawing_CanvasDetachBrush(canvas);
                    }
                    OH_Drawing_BrushDestroy(brush);
                    OH_Drawing_PathDestroy(path);
                }
            } resources;
            resources.canvas = drawCanvas;
            // 绘制自定义内容。
            resources.path = OH_Drawing_PathCreate();
            if (resources.path == nullptr) {
                return;
            }
            const float kQuarter = 0.25f;
            const float kThreeQuarters = 0.75f;
            OH_Drawing_PathMoveTo(resources.path, size.width * kQuarter, size.height * kQuarter);
            OH_Drawing_PathLineTo(resources.path, size.width * kThreeQuarters, size.height * kQuarter);
            OH_Drawing_PathLineTo(
                resources.path, size.width * kThreeQuarters, size.height * kThreeQuarters);
            OH_Drawing_PathLineTo(resources.path, size.width * kQuarter, size.height * kThreeQuarters);
            OH_Drawing_PathLineTo(resources.path, size.width * kQuarter, size.height * kQuarter);
            OH_Drawing_PathClose(resources.path);
            resources.brush = OH_Drawing_BrushCreate();
            if (resources.brush == nullptr) {
                return;
            }
            OH_Drawing_BrushSetColor(resources.brush, color_);
            OH_Drawing_CanvasAttachBrush(drawCanvas, resources.brush);
            resources.brushAttached = true;
            OH_Drawing_CanvasDrawPath(drawCanvas, resources.path);
        }

        uint32_t color_ = 0xFFFFE4B5;
    };

} // namespace NativeModule

#endif // MYAPPLICATION_ARKUICUSTOMNODE_H
ArkUICustomNode.h

使用自定义绘制组件和自定义容器创建示例界面。

收起
自动换行
深色代码主题
复制
#include "NativeEntry.h"

#include "ArkUICustomContainerNode.h"
#include "ArkUICustomNode.h"

#include <arkui/native_node_napi.h>
#include <arkui/native_type.h>
#include <js_native_api.h>
#include "UITimer.h"

namespace NativeModule {
    namespace {
        napi_env g_env;
    } // namespace

    napi_value CreateNativeRoot(napi_env env, napi_callback_info info)
    {
        size_t argc = 1;
        napi_value args[1] = {nullptr};

        napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

        // 获取NodeContent
        ArkUI_NodeContentHandle contentHandle;
        OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &contentHandle);
        NativeEntry::GetInstance()->SetContentHandle(contentHandle);

        // 创建自定义容器和自定义绘制组件。
        auto node = std::make_shared<ArkUICustomContainerNode>();
        node->SetBackgroundColor(0xFFE0FFFF);
        auto customNode = std::make_shared<ArkUICustomNode>();
        customNode->SetBackgroundColor(0xFFD3D3D3);
        const int width = 150;
        const int height = 150;
        customNode->SetWidth(width);
        customNode->SetHeight(height);
        node->AddChild(customNode);
        auto onClick = [](ArkUI_NodeEvent *event) {
            auto customNode = (ArkUICustomNode *)OH_ArkUI_NodeEvent_GetUserData(event);
            customNode->SetRectColor(0xFF00FF7F);
        };
        customNode->RegisterOnClick(onClick, customNode.get());

        // 保持Native侧对象到管理类中，维护生命周期。
        NativeEntry::GetInstance()->SetRootNode(node);
        g_env = env;
        return nullptr;
    }

    napi_value DestroyNativeRoot(napi_env env, napi_callback_info info)
    {
        // 从管理类中释放Native侧对象。
        NativeEntry::GetInstance()->DisposeRootNode();
        return nullptr;
    }

} // namespace NativeModule
NativeEntry.cpp

修改CMakeLists.txt，添加链接库。

收起
自动换行
深色代码主题
复制
  # CMakeLists.txt

  # the minimum version of CMake.
  cmake_minimum_required(VERSION 3.4.1)
  project(testndk)

  set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

  include_directories(${NATIVERENDER_ROOT_PATH}
                       ${NATIVERENDER_ROOT_PATH}/include)

  add_library(entry SHARED NativeEntry.cpp napi_init.cpp)
  # target_link_libraries(entry PUBLIC libace_napi.z.so, libace_ndk.z.so, libhilog_ndk.z.so)

  find_library(
       # Sets the name of the path variable.
       hilog-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       hilog_ndk.z
   )

  find_library(
       # Sets the name of the path variable.
       libace-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       ace_ndk.z
   )

  find_library(
       # Sets the name of the path variable.
       libnapi-lib
       # Specifies the name of the NDK library that
       # you want CMake to locate.
       ace_napi.z
   )

   find_library(
        # Sets the name of the path variable.
        libuv-lib
        uv
    )

  target_link_libraries(entry PUBLIC
       ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib} libnative_drawing.so)

不规则网格布局示例

以下示例创建了一个不规则网格布局容器，支持不同大小的网格单元，实现类似瀑布流的布局效果。完整示例请参考CustomDrawIrregularSample。

图3 不规则网格布局效果

按照自定义布局容器章节准备前置工程。

创建不规则网格布局容器组件封装对象。

收起
自动换行
深色代码主题
复制
 // ArkUIIrregularGridNode.h
 // 不规则网格布局容器示例

 #ifndef MYAPPLICATION_ARKUIIRREGULARGRIDNODE_H
 #define MYAPPLICATION_ARKUIIRREGULARGRIDNODE_H

 #include "ArkUINode.h"
 #include <vector>
 #include <map>

 namespace NativeModule {

 // 网格单元配置
 struct GridItemConfig {
     int32_t rowSpan = 1;    // 占据的行数
     int32_t columnSpan = 1; // 占据的列数
 };

 class ArkUIIrregularGridNode : public ArkUINode {
 public:
     // 使用自定义组件类型ARKUI_NODE_CUSTOM创建组件
     ArkUIIrregularGridNode()
         : ArkUINode((NativeModuleInstance::GetInstance()->GetNativeNodeAPI())->createNode(ARKUI_NODE_CUSTOM))
     {
         // 注册自定义事件监听器
         nativeModule_->addNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
         // 声明自定义事件并传递自身作为自定义数据
         nativeModule_->registerNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE, 0, this);
         nativeModule_->registerNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT, 0, this);
     }

     ~ArkUIIrregularGridNode() override
     {
         // 反注册自定义事件监听器
         nativeModule_->removeNodeCustomEventReceiver(handle_, OnStaticCustomEvent);
         // 取消声明自定义事件。
         nativeModule_->unregisterNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE);
         nativeModule_->unregisterNodeCustomEvent(handle_, ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT);
     }

     // 设置列数
     void SetColumnCount(int32_t count)
     {
         columnCount_ = count;
         nativeModule_->markDirty(handle_, NODE_NEED_MEASURE);
     }

     // 设置网格间距
     void SetGap(int32_t gap)
     {
         gap_ = gap;
         nativeModule_->markDirty(handle_, NODE_NEED_MEASURE);
     }

     // 设置子组件的网格配置
     void SetItemConfig(ArkUI_NodeHandle child, int32_t rowSpan, int32_t columnSpan)
     {
         GridItemConfig config;
         config.rowSpan = rowSpan;
         config.columnSpan = columnSpan;
         itemConfigs_[child] = config;
         nativeModule_->markDirty(handle_, NODE_NEED_MEASURE);
     }

 private:
     static void OnStaticCustomEvent(ArkUI_NodeCustomEvent *event)
     {
         // 获取组件实例对象，调用相关实例方法。
         auto customNode = reinterpret_cast<ArkUIIrregularGridNode *>(OH_ArkUI_NodeCustomEvent_GetUserData(event));
         auto type = OH_ArkUI_NodeCustomEvent_GetEventType(event);
         switch (type) {
             case ARKUI_NODE_CUSTOM_EVENT_ON_MEASURE:
                 customNode->OnMeasure(event);
                 break;
             case ARKUI_NODE_CUSTOM_EVENT_ON_LAYOUT:
                 customNode->OnLayout(event);
                 break;
             default:
                 break;
         }
     }

     // 测算单个子组件并更新列高信息
     void MeasureChild(ArkUI_NodeHandle child, int32_t cellWidth,
         ArkUI_LayoutConstraint *childConstraint, std::vector<int32_t> &columnHeights)
     {
         GridItemConfig config = {1, 1};
         auto it = itemConfigs_.find(child);
         if (it != itemConfigs_.end()) {
             config = it->second;
         }
         if (config.columnSpan > columnCount_) {
             config.columnSpan = columnCount_;
         }

         int32_t startColumn = FindLowestColumn(columnHeights, config.columnSpan);
         int32_t startY = 0;
         for (int32_t col = startColumn; col < startColumn + config.columnSpan && col < columnCount_; col++) {
             if (columnHeights[col] > startY) {
                 startY = columnHeights[col];
             }
         }

         int32_t itemWidth = cellWidth * config.columnSpan + gap_ * (config.columnSpan - 1);
         OH_ArkUI_LayoutConstraint_SetMaxWidth(childConstraint, itemWidth);
         OH_ArkUI_LayoutConstraint_SetMinWidth(childConstraint, itemWidth);
         nativeModule_->measureNode(child, childConstraint);
         auto size = nativeModule_->getMeasuredSize(child);

         LayoutItemInfo info;
         info.x = startColumn * (cellWidth + gap_);
         info.y = startY;
         info.width = size.width;
         info.height = size.height;
         layoutInfo_.push_back(info);

         int32_t newHeight = startY + size.height + gap_;
         for (int32_t col = startColumn; col < startColumn + config.columnSpan && col < columnCount_; col++) {
             columnHeights[col] = newHeight;
         }
     }

     // 自定义测算逻辑：不规则网格布局
     void OnMeasure(ArkUI_NodeCustomEvent *event)
     {
         auto layoutConstrain = OH_ArkUI_NodeCustomEvent_GetLayoutConstraintInMeasure(event);
         int32_t maxWidth = OH_ArkUI_LayoutConstraint_GetMaxWidth(layoutConstrain);

         int32_t totalGap = gap_ * (columnCount_ - 1);
         int32_t cellWidth = (maxWidth - totalGap) / columnCount_;

         auto childConstraint = OH_ArkUI_LayoutConstraint_Copy(layoutConstrain);
         std::vector<int32_t> columnHeights(columnCount_, 0);
         layoutInfo_.clear();

         auto totalSize = nativeModule_->getTotalChildCount(handle_);
         for (uint32_t i = 0; i < totalSize; i++) {
             auto child = nativeModule_->getChildAt(handle_, i);
             MeasureChild(child, cellWidth, childConstraint, columnHeights);
         }

         int32_t maxHeight = 0;
         for (int32_t height : columnHeights) {
             if (height > maxHeight) {
                 maxHeight = height;
             }
         }
         if (maxHeight > gap_) {
             maxHeight -= gap_;
         }

         nativeModule_->setMeasuredSize(handle_, maxWidth, maxHeight);
         OH_ArkUI_LayoutConstraint_Dispose(childConstraint);
     }

     void OnLayout(ArkUI_NodeCustomEvent *event)
     {
         // 获取父组件期望位置并设置
         auto position = OH_ArkUI_NodeCustomEvent_GetPositionInLayout(event);
         nativeModule_->setLayoutPosition(handle_, position.x, position.y);

         // 布局子组件
         auto totalSize = nativeModule_->getTotalChildCount(handle_);
         for (uint32_t i = 0; i < totalSize && i < layoutInfo_.size(); i++) {
             auto child = nativeModule_->getChildAt(handle_, i);
             nativeModule_->layoutNode(child, layoutInfo_[i].x, layoutInfo_[i].y);
         }
     }

     // 找到最矮的列，确保可以放下指定列跨度的项
     int32_t FindLowestColumn(const std::vector<int32_t>& columnHeights, int32_t columnSpan)
     {
         int32_t lowestColumn = 0;
         int32_t lowestHeight = INT32_MAX;

         // 遍历所有可能的起始列
         for (int32_t col = 0; col <= columnCount_ - columnSpan; col++) {
             // 找到这个范围内最高的列
             int32_t maxHeightInRange = 0;
             for (int32_t i = col; i < col + columnSpan; i++) {
                 if (columnHeights[i] > maxHeightInRange) {
                     maxHeightInRange = columnHeights[i];
                 }
             }

             // 如果这个范围的最高点比当前最低点还低，更新最低列
             if (maxHeightInRange < lowestHeight) {
                 lowestHeight = maxHeightInRange;
                 lowestColumn = col;
             }
         }

         return lowestColumn;
     }

     struct LayoutItemInfo {
         int32_t x;
         int32_t y;
         int32_t width;
         int32_t height;
     };

     int32_t columnCount_ = 3;
     int32_t gap_ = 10;
     std::map<ArkUI_NodeHandle, GridItemConfig> itemConfigs_;
     std::vector<LayoutItemInfo> layoutInfo_;
 };

 } // namespace NativeModule

 #endif // MYAPPLICATION_ARKUIIRREGULARGRIDNODE_H
ArkUIIrregularGridNode.h

使用不规则网格布局容器创建示例界面。

收起
自动换行
深色代码主题
复制
 #include "NativeEntry.h"

 #include "ArkUIIrregularGridNode.h"
 #include "ArkUINode.h"

 #include <arkui/native_node_napi.h>
 #include <arkui/native_type.h>
 #include <js_native_api.h>
 #include <utility>
 #include <vector>

 namespace NativeModule {
 namespace {
 napi_env g_env = nullptr;

 constexpr uint32_t GRID_BACKGROUND_COLOR = 0xFFF5F5F5;
 constexpr int32_t GRID_COLUMN_COUNT = 4;
 constexpr int32_t GRID_GAP = 8;
 constexpr float GRID_ITEM_RADIUS = 8.0f;
 constexpr float GRID_ITEM_BORDER_WIDTH = 1.0f;
 constexpr uint32_t GRID_ITEM_BORDER_COLOR = 0xFFCCCCCC;
 constexpr float GRID_ITEM_BASE_HEIGHT = 60.0f;
 constexpr float GRID_ITEM_HEIGHT_STEP = 40.0f;

 using GridItemSize = std::pair<int32_t, int32_t>;

 const std::vector<GridItemSize>& GetGridItemSizes()
 {
     static const std::vector<GridItemSize> itemSizes = {
         {1, 1}, // 小方块
         {2, 1}, // 竖长条
         {1, 3}, // 横长条
         {2, 2}, // 大方块
         {1, 1}, // 小方块
         {1, 2}, // 横条
         {3, 1}, // 很长的竖条
     };
     return itemSizes;
 }

 const std::vector<uint32_t>& GetGridItemColors()
 {
     static const std::vector<uint32_t> colors = {
         0xFF64B5F6, // 蓝色
         0xFFE57373, // 红色
         0xFF81C784, // 绿色
         0xFFFFB74D, // 橙色
         0xFF9575CD, // 紫色
         0xFF4DB6AC, // 青色
         0xFFFFD54F, // 黄色
         0xFFF06292, // 粉色
         0xFF7986CB, // 靛蓝
         0xFFA1887F, // 棕色
     };
     return colors;
 }

 void SetNodeColorAttribute(ArkUI_NativeNodeAPI_1* nodeAPI, ArkUI_NodeHandle node, uint32_t color)
 {
     ArkUI_NumberValue bgColor[] = {{.u32 = color}};
     ArkUI_AttributeItem bgColorItem = {bgColor, 1};
     nodeAPI->setAttribute(node, NODE_BACKGROUND_COLOR, &bgColorItem);
 }

 void SetNodeBorderRadiusAttribute(ArkUI_NativeNodeAPI_1* nodeAPI, ArkUI_NodeHandle node, float radius)
 {
     ArkUI_NumberValue radiusValue[] = {{.f32 = radius}};
     ArkUI_AttributeItem radiusItem = {radiusValue, 1};
     nodeAPI->setAttribute(node, NODE_BORDER_RADIUS, &radiusItem);
 }

 void SetNodeBorderStyle(ArkUI_NativeNodeAPI_1* nodeAPI, ArkUI_NodeHandle node)
 {
     ArkUI_NumberValue borderWidth[] = {{.f32 = GRID_ITEM_BORDER_WIDTH}};
     ArkUI_AttributeItem borderWidthItem = {borderWidth, 1};
     nodeAPI->setAttribute(node, NODE_BORDER_WIDTH, &borderWidthItem);

     ArkUI_NumberValue borderColor[] = {{.u32 = GRID_ITEM_BORDER_COLOR}};
     ArkUI_AttributeItem borderColorItem = {borderColor, 1};
     nodeAPI->setAttribute(node, NODE_BORDER_COLOR, &borderColorItem);
 }

 void SetNodeHeightByRowSpan(ArkUI_NativeNodeAPI_1* nodeAPI, ArkUI_NodeHandle node, int32_t rowSpan)
 {
     float minHeight = GRID_ITEM_BASE_HEIGHT + (rowSpan - 1) * GRID_ITEM_HEIGHT_STEP;
     ArkUI_NumberValue minHeightValue[] = {{.f32 = minHeight}};
     ArkUI_AttributeItem minHeightItem = {minHeightValue, 1};
     nodeAPI->setAttribute(node, NODE_HEIGHT, &minHeightItem);
 }

 void AddGridItems(
     ArkUI_NativeNodeAPI_1* nodeAPI,
     const std::shared_ptr<ArkUIIrregularGridNode>& gridNode,
     const std::vector<GridItemSize>& itemSizes,
     const std::vector<uint32_t>& colors)
 {
     for (size_t i = 0; i < itemSizes.size(); ++i) {
         auto itemNode = nodeAPI->createNode(ARKUI_NODE_STACK);
         SetNodeColorAttribute(nodeAPI, itemNode, colors[i % colors.size()]);
         SetNodeBorderRadiusAttribute(nodeAPI, itemNode, GRID_ITEM_RADIUS);
         SetNodeBorderStyle(nodeAPI, itemNode);
         SetNodeHeightByRowSpan(nodeAPI, itemNode, itemSizes[i].first);
         gridNode->SetItemConfig(itemNode, itemSizes[i].first, itemSizes[i].second);
         nodeAPI->addChild(gridNode->GetHandle(), itemNode);
     }
 }
 } // namespace

 napi_value CreateNativeRoot(napi_env env, napi_callback_info info)
 {
     size_t argc = 1;
     napi_value args[1] = {nullptr};
     napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

     ArkUI_NodeContentHandle contentHandle;
     OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &contentHandle);
     NativeEntry::GetInstance()->SetContentHandle(contentHandle);

     auto gridNode = std::make_shared<ArkUIIrregularGridNode>();
     gridNode->SetBackgroundColor(GRID_BACKGROUND_COLOR);
     gridNode->SetColumnCount(GRID_COLUMN_COUNT);
     gridNode->SetGap(GRID_GAP);

     auto* nodeAPI = NativeModuleInstance::GetInstance()->GetNativeNodeAPI();
     AddGridItems(nodeAPI, gridNode, GetGridItemSizes(), GetGridItemColors());

     // 保持Native侧对象到管理类中，维护生命周期。
     NativeEntry::GetInstance()->SetRootNode(gridNode);
     g_env = env;
     return nullptr;
 }

 napi_value DestroyNativeRoot(napi_env env, napi_callback_info info)
 {
     // 从管理类中释放Native侧对象。
     NativeEntry::GetInstance()->DisposeRootNode();
     return nullptr;
 }

 } // namespace NativeModule
NativeEntry.cpp
