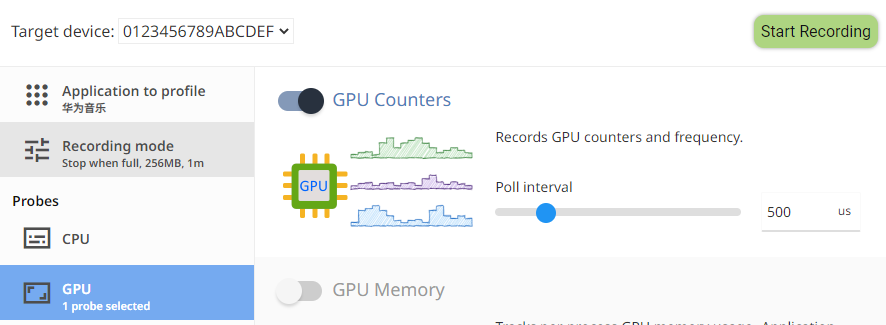

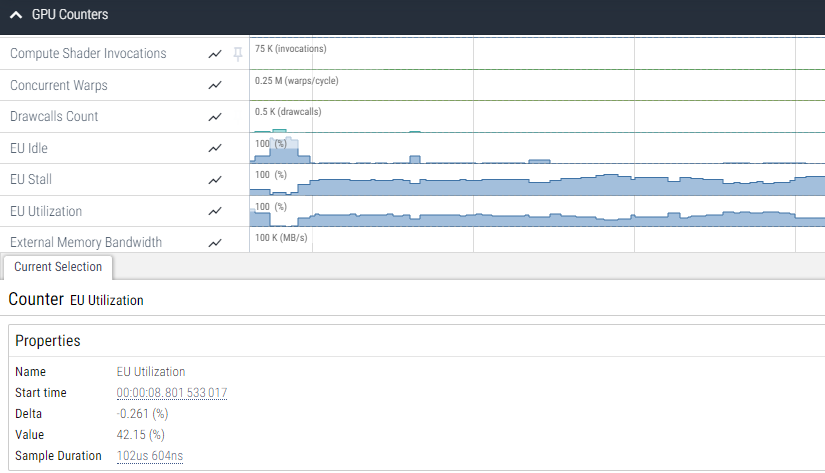

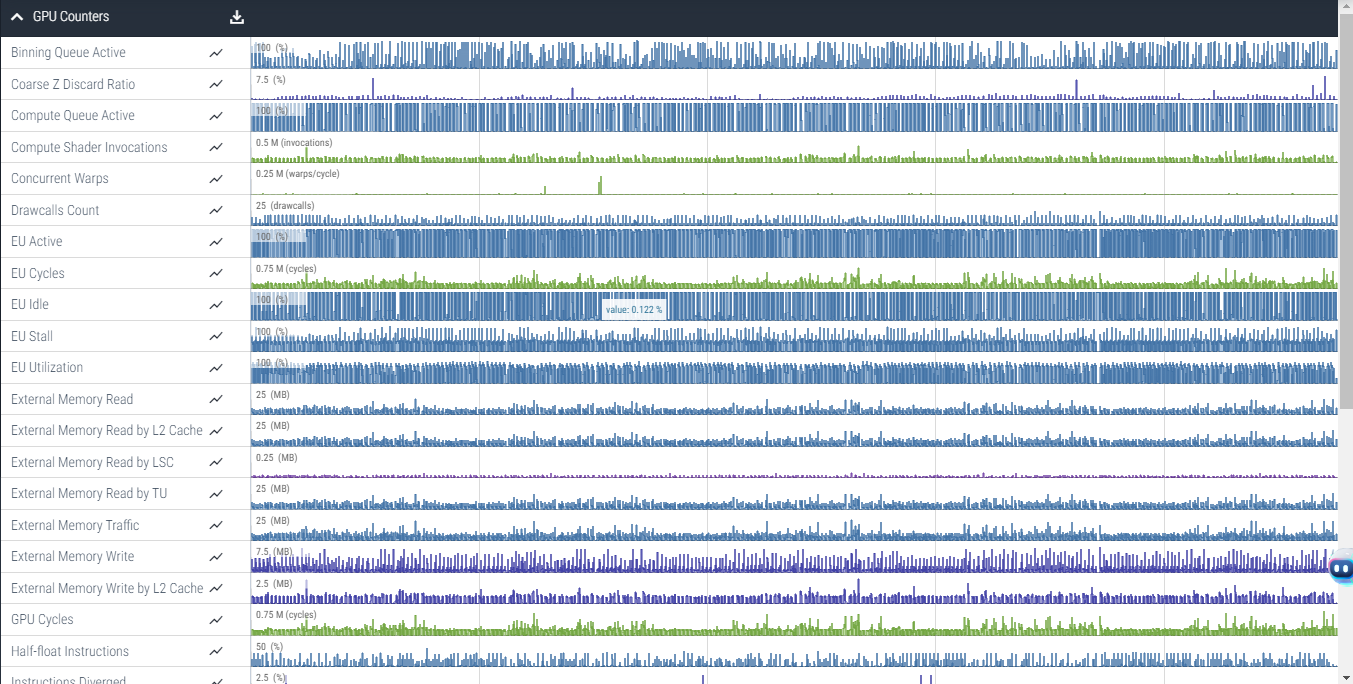

GPU Counters

GPU Cycles

Number of cycles when GPU is executing commands

Binning Queue Active

Percentage of GPU Active time when GPU is executing binning jobs

Rendering Queue Active

Percentage of GPU Active time when GPU is executing rendering jobs

Compute Queue Active

Percentage of GPU Active time when GPU is executing compute jobs

Tiler Active

Percentage of GPU Active time when Tiler is executing commands

Shader Core Active

Percentage of GPU Active time when Shader Core is executing tasks

Warp Manager Active

Percentage of GPU Active time when Shader Core has warps for execution

Coarse Z Discard Ratio

Percentage of primitives discarded during the depth test.

EU Active

Percentage of Shader Core Active time when Execution Units have instructions for execution

EU Cycles

Number of cycles that the execution unit executes commands

EU Utilization

Percentage of Shader Core Active time when Execution Units are executing instructions

EU Stall

Percentage of Shader Core Active time when instruction execution is stalled

EU Idle

Percentage of Shader Core Active time when Execution Units are idle

Texture Unit Active

Percentage of Shader Core Active time when Texture Units have sampling requests

Texture Unit Utilization

Percentage of Shader Core Active time when Texture Units perform texture sampling

Concurrent Warps

Average number of warps assigned for execution per execution unit per cycle

Instructions Executed

Total number of instructions executed on all execution units

Instructions Diverged

Percentage of instructions diverged by control flow

Instructions per Shader Invocation

Average number of instructions executed in a shader invocation

Half-float Instructions

Percentage of half-precision floating point instructions

External Memory Read

Read traffic from the external memory through the memory interface

External Memory Read by L2 Cache

Read traffic from the external memory to the L2 cache through the memory interface

External Memory Read by TU

Read traffic from the external memory to Texture Units through the memory interface

External Memory Read by LSC

Read traffic from the external memory to the Load/Store cache (LSC) through the memory interface

External Memory Write

Write traffic from the external memory through the memory interface

External Memory Write by L2 cache

Write traffic from the L2 cache to the external memory through the memory interface

External Memory Traffic

Total read and write traffic from the external memory through the memory interface

External Memory Read Bandwidth

Bandwidth of data reading from the external memory through the memory interface

External Memory Write Bandwidth

Bandwidth of data writing to the external memory through the memory interface

External Memory Bandwidth

Bandwidth of data reading and writing through the memory interface

Drawcalls Count

Number of executed draw calls

Vertex Count

Number of vertices processed at the binning stage

Primitive Count

Number of primitives assembled at the binning stage

Primitives Clipped

Number of primitives clipped at the binning stage

Primitives Culled

Number of primitives culled at the binning stage

Quads Shaded

Number of quadrilaterals shaded of by fragment shader

Texels Sampled

Total number of texels sampled by Texture Units

Compute Shader Invocations

Number of compute shader invocations

Power Consumption

Estimated GPU power consumption
