No.	Step	Operation	Description
1	Preparations	Configuring App Information in AppGallery Connect	Configure app information and enable the required services.
2		Applying for Securities Components	Obtain the keys or certificates required for data encryption.
3		Applying for the Wallet Kit service	Apply for the Wallet Kit service.
4	Pass integration	UI Design	Customize UI content based on the JSON field mapping.
		h2Claiming Passes	Claim passes.
		h2Updating Passes	Update passes.
		h2Processing Expired Passes	Process expired passes.
		h2Sending Geofence Notifications	Send a notification to a user who arrives near a specified geofence.
		h2Linking to Saved Passes	Create a link to a saved pass for a user to view the pass details.
		h2Sending Expiration Notifications	Notify users of coupon expiration in advance.
5	Pre-release check	Pre-release Check	Use the tool offered by Huawei to automatically check your app before release.
6	App release	App Release	Complete your app information in AppGallery Connect and submit a release application.

NOTE

For details about quick integration, please refer to codelab.

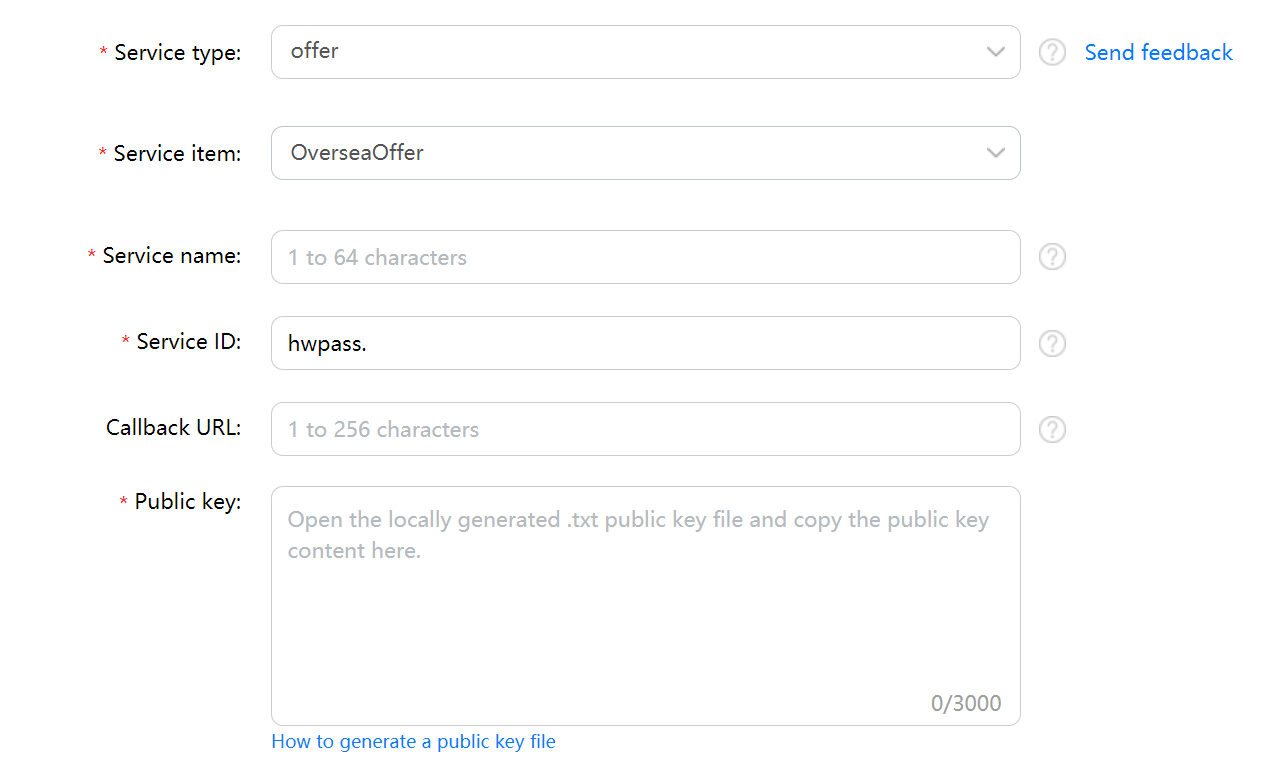

Applying for the Wallet Kit service
When applying for the Wallet Kit service, select offer for Service type and OverseaOffer for Service item.

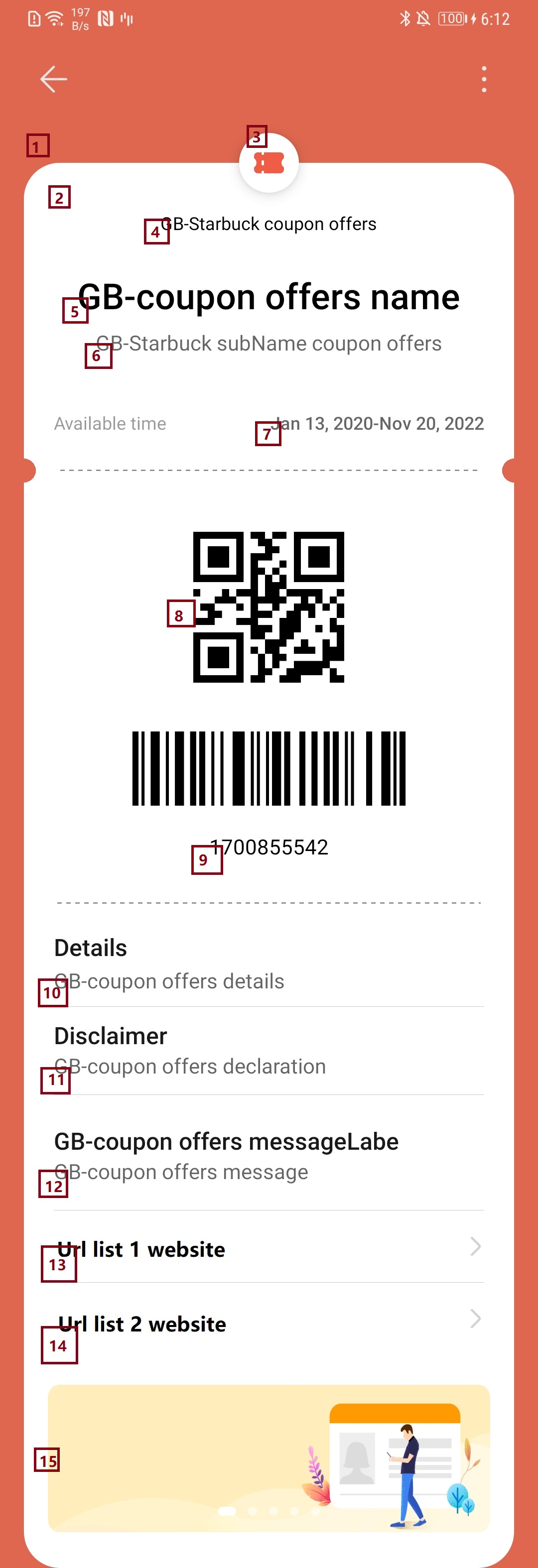

UI Design

UI Items

Click to enlarge

Expand

No.	Item	Mapping Field in JSON String	Specifications	Description
1	Outer frame background color	fields.appendFields[key= backgroundColor]	Length: less than 256 bytes	The value is a 6-bit hexadecimal color value prefixed by a number sign (#), for example, #483D8B. To ensure an optimal display, a dark color is recommended.
2	Background color	-	-	The outer frame background color is always white.
3	Logo on the coupon	fields.commonFields[key= logo]	Dimensions: 90 x 90 px Size: 20 KB max	The value is the URI of the logo image. The value starts with https.
4	Merchant name	fields.commonFields[key= merchantName]	Length: less than 256 bytes	The default value is used. The value supports multiple languages. You can set LocalizedValue to a random string and then set Localized under the key whose value is the specified random string to merchant names in multiple languages.
5	Coupon title	fields.commonFields[key= name]	Length: less than 256 bytes	The default value is used. The value supports multiple languages.
6	Coupon subtitle	fields.commonFields[key= subName]	Length: less than 256 bytes	The label is fixed and cannot be modified. The value supports multiple languages.
7	Validity period	fields.status.effectTime -fields.status.expireTime	Length: less than 256 bytes	The label is fixed and cannot be modified. UTC time in yyyy-MM-ddTHH:mm:ss.SSSZ format is transferred from your server to the Huawei server.
8	Barcode or QR code	fields.barCode.type fields.barCode.value	Length: less than 256 bytes	If the value of fields.barCode.type is codabar, a barcode is displayed. If the value of fields.barCode.type is qrCode, a QR code is displayed. The displayed code is specified by fields.barCode.value.
9	Remarks	fields.barCode.text	Length: less than 256 bytes	Remarks are displayed below the barcode or QR code.
10	Details	fields.appendFields[key= details]	Length: less than 256 bytes	The label is fixed and cannot be modified. The value supports multiple languages.
11	Disclaimer	fields.appendFields[key= declaration]	Length: less than 256 bytes	The label is fixed and cannot be modified. The value supports multiple languages.
12	Message 1	fields.messageList[key=key1]	Length: less than 256 bytes	The label supports multiple languages. It is mandatory and cannot be an empty string. The value supports multiple languages. It is mandatory and cannot be an empty string. The key is user-defined.
13	Redirection list 1	fields.urlList[key=key1]	Length: less than 256 bytes	You can set a list of redirection links, for example, HTML5 page addresses, quick app addresses, and schema addresses. Multiple links can be displayed at the same time. For details about the redirection configuration, please refer to urlList Redirection Configuration. The key is user-defined and cannot be empty. Multiple objects with different keys are supported. The label supports multiple languages. It is mandatory and cannot be an empty string. The redirection type cannot be empty. The options are URL, APP, and FASTAPP. The value is a redirection URL, which cannot be empty. It is subject to the redirection type.
14	Redirection list 2	fields.urlList[key=key2]	Length: less than 256 bytes	You can set a list of redirection links, for example, HTML5 page addresses, quick app addresses, and schema addresses. Multiple links can be displayed at the same time. For details about the redirection configuration, please refer to urlList Redirection Configuration. The key is user-defined and cannot be empty. Multiple objects with different keys are supported. The label supports multiple languages. It is mandatory and cannot be an empty string. The redirection type cannot be empty. The options are URL, APP, and FASTAPP. The value is a redirection URL, which cannot be empty. It is subject to the redirection type.
15	Scrolling images	fields.imageList[key=key1]	Length: less than 256 bytes (Restriction: The aspect ratio must be 3:1.)	If there are multiple images, they automatically scroll on the pass details page in HUAWEI Wallet. The key is user-defined and cannot be empty. Multiple objects with different keys are supported. The value is an HTTPS address and cannot be empty.

Coupon Design Customization

You can display any of the following items on a coupon by setting fields.commonFields[key= use_type]: 2D barcode, 1D barcode, 2D and 1D barcodes, button, and coupon code.

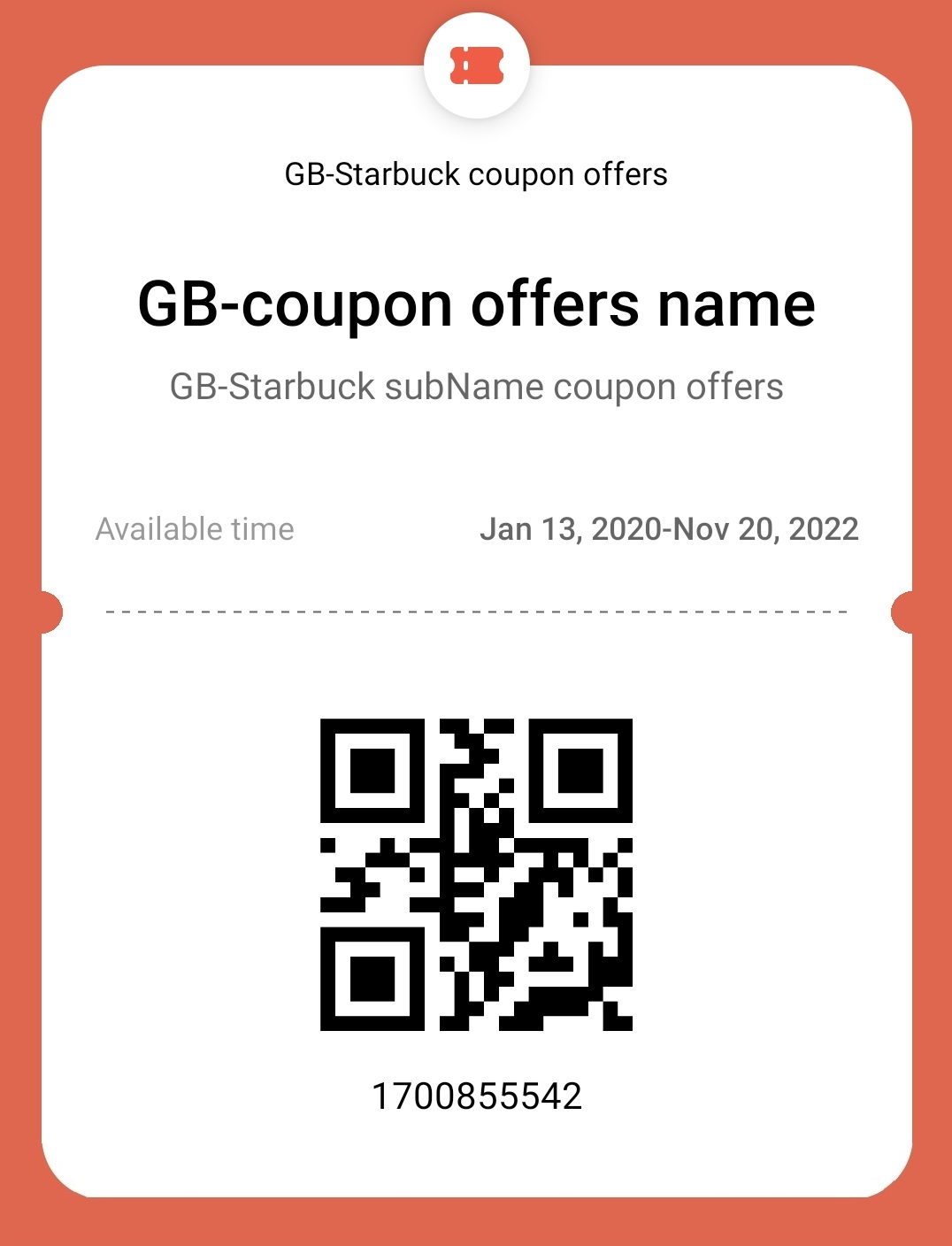

2D barcode

The following configuration is for displaying a 2D barcode:

Collapse
Word wrap
Dark theme
Copy code
{
  "commonFields": [
    {
      "key": "use_type",
      "value": "0"
    }
  ],
  "barCode": {
    "text": "barCode Text",
    "type": "qrCode",
    "value": "1700855542",
    "encoding": "UTF-8"
  }
}

UI effect:

Click to enlarge

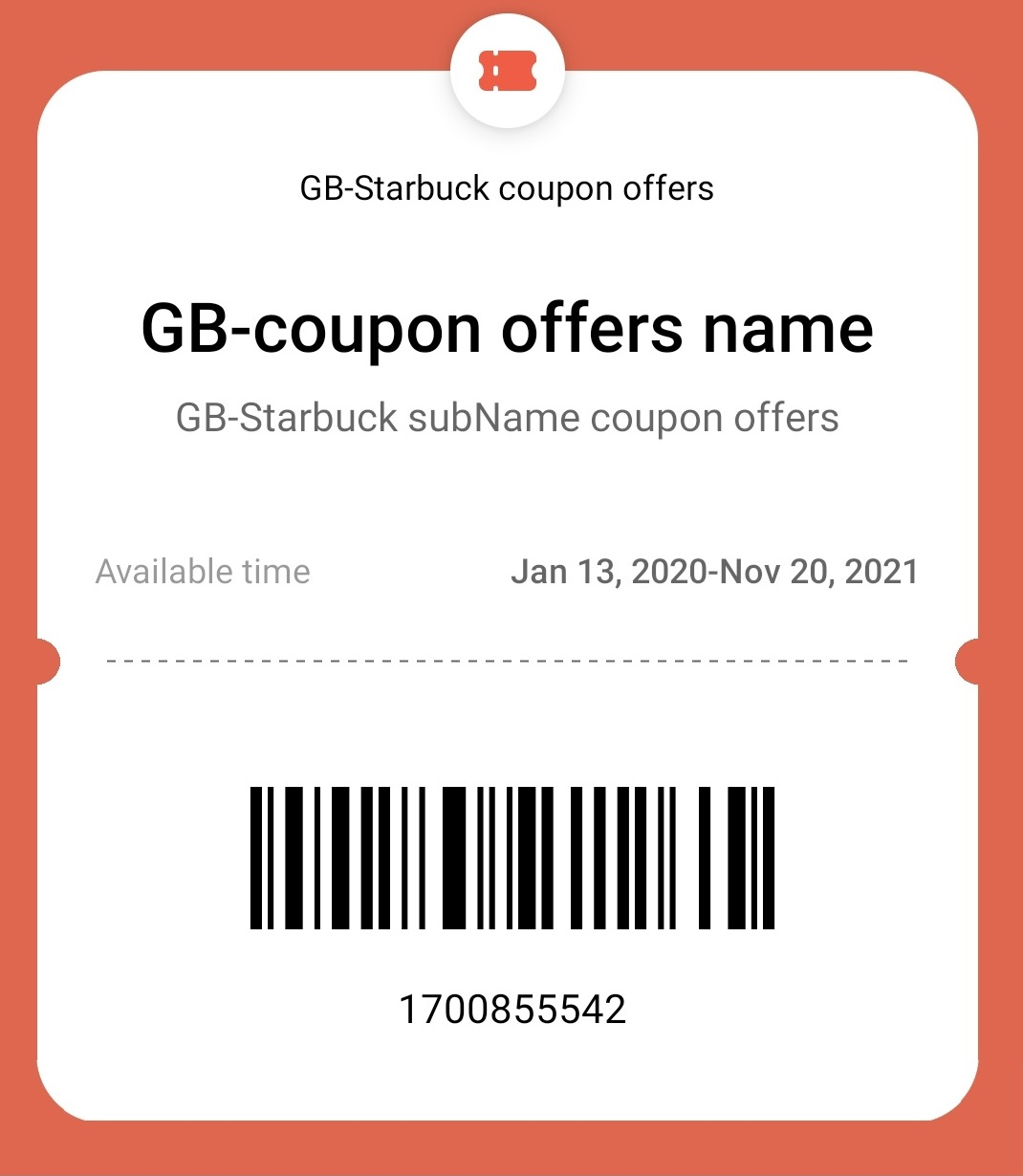

1D barcode

The following configuration is for displaying a 1D barcode:

Collapse
Word wrap
Dark theme
Copy code
{
  "commonFields": [
    {
      "key": "use_type",
      "value": "0"
    }
  ],
  "barCode": {
    "text": "barCode Text",
    "type": "codabar",
    "value": "1700855542",
    "encoding": "UTF-8"
  }
}

UI effect:

Click to enlarge

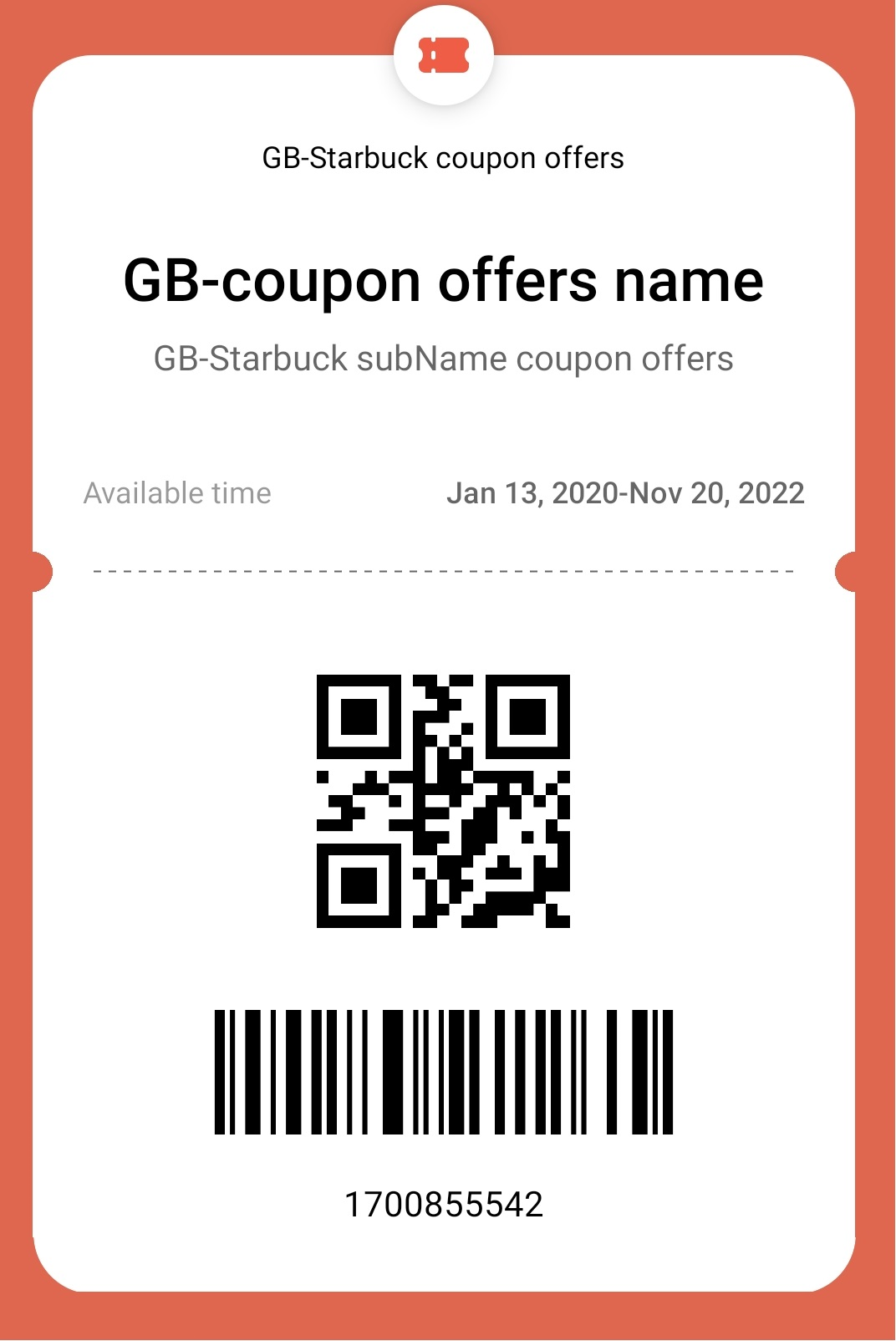

2D and 1D barcodes

The following configuration is for displaying 2D and 1D barcodes at the same time:

Collapse
Word wrap
Dark theme
Copy code
{
  "commonFields": [
    {
      "key": "use_type",
      "value": "0"
    }
  ],
  "barCode": {
    "text": "barCode Text",
    "type": "qrCode|codabar",
    "value": "1700855542",
    "encoding": "UTF-8"
  }
}

UI effect:

Click to enlarge

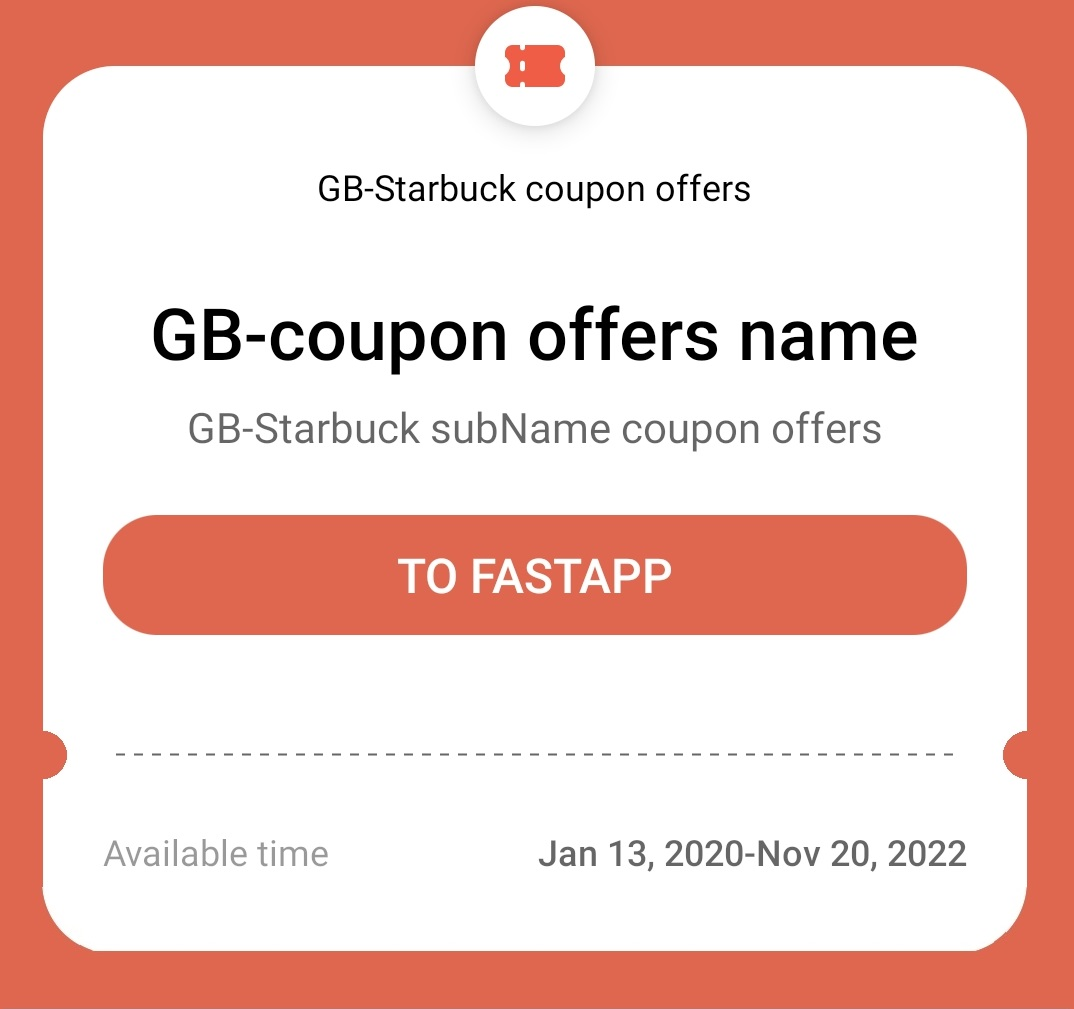

Button
For details about the configuration for displaying a button, please refer to Button Redirection Configuration. After a user taps the button to use the coupon, the user can be redirected to an app, HTML5 page, or a quick app.

UI effect:

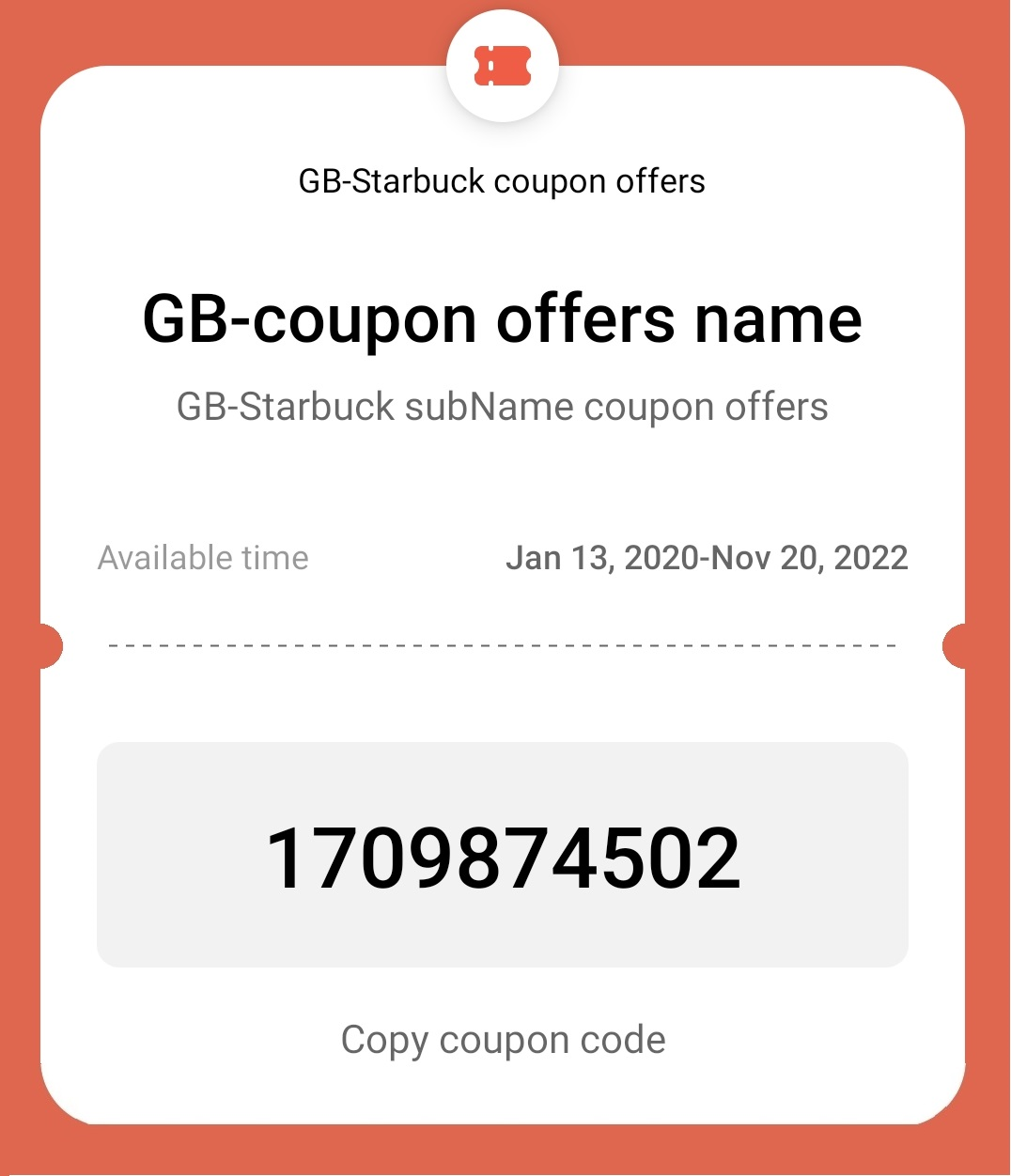

Coupon code

The following configuration is for displaying a coupon code:

Collapse
Word wrap
Dark theme
Copy code
{
    "commonFields": [
        {
            "key": "use_type",
            "value": "3"
        }
    ],
    "barCode": {
        "text": "",
        "type": "",
        "value": "1709874502",
        "encoding": "UTF-8"
    }
}

UI effect:

Click to enlarge

Implementation

Claiming Passes

Expand

Scenario	Integration Mode	Implementation	Procedure
Coupons	Claiming passes by web page, SMS message, email, or app	Integrating the Add to HUAWEI Wallet Button to Your Web Page to Claim a Pass	Push the pass model to the Huawei server. Use keys to encrypt an instance as a JWE and push the JWE to users. NOTE Model: common fields for users, such as logo and merchantName. Instance: user-specific field information, for example, cardNumber. If the instance and model have a same field, the field value in the instance overwrites that in the model.
		Adding a Deep Link to an SMS Message or Email to Claim a Pass
		Pushing JWE Data to the Huawei Server After Your App Is Integrated with the Wallet SDK
		Adding a Button for Claiming Passes in Your App NOTE The pass-adding page in HUAWEI Wallet is displayed even if the user does not sign in with a HUAWEI ID.

The development scenario description uses the model and instance of a loyalty card as an example. You can customize the model and instance based on your needs.

Pushing model information to the Huawei server

NOTE

For details about the API, please refer to Creating an Offer Model.

For details about the HwWalletObject field definition, please refer to Definition.

For details about the pass claiming process, please refer to Adding a Pass, which takes the loyalty card as an example. You can configure the model class and API definition based on the sample code before pushing your coupon model to the Huawei server.

Collapse
Word wrap
Dark theme
Copy code
HwWalletObject hwWalletObject = new HwWalletObject();
hwWalletObject.setOrganizationName("xxx");
// Model ID, which is unique.
hwWalletObject.setPassStyleIdentifier("offer001");
// Service ID that you set when applying for the Wallet Kit service.
hwWalletObject.setPassTypeIdentifier("hwpass.offer.merchant");

Fields fields = new Fields();
fields.setCountryCode("CN");

// Geofence information.
List<Location> locationList = new ArrayList<>();
Location location = new Location();
location.setLongitude("113.0679603815");
location.setLatitude("25.6592051284");
locationList.add(location);
fields.setLocationList(locationList);

List<ValueObject> commonFields = new ArrayList<>();
ValueObject name = new ValueObject();
name.setKey("name");
name.setValue("50%-Off Coupon");
commonFields.add(name);

ValueObject subName = new ValueObject();
subName.setKey("subName");
subName.setValue("XXX Company");
commonFields.add(subName);
// URI of your logo.
ValueObject logo = new ValueObject();
logo.setKey("logo");
logo.setValue("https://www.xxx.com/.../logo.png");
commonFields.add(logo);

// Merchant name. The following provides sample code for defining merchant names in multiple languages. You can specify a random string here, for example, merchantNameI18N, for obtaining the merchant name in the corresponding language from the value of Localized.
ValueObject merchantName = new ValueObject();
merchantName.setKey("merchantName");
merchantName.setValue("Some merchant name");
merchantName.setLocalizedValue("merchantNameI18N");
commonFields.add(merchantName);
fields.setCommonFields(commonFields);

// Background color.
List<ValueObject> appendFields = new ArrayList<>();
ValueObject backgroundColor = new ValueObject();
backgroundColor.setKey("backgroundColor");
backgroundColor.setValue("#1C2635");
appendFields.add(backgroundColor);

ValueObject details = new ValueObject();
details.setKey("details");
details.setValue("Detail information of this coupon.");
appendFields.add(details);

ValueObject declaration = new ValueObject();
declaration.setKey("declaration");
declaration.setValue("Coupon disclaimer provided by merchant.");
appendFields.add(declaration);
// Promotion image.
List<ValueObject> imageList = new ArrayList<>();
ValueObject imagePic = new ValueObject();
imagePic.setKey("image1");
imagePic.setValue("https://www.xxx.com/.../banner.png");
imageList.add(imagePic);
fields.setImageList(imageList);

List<Localized> localizedList = new ArrayList<>();
// Merchant name in Chinese, which can be obtained based on the previously specified string merchantNameI18N.
Localized merchantNameChinese = new Localized();
merchantNameChinese.setKey("merchantNameI18N");
merchantNameChinese.setLanguage("zh-CN");
merchantNameChinese.setValue("Merchant name in Chinese");
localizedList.add(merchantNameChinese);
fields.setLocalized(localizedList);

hwWalletObject.setFields(fields);

Push the model to the Huawei server through the following RESTful API using POST:

Collapse
Word wrap
Dark theme
Copy code
POST
https://{walletkit_server_url}/hmspass/v1/offer/model

Customizing an instance

For details about the API, please refer to Adding an Offer Instance.

Collapse
Word wrap
Dark theme
Copy code
HwWalletObject hwWalletObject = new HwWalletObject();
// Instance ID unique to the associated model.
hwWalletObject.setSerialNumber("854687156");
// Model ID, which is unique.
hwWalletObject.setPassStyleIdentifier("Loyalty001");
hwWalletObject.setOrganizationPassId("1231");
// Service ID that you set when applying for the Wallet Kit service.
hwWalletObject.setPassTypeIdentifier("hwpass.loyalty.merchant");

Fields fields = new Fields();
// Status. Only a pass within the validity period can be pushed to the Huawei server.
Status status = new Status();
status.setState("active");
status.setEffectTime("2019-11-11T00:00:00.000Z");
status.setExpireTime("2029-11-10T23:59:59.999Z");
fields.setStatus(status);

// Barcode or QR code.
BarCode barCode = new BarCode();
barCode.setText("Refresh every ten minutes");
// Set setType to codabar or qrCode.
barCode.setType("codabar");
barCode.setValue("829383819844342342");
fields.setBarCode(barCode);

hwWalletObject.setFields(fields);

Updating Passes

For details about how to update passes, please refer to Calling Huawei Server APIs to Update a Pass.

The URL of the API for updating a coupon model is as follows (change the API URL in the sample code to this one):

Collapse
Word wrap
Dark theme
Copy code
https://xxx/hmspass/v1/offer/model/{modelId}

The URL of the API for updating a coupon instance is as follows (change the API URL in the sample code to this one):

Collapse
Word wrap
Dark theme
Copy code
https://xxx/hmspass/v1/offer/instance/{instanceId}

Processing Expired Passes

An expired pass is marked with a specified expiration icon on the pass details page in HUAWEI Wallet. A pass is moved to the expired passes part as long as it meets one of the following conditions:

The time is within 24 hours after reaching the expiration time specified by PassObject.Status.expireTime for the pass.

The value of PassObject.Status.state is expired, inactive, or completed for the pass.

Sending Geofence Notifications

Currently, only passes added using a RESTful API support geofence notifications.

Geofencing

To enable the geofence notification function for a pass based on Huawei's location capability, you can set LocationList in the model of the pass using a RESTful API. A user with this pass will receive a notification when coming within a 200-meter radius of a specified location.

NOTE

A maximum of five geofence notifications can be sent for each type of passes every day.

Adding locations using a RESTful API

You can set up to 3 locations into LocationList when customizing model information.

Collapse
Word wrap
Dark theme
Copy code
HwWalletObject hwWalletObject = new HwWalletObject();
...
// Geofence information.
List<Location> locationList = new ArrayList<>();
Location location = new Location();
location.setLongitude("113.0679603815");
location.setLatitude("25.6592051284");
locationList.add(location);
fields.setLocationList(locationList);
...
hwWalletObject.setFields(fields);

Linking to Saved Passes

HUAWEI Wallet provides two methods for a user to view a saved pass.

Viewing the pass in a browser

Collapse
Word wrap
Dark theme
Copy code
https://{walletkit_website_url}/walletkit/consumer/pass/instance?issuerId=xxx&instanceId=xxxx

You need to replace {walletkit_website_url} in the preceding URL based on the region to which the website belongs.

Expand

Site	Domain Name
China	walletpass-drcn.cloud.huawei.com
Russia	walletpass-drru.cloud.huawei.com
Asia, Africa, and Latin America	walletpass-dra.cloud.huawei.com
Europe	walletpass-dre.cloud.huawei.com

NOTE

If HUAWEI Wallet is installed on the user's mobile phone and the link is loaded via an intent, a dialog box will be displayed for the user to choose whether to load the link in HUAWEI Wallet or the browser.
instanceId: pass instance ID

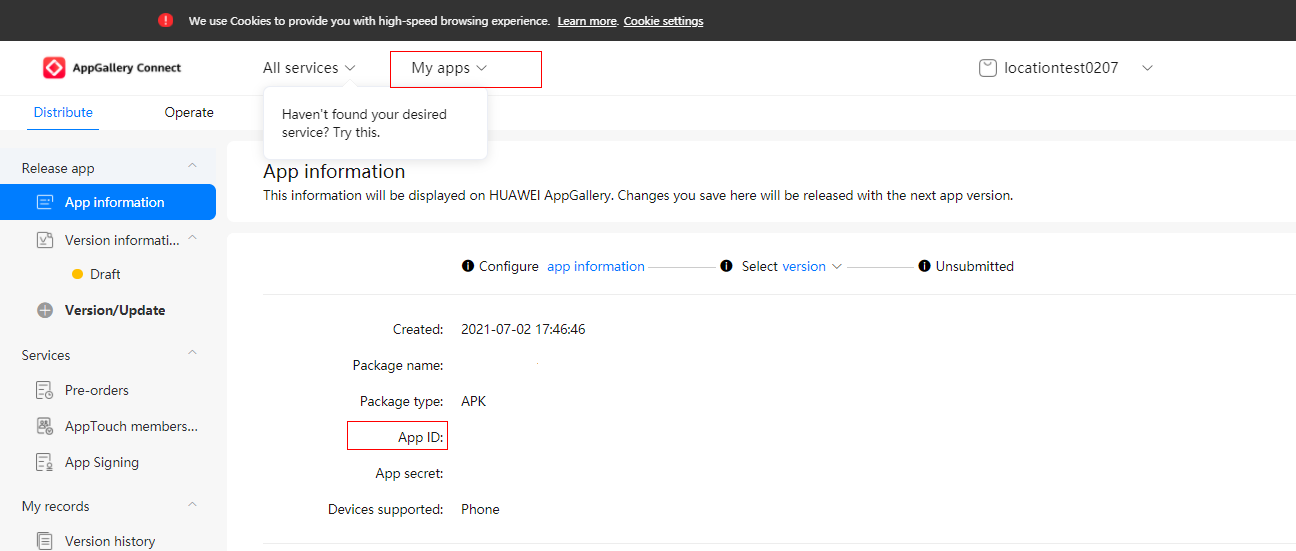

issuerId: app ID applied for on HUAWEI Developers, as shown in the following figure.

Viewing the pass on the pass details page in HUAWEI Wallet (This method can be used only when HUAWEI Wallet is installed.)
Collapse
Word wrap
Dark theme
Copy code
```
wallet://com.huawei.wallet/walletkit/consumer/pass/instance?issuerId=xxx&instanceId=xxxx
```

Sending Expiration Notifications

You can set PassObject.Status.expireTime to specify the expiration time of a coupon. HUAWEI Wallet will remind a user 24 hours in advance of the coupon expiration.

The reminder will be silent from 00:00 to 06:00. If the notification falls into this silent period, the reminder will be triggered 30 minutes before the silent period starts.
