Application Data Security

• In distributed scenarios, devices are classified into different security levels to ensure secure cross-device data transfer.
• Flowing data is classified into different levels, for instance, to determine if data can be transferred to common devices based on its sensitivity level, as varying degrees of sensitive data have distinct transfer restrictions. These classifications should be determined at the system level rather than the application level. Otherwise, system data can leak badly if developers do not understand level classifications well.

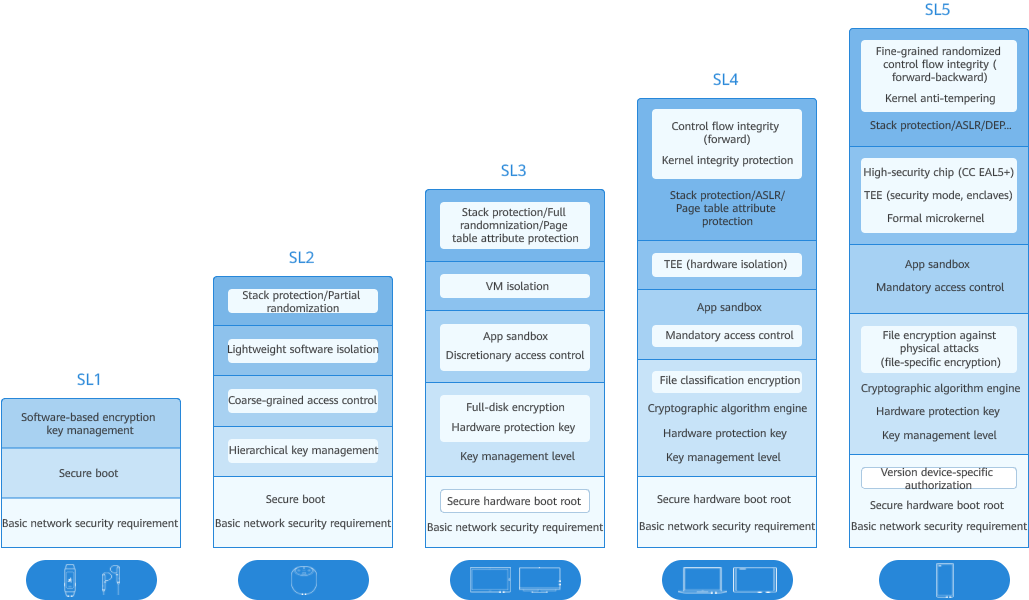

From SL1 to SL5, the security capability requirements corresponding to integrity protection, encryption and data protection, permission and access control, trusted execution environment, and vulnerability anti-exploitation are gradually improved.

Sensitive data classification helps you identify and classify data based on the sensitivity, value, and potential impact of data leakage. You need to understand different types of data and how they are used, classify the data, and develop appropriate security measures and controls based on the classification to protect the data and ensure compliance with relevant laws and standards. The following table illustrates the personal data classification.

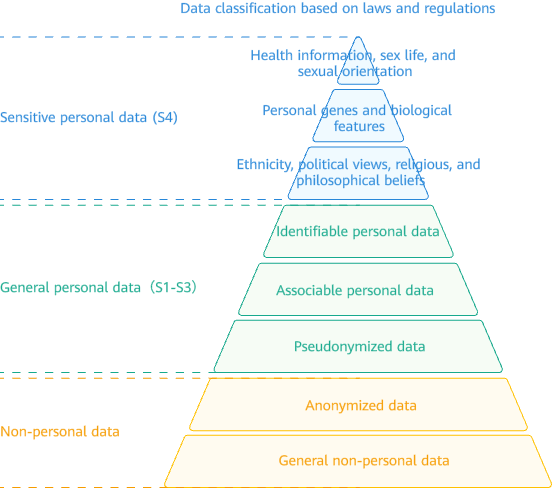

In addition to content-based data classification, you must comply with laws and regulations, such as the General Data Protection Regulation (GDPR) and Personal Information Protection Law (PIPL), to protect user privacy and data security. Figure 1 shows the data classification.

The data can be rated into four security levels: S1, S2, S3, and S4.

A higher data security label and level indicate stricter encryption and access control measures and higher data security.

In cross-device data sync, data access is controlled based on the device security level and data security labels. In principle, data can be synced only to the devices whose data security labels are not higher than the device's security level. The access control matrix is as follows:

The watch is an SL1 device with a low security level. The database with data security label S1 can be synced with devices, but the databases with database labels S2 to S4 cannot.

getEl2Path(): void {
  let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
  context.area = contextConstant.AreaMode.EL2;
  let filePath = context.filesDir + '/health_data.txt';
  this.message = filePath;
}

getEl1Path(): void {
  let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
  context.area = contextConstant.AreaMode.EL1;
  let filePath = context.filesDir + '/health_data.txt';
  this.message = filePath;
}

[h2]Scenario Design

Health check data is classified as high-risk data based on data classification rules. Therefore, in a program design process, in addition to a protection measure of hierarchical data encryption, secondary encryption needs to be performed to enhance data security. Specifically, the data may be first encrypted once, and then the encrypted data is processed by using a hierarchical data encryption method. This is to improve data confidentiality and integrity and effectively prevent potential data leakage and unauthorized access. With such multi-level encryption measures, health check data can be stored and transmitted more securely and reliably.

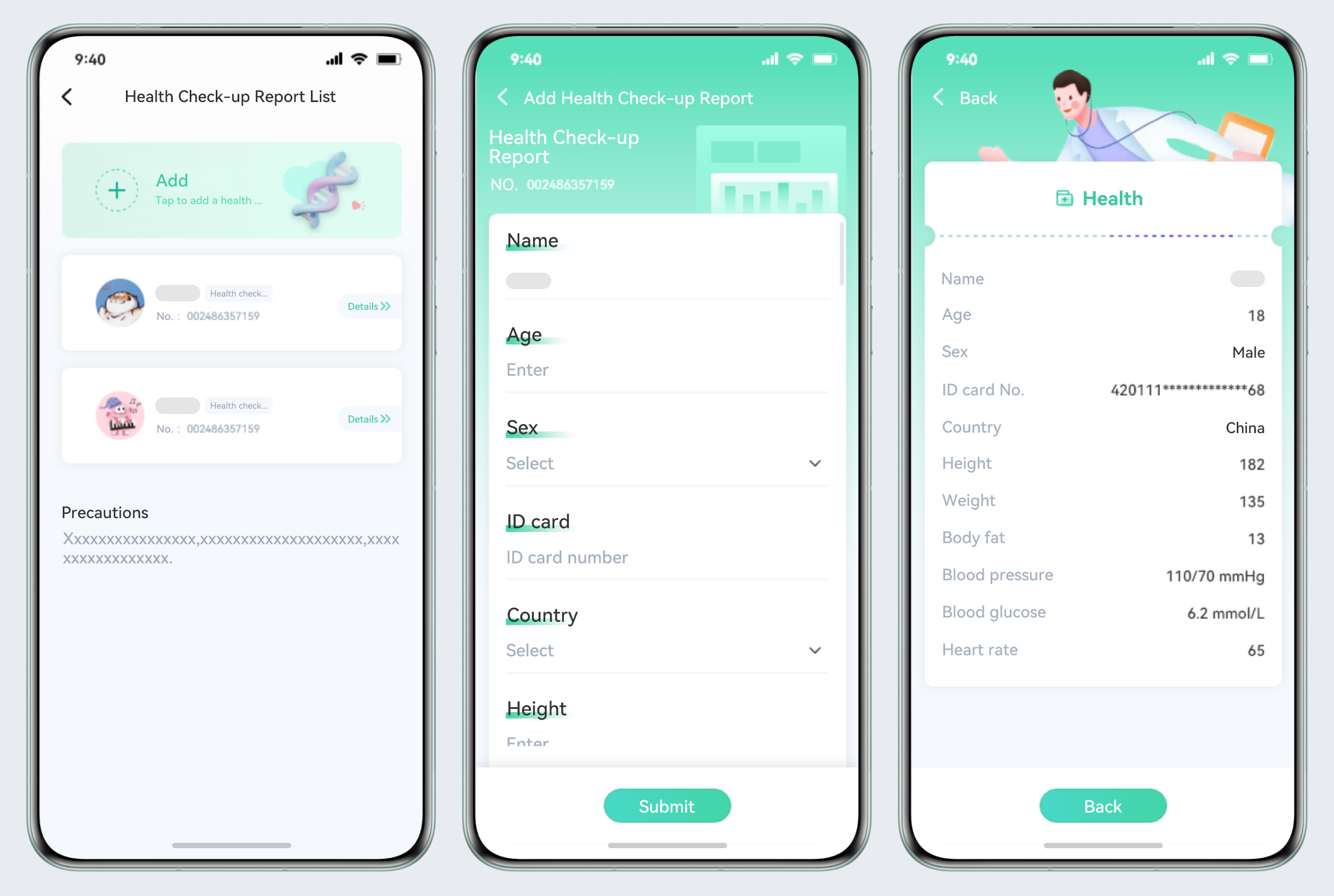

The program scenarios consist of the health checklist page, data entry page, and data details page, as shown in the following figure.

Figure 1 Scenario design diagram

In actual development, data encryption and decryption often coexist. This scenario consists of two sub-scenarios: data entry and data details. The following describes specific implementations of the two sub-scenarios respectively.

• Implementation of data recording

1. Tap the entry button on the list page to enter the data entry page.
2. Enter information on the data entry page and use the tag prompt character as the key to assemble the data into a JSON object.
3. Encrypt the entered information. Serialize the assembled JSON object into a string, convert the string into a byte array, and use HUKS APIs to encrypt the byte array to obtain the encrypted byte array.
4. Encrypt the data in hierarchical mode, and then use the fileio API to write the encrypted byte array to the hierarchically encrypted file.

• Implementation of data details

1. Tap a data item on the list page to go to the data details page. Use the params parameter of the pushUrl API to pass the name of the hierarchically encrypted file.
2. Decrypt the encrypted data. Call the fileio API to read the encrypted data based on the name of the hierarchically encrypted file transferred by params, and then call the HUKS API to decrypt the read byte array to obtain the decrypted byte array.
3. Display data details. Convert the decrypted byte array into a string, then into a JSON object, and display the JSON object on the page.

After obtaining the data path by referring to the code in Hierarchical Data Protection, read and write files as normal. The code is as follows:

function writeFile(filePath: string, data: string): void {
  try {
    let file = fileIo.openSync(filePath, fileIo.OpenMode.READ_WRITE | fileIo.OpenMode.CREATE);
    let writeLen = fileIo.writeSync(file.fd, data);
    hilog.info(0x0000, 'AppDataSecurity', 'The length of str is: ' + writeLen);
    fileIo.closeSync(file);
  } catch (error) {
    hilog.error(0x0000, 'AppDataSecurity', `writeFile error ${JSON.stringify(error)}`);
  }
}

function readFile(filePath: string): string {
  try {
    let file = fileIo.openSync(filePath, fileIo.OpenMode.READ_WRITE | fileIo.OpenMode.CREATE);
    let arrayBuffer = new ArrayBuffer(1024);

    class Option {
      public offset: number = 0;
      public length: number = 0;
    }

    let option = new Option();
    option.length = arrayBuffer.byteLength;
    let readLen = fileIo.readSync(file.fd, arrayBuffer, option);
    let buf = buffer.from(arrayBuffer, 0, readLen);
    hilog.info(0x0000, 'AppDataSecurity', `The length of of file: ${readLen}`);
    fileIo.closeSync(file);
    return buf.toString();
  } catch (error) {
    hilog.error(0x0000, 'AppDataSecurity', `readFile error ${JSON.stringify(error)}`);
  }
  return '';
}

• Data encryption/decryption

Before using HUKS, configure the specifications of the encryption algorithm. In this case, the AES algorithm with the key length of 128 is selected. Before using the crypto algorithms, generate the algorithm key. The following shows the code for algorithm configuration and algorithm key generation.

The algorithm type HUKS_ALG_AES, key size, and key usage must be specified in the configuration function for generating the algorithm key.

function GetAesGenerateProperties(): Array<huks.HuksParam> {
  let properties: Array<huks.HuksParam> = [{
    tag: huks.HuksTag.HUKS_TAG_ALGORITHM,
    value: huks.HuksKeyAlg.HUKS_ALG_AES
  }, {
    tag: huks.HuksTag.HUKS_TAG_KEY_SIZE,
    value: huks.HuksKeySize.HUKS_AES_KEY_SIZE_128
  }, {
    tag: huks.HuksTag.HUKS_TAG_PURPOSE,
    value: huks.HuksKeyPurpose.HUKS_KEY_PURPOSE_ENCRYPT |
    huks.HuksKeyPurpose.HUKS_KEY_PURPOSE_DECRYPT
  }];
  return properties;
}

The algorithm specifications configured for the encryption function must be the same as those for generating the algorithm key.

HUKS_TAG_PADDING has three padding modes:

• NoPadding: No padding.
• PKCS5: pads a block cipher with a block size of 8 bytes.
• PKCS7: pads any block size from 1 to 255 bytes. The PKCS7 padding scheme is the same as that of PKCS5.

HUKS_TAG_BLOCK_MODE has seven block modes. For CBC, CTR, OFB, and CFB modes, only HUKS_TAG_IV is used. For GCM and CCM modes, set HUKS_TAG_NONCE, HUKS_TAG_ASSOCIATED_DATA, and HUKS_TAG_IV.

function GetAesEncryptProperties(): Array<huks.HuksParam> {
  let properties: Array<huks.HuksParam> = [{
    tag: huks.HuksTag.HUKS_TAG_ALGORITHM,
    value: huks.HuksKeyAlg.HUKS_ALG_AES
  }, {
    tag: huks.HuksTag.HUKS_TAG_KEY_SIZE,
    value: huks.HuksKeySize.HUKS_AES_KEY_SIZE_128
  }, {
    tag: huks.HuksTag.HUKS_TAG_PURPOSE,
    value: huks.HuksKeyPurpose.HUKS_KEY_PURPOSE_ENCRYPT
  }, {
    tag: huks.HuksTag.HUKS_TAG_PADDING,
    value: huks.HuksKeyPadding.HUKS_PADDING_PKCS7
  }, {
    tag: huks.HuksTag.HUKS_TAG_BLOCK_MODE,
    value: huks.HuksCipherMode.HUKS_MODE_CBC
  }, {
    tag: huks.HuksTag.HUKS_TAG_IV,
    value: StringToUint8Array(IV)
  }];
  return properties;
}

The algorithm specifications of the decryption function must be the same as those of the encryption algorithm, but the key usage must be set to decryption.

function GetAesDecryptProperties(): Array<huks.HuksParam> {
  let properties: Array<huks.HuksParam> = [{
    tag: huks.HuksTag.HUKS_TAG_ALGORITHM,
    value: huks.HuksKeyAlg.HUKS_ALG_AES
  }, {
    tag: huks.HuksTag.HUKS_TAG_KEY_SIZE,
    value: huks.HuksKeySize.HUKS_AES_KEY_SIZE_128
  }, {
    tag: huks.HuksTag.HUKS_TAG_PURPOSE,
    value: huks.HuksKeyPurpose.HUKS_KEY_PURPOSE_DECRYPT
  }, {
    tag: huks.HuksTag.HUKS_TAG_PADDING,
    value: huks.HuksKeyPadding.HUKS_PADDING_PKCS7
  }, {
    tag: huks.HuksTag.HUKS_TAG_BLOCK_MODE,
    value: huks.HuksCipherMode.HUKS_MODE_CBC
  }, {
    tag: huks.HuksTag.HUKS_TAG_IV,
    value: StringToUint8Array(IV)
  }];
  return properties;
}

After the preceding configuration is complete, call the function for generating the algorithm key.

async function GenerateAesKey(): Promise<void> {
  let genProperties = GetAesGenerateProperties();
  let options: huks.HuksOptions = {
    properties: genProperties
  };

  await huks.generateKeyItem(aesKeyAlias, options)
    .then((data) => {
      hilog.info(0x0000, 'AppDataSecurity', `promise: generate AES Key success, data = ${JSON.stringify(data)}`);
    }).catch((error: Error) => {
      hilog.error(0x0000, 'AppDataSecurity', `promise: generate AES Key failed, ${JSON.stringify(error)}`);
    })
}

After the algorithm key is generated, encryption and decryption can be performed. During encryption and decryption, obtain the corresponding configuration and then call initSession and finishSession to complete the operation.

async function EncryptData(): Promise<void> {
  let encryptProperties = GetAesEncryptProperties();
  let options: huks.HuksOptions = {
    properties: encryptProperties,
    inData: StringToUint8Array(plainText)
  };

  await huks.initSession(aesKeyAlias, options)
    .then((data) => {
      handle = data.handle;
    }).catch((error: Error) => {
      hilog.error(0x0000, 'AppDataSecurity', `promise: init EncryptData failed, ${JSON.stringify(error)}`);
    })

  await huks.finishSession(handle, options)
    .then((data) => {
      hilog.info(0x0000, 'AppDataSecurity',
        `promise: encrypt data success, data is ` + Uint8ArrayToString(data.outData as Uint8Array));
      cipherData = data.outData as Uint8Array;
    }).catch((error: Error) => {
      hilog.error(0x0000, 'AppDataSecurity', `promise: encrypt data failed, ${JSON.stringify(error)}`);
    })
}

async function DecryptData(): Promise<void> {
  let decryptOptions = GetAesDecryptProperties()
  let options: huks.HuksOptions = {
    properties: decryptOptions,
    inData: cipherData
  };

  await huks.initSession(aesKeyAlias, options)
    .then((data) => {
      handle = data.handle;
    }).catch((error: Error) => {
      hilog.error(0x0000, 'AppDataSecurity', `promise: init DecryptData failed, ${JSON.stringify(error)}`);
    })

  await huks.finishSession(handle, options)
    .then((data) => {
      hilog.info(0x0000, 'AppDataSecurity',
        `promise: decrypt data success, data is ` + Uint8ArrayToString(data.outData as Uint8Array));
    }).catch((error: Error) => {
      hilog.error(0x0000, 'AppDataSecurity', `promise: decrypt data failed, ${JSON.stringify(error)}`);
    })
}

Sensitive data exists in the health check report. Therefore, secondary encryption and hierarchical encryption are required. The decryption process is the reverse of the encryption process. The data encrypted in hierarchical mode is read first, and then decrypted. When sensitive data of different security levels is involved, the data can be encapsulated and serialized by security level to prevent high-security data from being leaked to low-security devices during data flow.

To facilitate log printing and output, Base64 transcoding is performed on the encrypted data. This step can be omitted during application development.
